Application

  • Civic and public sector.
  • Residential and commercial.
  • Schools and education.

Description

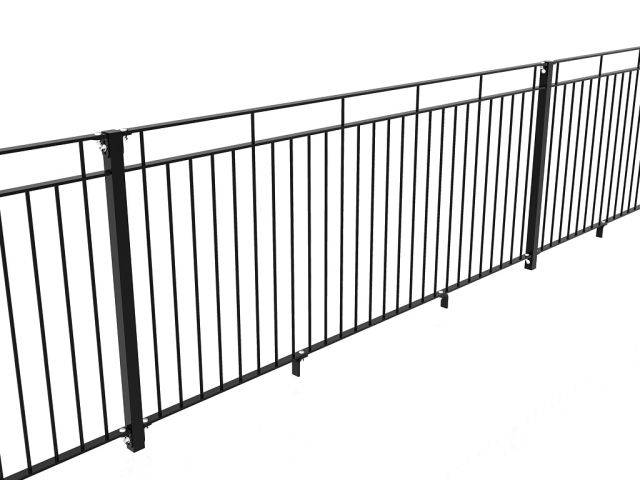

Bushberry Railings are a stylish variant to Zaun’s vertical bar railing system. By adding a mid-rail, they are able to reduce the number of vertical bars to the upper section of the panel. It provides a strong and solution to property demarcation and is often installed in residential settings, on housing estates or around commercial properties. Swing gates to match the railings can also be manufactured to the width required.


Features and benefits:

  • Attractive design.
  • Swing gates also available to match railings.
  • Variable vertical wire density.
  • Distinctive railing system.
  • Traditional design.
  • Strong and robust.

General information

Finish

Galvanized

Powder-coated

Material

Steel

Width

2700 mm

Height

1000 mm

1200 mm

Uniclass

Pr_25_71_50_15 Carbon steel framed vertical section panelsPrimary

CAWS

Q40/30 Proprietary fencing

Q40/340 Steel vertical bar fencing

Q40/430 Proprietary fencing

Specification data - Carbon steel framed vertical section panels

Standards

To BS1722, ISO 12944.

Dimensions

-

Height

1000 mm.

1200 mm.

Manufacturer guidance

Additional heights are available upon request.

Frame

-

Section

50 x 50 mm square hollow section (SHS) posts.

Guidance for specification option:

Posts spaced at 2760 mm centres.

Finish as delivered

-

Worked finish

Galvanized and polyester powder coated.

Gates

50 x 50 mm square hollow section (SHS) frame, Bushberry style railing infill, slide latch, rubber bump stop and two gate posts.

Guidance for specification option:

Vehicular access gates are also supplied with drop bolts.

Accessories/ Other requirements

Not required.

Pedestrian gates.

Guidance for specification option:

Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements.

Vehicular gates.

Guidance for specification option:

Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.

Bar diameter

12 mm.

Guidance for specification option:

Dependant on height.

Fixings

Cup square bolts & shear nuts.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom
