BVRDACO Amplifier Line Monitor Automatic Changeover

Verified by manufacturer 4 months ago

Baldwin Boxall Communications Ltd

Amplifier/line monitor with automatic amplifier changeover ability.

Jump to:
BOS
+44 (0)1892 664422 Website

Application

Designed to be DIN rail mounted.

Description

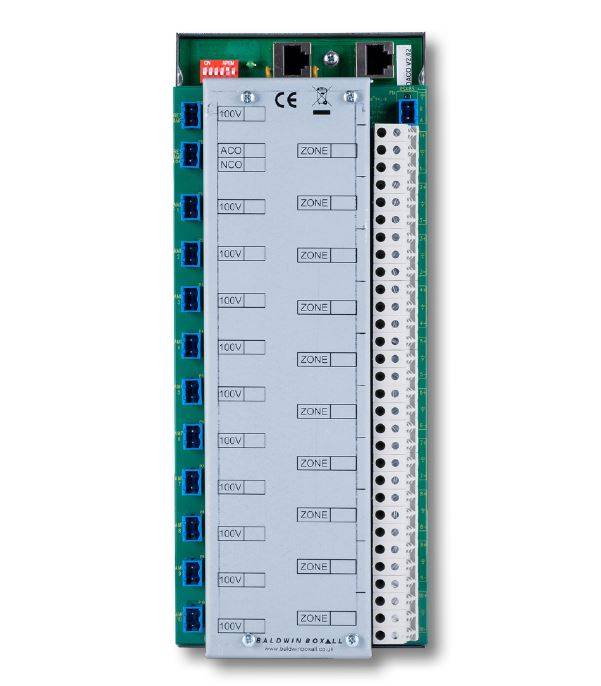

The BVRDADCO is an amplifier/line monitor with automatic amplifier changeover ability.


Features and benefits:

  • Complies to EN54 16.
  • Complies to BS 5839-Part 8.
  • DIN rail mounted CANBUS module.
  • Seven year warranty.
  • 10 x BEL1 line surveillance with earth leakage fault detection.
  • 11 x amplifier surveillance (10 with automatic amplifier changeover).
  • Fault warnings are displayed on the voice alarm rack.
  • Dimensions (H x W x D) 272 x 110 x 60 mm.

General information

Color

Grey

Green

Blue

Finish

Guidance for specification option:

Zintech.

Material

Steel

Shape

Rectangle

Length

272 mm

Width

110 mm

Height

60 mm

Warranty description

Seven year

Uniclass

Pr_75_75_94_97 Voice alarm power amplifiersPrimary

CAWS

W53/115 Emergency voice communication systems

Specification data - Voice alarm power amplifiers

Standard

To EN 54 16 and BS 5839: part 8.

Amplifier type

Amplifier line monitor automatic changeover.

Enclosure

-

Material

Zintec steel.

Finish

Zintec.

Colour

Grey.

Ingress protection (minimum)

IP30.

Guidance for specification option:

As a system.

Mounting method

DIN rail.

Height

60 mm.

Length

272 mm.

Width

110 mm.

Life expectancy

15 year.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
