C5 Coated Suspension Profiles - Corrosion Resistant Profiles

Verified by manufacturer 6 months ago

Protektor Group UK

Coated profiles designed to meet the requirements for the suspension and support of boards in high humidity areas such as swimming pools and wet rooms.

Jump to:
07769270193 Website

Application

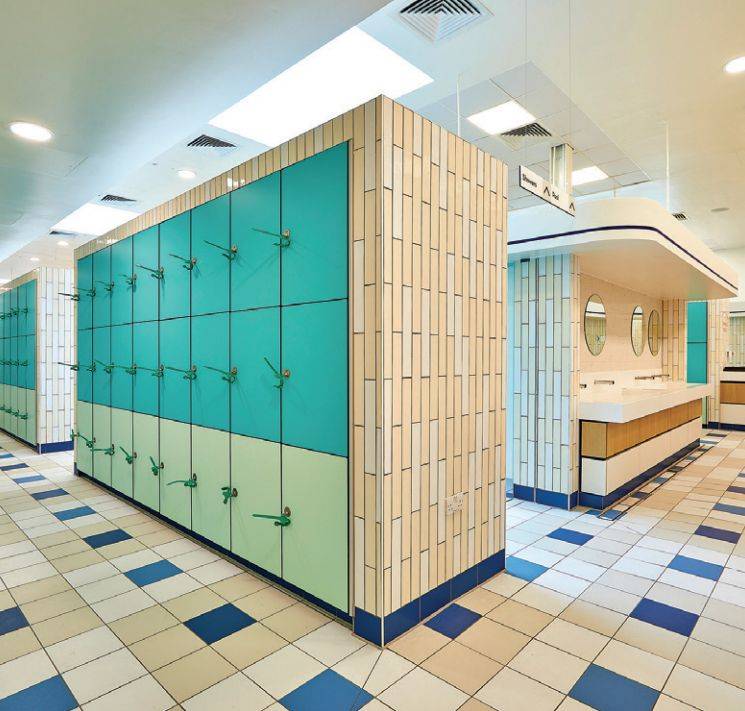

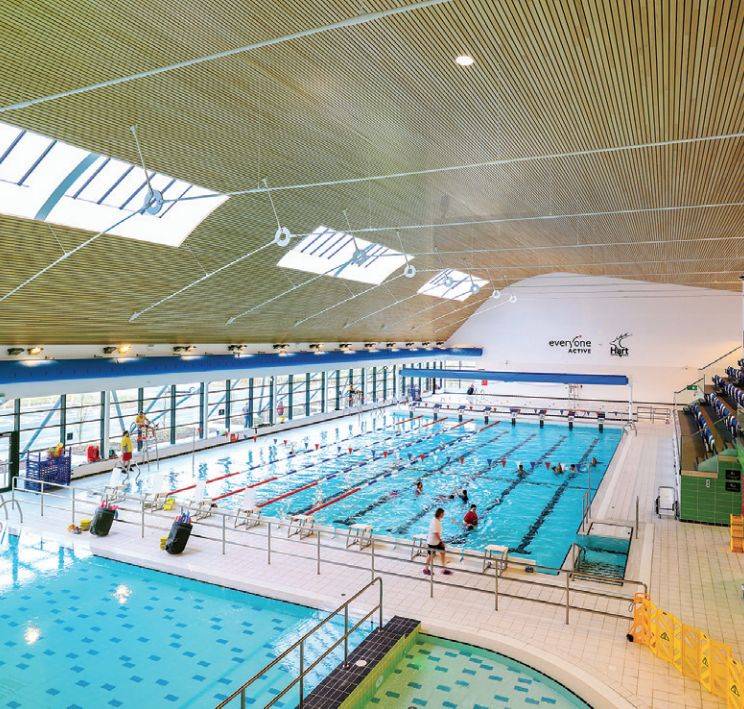

Coated profiles designed to meet the requirements for the suspension and support of boards in high humidity areas such as swimming pools and wet rooms.

ISO 12944 classification C5: Industrial areas with high humidity and aggressive atmospheres.

Description

Coated profiles designed to meet the requirements for the suspension and support of boards in high humidity areas such as swimming pools and wet rooms.


C5 coating meets with the requirements of ISO 12944 and provides a high level of anti-corrosion resistance.


A comprehensive range of C5 coated drywall profiles for partitions, wall lining and bespoke applications are also available; consult manufacturer for details.

General information

Color

Silver

Black

Guidance for specification option:

Requires optional spray paint.

Finish

Galvanized

Material

Carbon steel

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_20_85_32_14 Carbon steel dry lining framesPrimary

CAWS

K10/220 Proprietary suspended ceiling system

K10/50 Suspended ceiling system on metal framing

Specification data - Carbon steel dry lining frames

Material

Galvanized steel.

Component types

-

Ceilings and soffits

C5 C ceiling profiles, 60 x 0.6 mm.

C5 U perimeter profiles.

C5 top hat profiles, 10 x 15 x 80 mm.

C5 UA50 profiles.

Manufacturer guidance

See also Connectors and Accessories below.

Consult manufacturer for further details.

Ceiling hangers

C5 direct fix hangers, 125 mm.

C5 direct fix hangers, 200 mm.

C5 CD Nonius hangers.

C5 click fix profile clips.

C5 CD direct fix adjustable hangers.

C5 hangers, 190 mm.

Manufacturer guidance

See Accessories below.

Consult manufacturer for further details.

Connectors

C5 profile connectors.

C5 cross connectors.

C5 safety cross connectors.

C5 quick cross connectors.

Guidance for specification option:

For use with UA50 profile.

Fixings

C5 jack point pan head screws, 13 x 4.2 mm.

C5 pan head screws, 13 x 4.2 mm.

C5 self-drilling screws, 19 x 6.3 mm.

C5 ceiling dowels with nail head, 44 x 6 mm.

Accessories

C5 adjusting clamps.

C5 adjusting strips for Nonius hangers.

Guidance for specification option:

Insert requirements.

Available in various lengths (100–1000 mm in 100 mm increments; 1.2, 1.4, 1.7, 2.0 and 2.5 m).

C5 spray paint, black.
