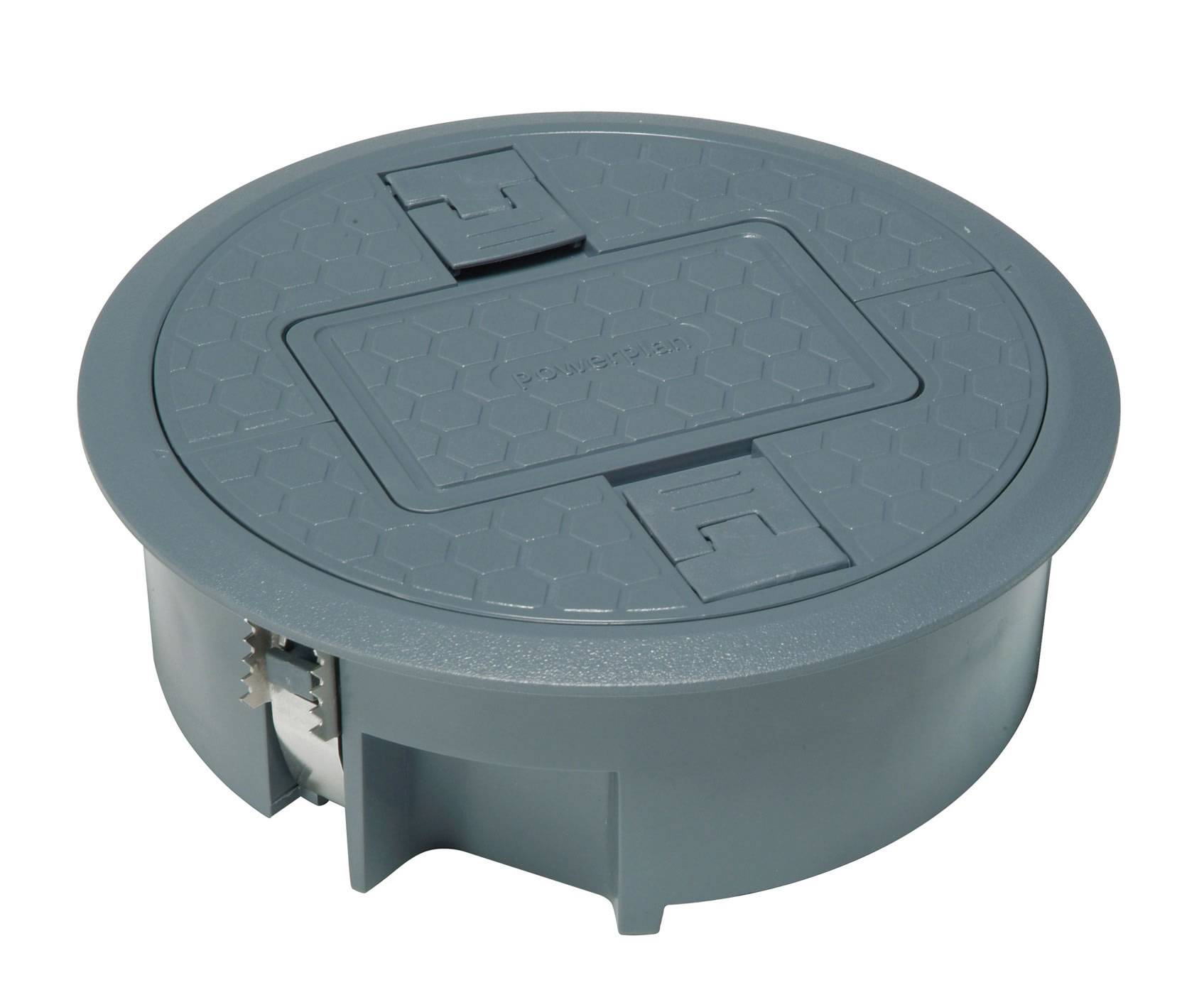

Cable Hive

Verified by manufacturer 1 month ago

CMD Ltd

An alternative to floor boxes and slab boxes to take underfloor power into the office.

Jump to:
BOS
+44 (0)1709 829511 Website

Application

For taking underfloor power through the floor and up into the office.

Description

An alternative to floor boxes and slab boxes.


Features and benefits:

  • Split lid with integral foam insert for securing cables.
  • Choice of hard or soft foam.
  • 'Push fit' fast installation with our unique self latching mechanism.
  • Installed in less than 5 seconds – removed in less than 10 seconds (no tools required for fitting).
  • 127 mm (also available in 210 mm)
  • Self-closing lifting handles – excellent safety when installed.
  • Manufactured from Polycarbonate ABS in standard grey (RAL7031).
  • Discreet automatic closing handles facilitate clamp lifting and retention.
  • Fasteners will work on carpet and panel thickness of 5 mm and upwards.
  • Split lid option - integral foam insert for secure cable grip.
  • Accessible lid with retention cable.
  • Unique self-latching mechanism.
  • Accepts up to 2 x 40 mm flexible conduits.
  • Interlocking clamp top.
  • Cut-out dimensions, Ø127mm -0/+1

General information

Color

Grey

Finish

Grey

Material

Polycarbonate ABS

Shape

Circle

Length

140 mm

Width

140 mm

Height

45 mm

Warranty description

One year

Uniclass

Pr_60_70_48_66 Power busbar trunkingPrimary

CAWS

V90/353 Cable trunking and cable ducting for floor mounting

V90/353 Cable trunking and cable ducting for floor mounting

Specification data - Power busbar trunking

Colour

Standard grey.

Guidance for specification option:

(RAL 7031).

Casework lid finish

Hard Foam.

Soft Foam.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Recyclability

100%

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

3

IFC

IFC2X3

2
