Application

Suitable to withstand rigorous commercial use.

Description

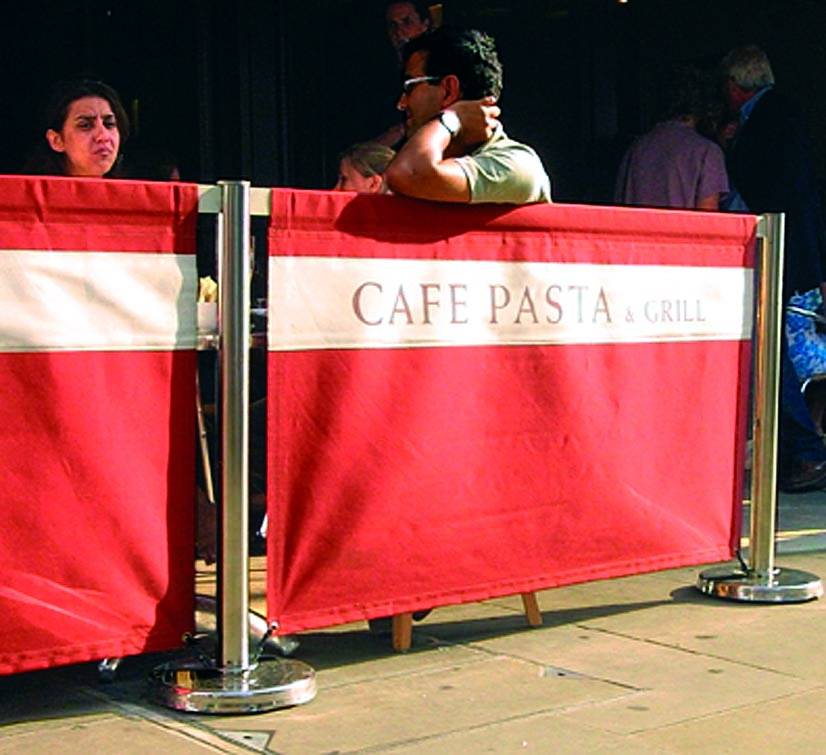

SmartScreens are high-quality and designed and installed to suit specific needs. A variety of posts, panels and branding options are available.


All SmartScreens can be installed in ground sockets, providing a clean finish to any alfresco area and ensuring the space is maximised. While ground sockets make the SmartScreens feel permanent, all equipment can be removed and sockets covered over easily, should it be a requirement for the space to be flexible. Ground sockets can be installed on a variety of surfaces, including in or along decking and up steps.


Features and benefits:

  • Suitable for branding and advertising.
  • Stable in winds up to Storm Force 12.
  • A wide range of materials and customisable options.
  • Portable or permanently fixed options.
  • Canvas panels can be branded with simple logos to promote businesses or a brand.
  • Mesh and PVC Screens can be fully printed - suitable for complex designs or temporary promotions.
  • Made from 316 marine-grade Stainless Steel, SmartScreen posts are built to last and can withstand rigorous commercial use.
  • SmartScreens come in three standard heights: 97cm, 160cm and 220cm.
  • Posts can also be powder-coated any RAL colour to give a unique look and complement the brand.
  • When SmartScreens are likely to be removed frequently, special “self-closing” ground sockets can be installed. These come with a hinged lid which falls shut automatically when the post is removed, ensuring there are no trip hazards.
  • The posts can also be locked in place with a simple tab and padlock, ensuring extra security.

General information

Color

Blue

Pink

Purple

Red

Orange

Show more

Finish

Polished

Material

Stainless steel

Polyester

Acrylic

PVC

Shape

Rectangle

Length

Bespoke

2000 mm

Guidance for specification option:

Maximum recommended length.

Height

970 mm

1600 mm

2200 mm

Uniclass

Ss_25_12_65_65 Panel partition systemsPrimary

CAWS

K10/125 Metal stud partition system

K30/110 Relocatable partition system

K30/130 Relocatable partition system

K30/10 Relocatable partition system

Specification data - Panel partition systems

System performance

Withstands rigorous commercial use.

Panel partitioning

Polyester and acrylic canvas.

Reinforced and clearview PVC.

Breathable mesh.

Fasteners

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

System accessories

Not required.

'Self closing' ground sockets.

Samples required

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Panel

Guidance for specification option:

  • Consult manufacturers literature and insert requirements.
  • Canvas panels can also be branded with simple logos to promote a business or a brand.
  • Mesh and PVC Screens can be fully printed - suitable for complex designs or temporary promotions.

Manufacturer guidance

Canvas panel colours.

Panel length

Guidance for specification option:

  • Consult manufacturer and insert requirements.
  • Maximum recommended length 2000 mm.

Material

316 marine-grade stainless steel.

Manufacturer guidance

Post material.

Colour

Guidance for specification option:

  • Consult manufacturer and insert requirements.
  • Posts can also be powder-coated almost any colour to give a unique look and complement the brand.

Manufacturer guidance

Post colour.

Post height

970 mm.

1600 mm.

2200 mm.

Base

Ø330 mm, 25 kg.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

United Kingdom

Recyclability

All metal parts can be recycled
