Application

  • Suitable for removable bollard applications, popular for historic sites.
  • Suitable for aiding the visually impaired when installed over 1000 mm high.

Description

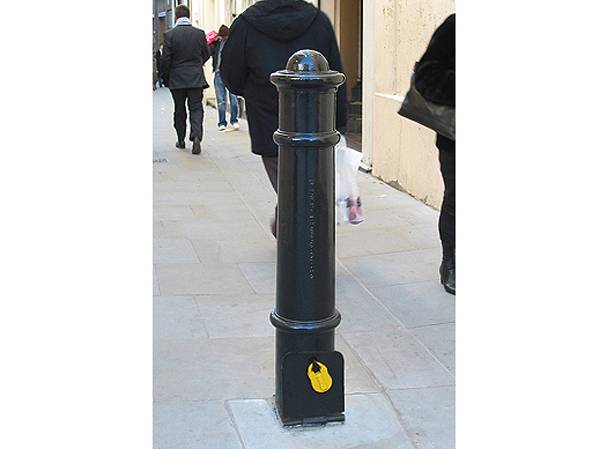

Cannon inspired bollard is popular for historic sites and installed over 1000 mm high; the bollard can aid the visually impaired and assist in meeting the requirements of the Disability Discrimination Act (DDA). It also complies with BS 8300.


Features and benefits:

  • Available as a removable bollard in cast aluminium.
  • Can be housed in either a hinged steel socket (to be secured with a padlock) or the F1 socket, which provides a flat, flush finish when not in use.

General information

Color

Black

Yellow

White

Red

Finish

Primed

Material

Aluminium

Shape

Circle

Guidance for specification option:

Cylindrical.

Length

1140 mm

Width

240 mm

Warranty description

One year

Uniclass

Pr_20_76_08_02 Aluminium alloy bollardsPrimary

Product range

Bollards

Specification data - Aluminium alloy bollards

Dimensions

-

Size and profile

210 mm diameter.

Height

1140 mm.

Length below ground

320 mm.

Top profile

Conical, rounded.

Base

Flat, removable.

Finishes

-

Applied finish

Primed.

Guidance for specification option:

Top coats are preferably applied on site after installation on primed products.

Colour

Black.

Accessories

Not required.

CHNS.

Guidance for specification option:

Steel spiked chain link, galvanized.

CHNP.

Guidance for specification option:

Steel plain chain link, galvanized.

Crest/ logo personalization.

Guidance for specification option:

Insert requirements.

Drilled to accept rails/ post and rail system.

EBAB.

Guidance for specification option:

Steel M10 eye bolt, bright zinc plated.

Highlighted rings.

Guidance for specification option:

Insert requirements.

Sign.

Guidance for specification option:

Insert requirements.

SLNK.

Guidance for specification option:

Steel split link, galvanized.

TAPE C.

Guidance for specification option:

Red/ white chevron reflective tape.

TAPE R.

Guidance for specification option:

Red reflective tape.

TAPE W.

Guidance for specification option:

White reflective tape.

TAPE Y.

Guidance for specification option:

Yellow reflective tape.

Socket

F1 60.

Guidance for specification option:

Small composite socket for 60 mm diameter bollards.

F1 75.

Guidance for specification option:

Small composite socket for 75 mm diameter bollards.

F1 115.

Guidance for specification option:

Large composite socket for 115 mm diameter bollards.

SOCKLS.

Guidance for specification option:

Large steel socket for bollards of at least 170 mm square.

Manufacturer guidance

  • Standard steel socket hinge plate for locking with an FB14 padlock or similar.
  • F1 series sockets can accommodate standard size circular bollards, or the bollards can include a welded on circular spigot for large diameter circular bollards and other shapes, such as square.


Weight

45 kg.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100
