Capital Bollard
Verified by manufacturer 4 months ago
CAP 100AR
CAP 100AR

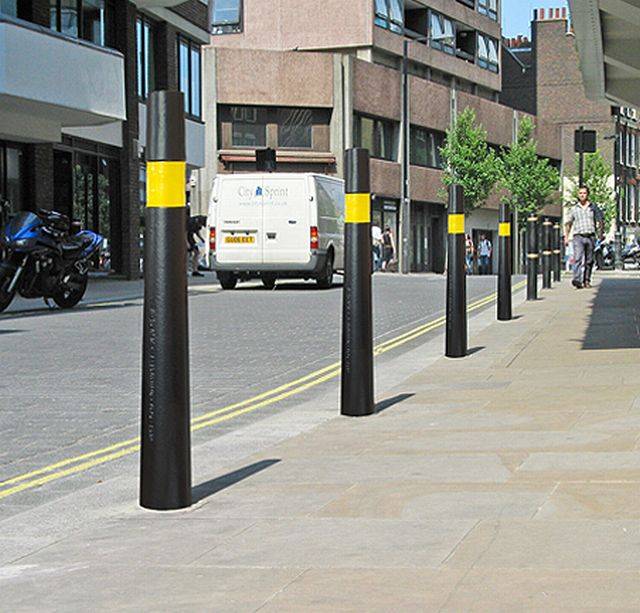

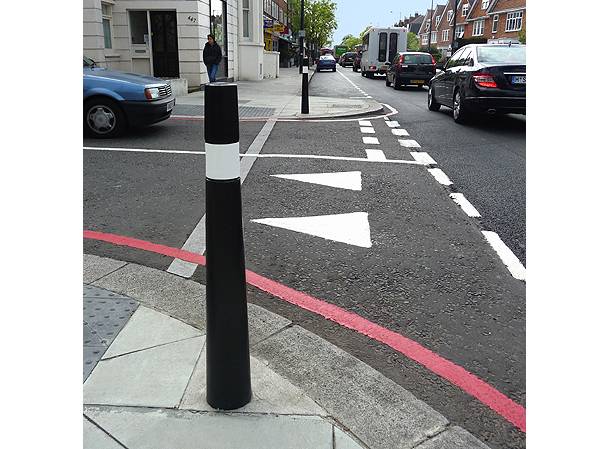

Tapered cast iron bollard.
Application
Suitable for aiding the visually impaired when installed over 1000 mm high.
Description
The Capital bollard balances strength and protection with modern aesthetics. It is tapered and features a recess which can be painted in a contrasting colour, or covered with reflective tape. A cast aluminium removable model is also available.
Features and benefits:
- Bollards installed over 1000 mm aid the visually impaired and can assist with the requirements of BS 8300.
General information
Color | Black Yellow |
Finish | Primed Guidance for specification option: CAP 100 and CAP 100 AR. Stained Guidance for specification option: Opepe hardwood timber: Sadolin Woodstain finish. |
Material | Cast iron Aluminium |
Shape | Circle Guidance for specification option: Conical. |
Length | 1000 mm |
Width | 150 mm Guidance for specification option: (Diameter.) |
Height | 1000 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/196 Removable bollards Q50/190 Bollards |
Product range |
Specification data - Bollard systems
Bollard type | Cast aluminium bollards. |
System accessories | Not required.CHNS.Guidance for specification option: Steel spiked chain link, galvanized. CHNP.Guidance for specification option: Steel plain chain link, galvanized. EBAB.Guidance for specification option: Steel M10 eye bolt, bright zinc plated. SLNK.Guidance for specification option: Steel split link, galvanized. TAPE C.Guidance for specification option: Red/ white chevron reflective tape. TAPE R.Guidance for specification option: Red reflective tape. TAPE W.Guidance for specification option: White reflective tape. TAPE Y.Guidance for specification option: Yellow reflective tape. |
Socket | Not required. Guidance for specification option: For root fixed bollards. FI75. Guidance for specification option: Small composite socket for 75 mm diameter bollards. FI115. Guidance for specification option: Large composite socket for 115 mm diameter. SOCKSS. Guidance for specification option: Small steel socket for bollards under 170 mm diameter. SOCKLS. Guidance for specification option: Large steel socket for bollards of at least 170 mm diameter. Manufacturer guidance
|
Finish: | Primed, black. Guidance for specification option:
|
Size and profile | 150 mm diameter. |
Fixing | Removable. |
Weight | 16 kg. |
Height | Above ground: 1000 mm, Below ground: 320 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
