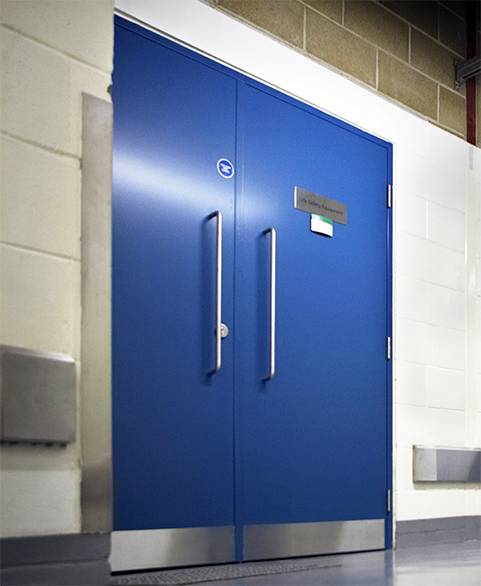

Capital45 steel architectural double door
Verified by manufacturer 5 months ago
Certifire Certificate
Certificate type
Zintec steel double doorset,
Application
- Commercial skyscrapers.
- Luxury accommodation & hotels.
- Transport hubs & railway stations.
- High value retail complexes & shopping centres.
- Schools & universities.
- Hospitals & pharmaceutical environments.
- Recording studios & theatres.
- Other high value infrastructure.
Description
Capital45 architectural steel doorsets provide third-party accredited solutions for fire, acoustic, and security requirements.
All Capital45 doorsets are custom-made to suit individual requirements, and can be engineered to incorporate vision panels and louvres, with optional side and/or top panels. Capital45 doorsets can be configured for use as a personnel or fire exit door, supplied fitted with your selection of premium architectural ironmongery from Allgood. The Capital45 is a high-specification doorset, with coordinating polyester powder coated bungs, and a welded frame, providing a seamless design and high-quality finish.
Features and benefits:
- Optional CERTIFIRE accreditation up to FD180.
- Passed smoke testing.
- Optional thermal rating up to 1.9 W/m²K.
- Polyester powder coated in a selection of colours and finishes.
- High quality wood grain effect available.
- Wide range of premium Allgood ironmongery available.
- Range of vision panels and louvres available.
- Designed for luxury buildings and iconic infrastructure.
- Optional ISO 10140 acoustic rating from Rw 28 to Rw 40.
- 90mm or 150mm frame profile.
General information
Color | Beige Black Blue Bronze Brown |
Finish | Gloss Matt Powder-coated Semi-gloss Textured |
Material | Steel Guidance for specification option: Zintec steel. |
Shape | Rectangle |
Width | 2830 mm |
Height | 2950 mm |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Carbon steel doorsets
Configuration | Double leaf, double action. |
Doorset size | Bespoke.Guidance for specification option: Insert requirement: Height: 1650—2950 mm. Width: 1050—2830 mm. |
Performance | |
Fire resistance | |
Integrity | Not required.240 minutes.Guidance for specification option: Certified by Exova under the CERTIFIRE scheme, these doors provide integrity fire resistance for up to 240 minutes, as defined by EN1634-1:2008 or BS476: Part 22:1987 . All Capital45 doors, with or without a fire rating, have passed smoke testing. |
Smoke leakage | Guidance for specification option: Have passed smoke testing. |
Acoustic performance | Not required.To BS EN ISO 10140-2, Rw 33—36 dB.Guidance for specification option: Tested by Exova BM TRADA to BS EN ISO 10140-2: 2010, Capital45 doors are available with an acoustic accreditation, with RW ratings ranging from 33 dB to 36 dB, depending on specification. |
Thermal | Not required.Up to 2—3.9 W/m²K.Guidance for specification option: Certain Capital45 doors are available with a thermal rating from 2 W/m²K to 3.9 W/m²K, depending on specification. |
Explosion resistance | |
Accessibility | Not required.Required.Guidance for specification option: DDA compliant aluminium threshold or double ramped low profile aluminium threshold. |
Frame | |
Material | Zintec steel. |
Threshold | Folded steel threshold.DDA compliant aluminium threshold.Double ramped low profile aluminium threshold. |
Finish | |
Coating | Primed.Guidance for specification option: Standard finish. Polyester powder coated.Guidance for specification option: Standard finish. Wood effect.Guidance for specification option: High quality wood-grain at an additional cost. Bespoke.Guidance for specification option: Bespoke options include textured effects, as well as Extra Life paint guarantee, underwritten by Cromadex Akzo Nobel. |
Colour | Guidance for specification option: Various colours available. Consult manufacturer and insert requirement. |
Installation fasteners | Seven dog heavy duty bolts per leaf. |
Frame accessories | Four hinges. |
Door leaf | |
Thickness | 45 mm. |
Material | Zintec steel. |
Finish | |
Coating | Primed.Guidance for specification option: Standard finish. Polyester powder coated.Guidance for specification option: Standard finish. Wood effect.Guidance for specification option: High quality wood-grain at an additional cost. Bespoke.Guidance for specification option: Bespoke options include textured effects, as well as Extra Life paint guarantee, underwritten by Cromadex Akzo Nobel. |
External colour | Guidance for specification option: Various colours available. Consult manufacturer and insert requirement. |
Internal colour | Guidance for specification option: Various colours available. Consult manufacturer and insert requirement. |
Hardware | Not required.Deadlock.Sashlock.Five lever deadlock.Rimlock.Night latch.Codelock.Morticed multi-point locking.Electric strike & night latch.Magnetic locks.Solenoid bolts. |
Accessories | Not required.Deadlock & pull handle.Sashlock & lever handle.Morticed multi-point locking.Codelock & lever handle.Door closers and limit stays.Guidance for specification option: A range of door closers and limit stays are available to suit all sizes and specifications of doorsets, consult manufacturer. Specialist.Guidance for specification option: Most non-standard or customer supplied hardware can be incorporated into Specialist doorsets. These doors can be customised to suit individual needs, with options such as stainless steel construction, coin access panels, and circular vision panels. Please contact the Martin Roberts sales team to discuss bespoke requirements. |
Profile | 150 mm. Manufacturer guidanceFrame profile. |
FireRating | Not required. FD180. Guidance for specification option: Optional. FD240. Guidance for specification option: Optional. |
Panic hardware | Not required. Single point emergency escape push pad. Single point panic escape push bar. Two point panic escape push bar. Three point panic escape push bar. |
Vision panel | Not required. 203 x 356 mm. 203 x 762 mm. Manufacturer guidanceTop panels. |
Vision panels | Not required. 457 x 457 mm. 254 x 1524 mm. Manufacturer guidanceLower panels. |
Louvre size | Not required. 457 x 457 mm. 457 x 914 mm. |
Louvre panels | Not required. Punched. Bladed. |
ConstructionMethod | Fully welded frame. |
Opening | Inward and outward. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Certifire Certificate
Capital 45 CERTIFIRE Certificate
Literature
Capital 45 steel door product specification
Case studies
122 Leadenhall Street
