LMD-K 420 - Type K3
LMD-K 420 - Type K3

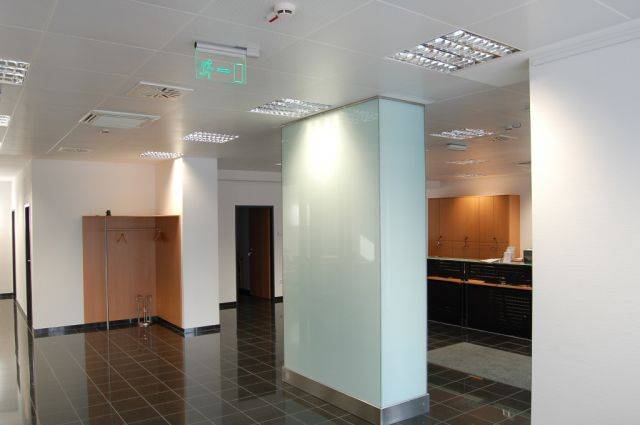

A range of metal cassette ceilings.
Application
- Recreation and culture.
- Workplace.
- Hotels and restaurants.
- Public Institutions.
- Education.
- Transport.
- Healthcare.
- Public areas.
Description
A range of metal cassette ceilings with customisable ceiling surface supported by a clip-in suspension system.
LMD-K 420:
The system has a closed ceiling surface and concealed substructure. The uniform joint design structures the view of the ceiling. The system provides access to the ceiling void by means of metal cassettes that can be either removed or separately swung down and slid along the Clip-In profiles.
Features and benefits:
- Hygienic and easy to clean.
- Available with a range of perforations and powder coatings.
- The products have a specific EPD according to the valid standards (EN 15804/ ISO 14025).
General information
Color | White |
Finish | Powder-coated |
Material | Steel Guidance for specification option: Galvanized. |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system |
Product range |
Specification data - Modular suspended ceiling systems
System performance | Fire performance to BS EN 13501, A2-s1, d0. |
Ceiling support | Metal suspended ceiling hangers and T-profiles. |
Ceiling units | Metal infill units. |
Standard | To EN 13964. |
Third-party certification | TAIM e.V. Guidance for specification option: The ceiling system fulfils the requirements of the "Technical Manual Metal Ceilings" (TMMC) of TAIM e.V. (Association of Industrial Metal Ceiling Manufacturers). |
Colour | RAL 9010. Guidance for specification option: Manufacturer's standard. RAL. Guidance for specification option: Insert requirements. NCS. Guidance for specification option: Insert requirements. |
Powder coating | COLOURline. GRAPHICline. MOODline. |
Perforations | None. BASICline Rg 2, 5-16. REGULARline Rv 1, 8-20. |
Sound absorption | Manufacturer guidanceDependent on level of perforation and acoustic inlay. Consult manufacturer. |
Type | LMD-K 420 Type K3 Clip-in/Swing-down with L-turn-up and bevel. |
Wall connection | L-angle. Shadow gap trim. |
Acoustic infills | Not required. Acustica – Acoustic fabric inlay. Insula – Mineral wool inlay in acoustic foil. |
Luminaires | IS 450 – Integrated luminaire for office and general areas. FR 625 – Integrated luminaire. Q 600 – Integrated luminaire. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
