Cast Iron Cornwall Bollard

Verified by manufacturer 27 days ago

Broxap Street Furniture Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • CQMS

    CQMS

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

Simple, round cast iron security bollard with bands and domed top.

Jump to:
BOS
+44 (0)1782 571700 Website

Application

Suitable for pedestrian guidance, demarcation, traffic calming, parking prevention or ornamental use in a range of settings, including town centres, shopping centres, parks, car parks or residential estates.

Broxap's cast iron bollards can be cast in either grade 250 or grade 450-10, anti-ram ductile iron, to enhance their sturdiness. Ductile iron is for those concerned of vehicle impact vulnerability and offer options such as gold and reflective bands, to further increase the visibility of the building’s location.

The cast iron bollards can be root, base plate or removable fixed. Pricing is per single root fixed Cast Iron Bollard, painted in a single standard Broxap colour only (black as standard). All colour options are available at an extra cost. The cast iron bollard can also be converted to bollard and rail, bollard and panel and bollard and chain, with a choice of BS and RAL colours available on request. Waterside paint specification can be selected for added protection from the elements in locations such as seaside towns, riversides, quaysides, marinas, and canal sides.

Description

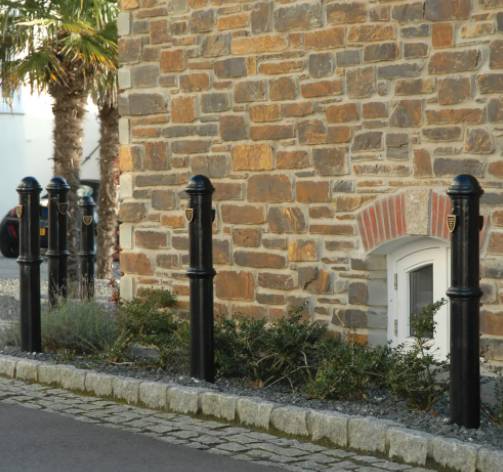

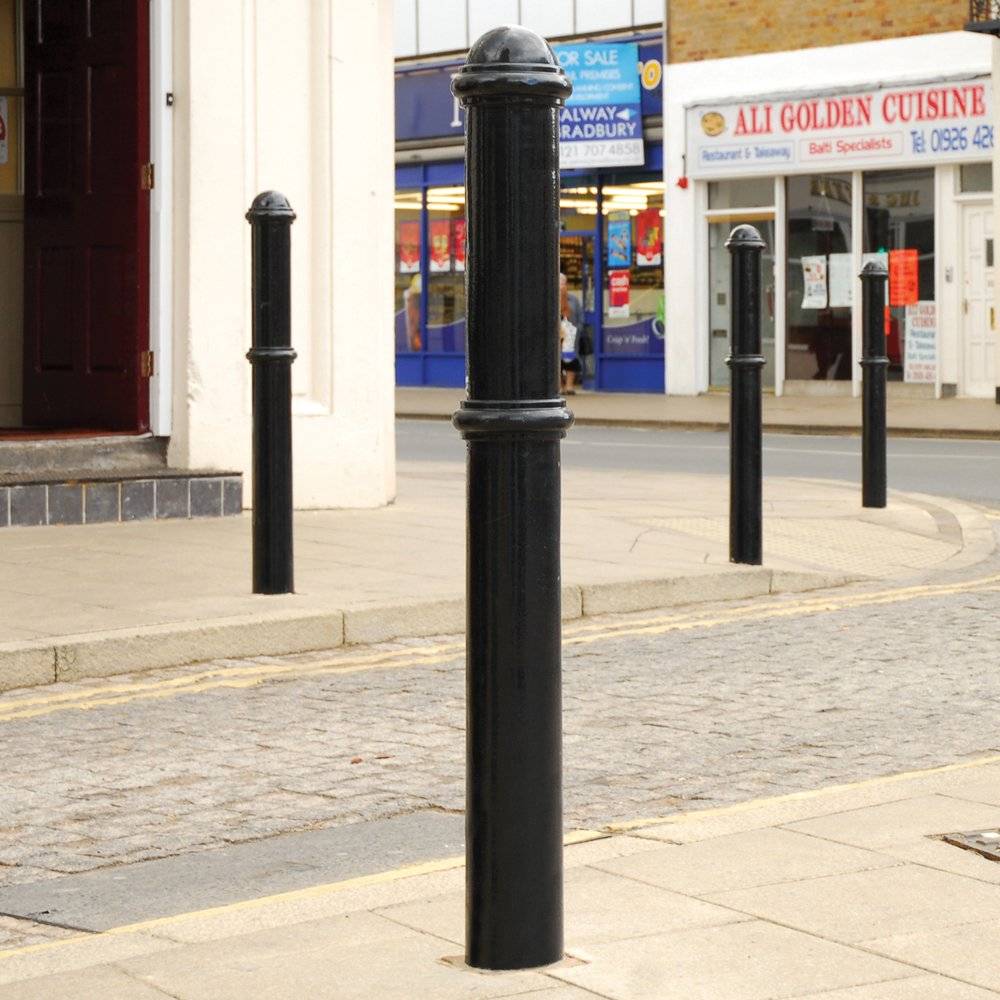

Cornwall cast iron bollard with two decorative bands and domed top.


Features and benefits:

  • Cast iron bollard.
  • Reflective banding.
  • Decorative highlighting (gold as standard, other colours available on request).
  • 'Anti-ram' version available.
  • Root fixed as standard.
  • Decorative domed top.

General information

Color

Finish

Coated

Material

Cast iron

Shape

Other

Length

520 mm

Width

158 mm

Guidance for specification option:

(Diameter.)

Height

1000 mm

Warranty description

One year

Uniclass

Pr_20_76_08_14 Cast iron bollardsPrimary

CAWS

Q50/190 Bollards

Specification data - Cast iron bollards

Material

‘Anti-ram’ ductile iron.

Cast iron.

Dimensions

-

Height

1000 mm.

Length below ground

468 mm.

Top profile

Rounded.

Base

Removable.

Root fixed.

Finishes

-

Applied finish

Colour coated.

Colour

Black (RAL 9005).

Guidance for specification option:

Standard.

Traffic Red (RAL 3020).

Dark Blue (RAL 5013).

Mid Blue (RAL 5015).

White (RAL 9016).

White Aluminium (RAL 9006).

Anthracite Grey (RAL 7016).

Traffic Yellow (RAL 1023).

Holly Green (BS4800 14 C 39).

Moss Green (RAL 6005).

Dark Grey (BS4800 18 B 25).

Duchess Blue (BS4800 20 C 40).

Goose Grey (BS4800 00 A 05).

Coated to a non standard BS/RAL colour.

Guidance for specification option:

Insert requirements.

Coated with a high build paint specification.

Guidance for specification option:

Insert requirements.

Accessories

Gold highlighting.

Silver highlighting.

50 mm class 2 reflective band - White.

50 mm class 2 reflective band - Red.

50 mm class 2 reflective band - Yellow.

50 mm class 2 reflective band - 1/2 red, 1/2 white.

Custom crests and logos.

Guidance for specification option:

Insert requirements.

Weight

52 kg.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

Health & Safety Accreditation

Health & Safety Accreditation

Alcumus Safe Contractor

BBA Agrément Certificate

BBA Agrément Certificate

CE Marking Certification

CHAS

CHAS

CHAS Elite

Constructionline

Constructionline

Constructionline Gold Member

Health & Safety Accreditation

Health & Safety Accreditation

Insurance

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO45001 Health Safety

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO9001 Quality

Rospa Safety Charity

Rospa Safety Charity

ROSPA

CQMS

CQMS

CQMS Safety Scheme

smas WORKSAFE

smas WORKSAFE

SMAS Worksafe

Literature

Cast Iron Cornwall Bollard Specification Sheet

Cast Iron Cornwall Bollard Specification Sheet
