Cavi 60 Type SAF Cavity Stop

Verified by manufacturer 6 months ago

Cavity Trays Ltd

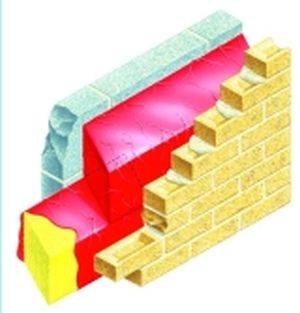

A sloping acoustic fire rated cavity stop.

Jump to:
+44 (0)1935 474769 Website

Application

  • For horizontal and vertical use.
  • Suitable for traditional constructions.


Description

Features and benefits:

  • A compressible, friction-fit acoustic and fire cavity barrier with sloping upper and lower surfaces, designed to deflect penetrating water to the outside leaf of masonry constructions.
  • Manufactured from non-combustible rock wool profiled and encapsulated with a polythene sleeve.
  • Reduces direct and flanking transmission noise.
  • Chlorofluorocarbon (CFC)-free with zero ozone depletion potential (ODP).

General information

Color

Red

Material

Wool

Guidance for specification option:

Rock wool.

Shape

Parallelogram

Length

1200 mm

Width

180 mm

Height

300 mm

Uniclass

Pr_35_90_50_64 Plastics cavity closersPrimary

CAWS

F30/18 Cavity closers

F30/180 Cavity closers

Specification data - Plastics cavity closers

To fit cavity width

Guidance for specification option:

Tested in a cavity of 180 mm maximum.

Length (effective)

1200 mm.

Guidance for specification option:

As standard, other lengths to special order.

Contractor's choice.

As drawing ___.

Hard cap DPC cavitray

Not required.

Required.

ExposureClass

Very severe.

Fire performance

60 minutes integrity.

ThermalConductivity

0.035 W/m·K.

Guidance for specification option:

Insulation properties.

Thermal resistance

2.86 m² K/W.

Guidance for specification option:

Insulation properties.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Literature

Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)

Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)
