Cavibrick airbrick
Verified by manufacturer 7 months ago
Plastics airbrick.
Application
For use instead of a conventional airbrick.
Description

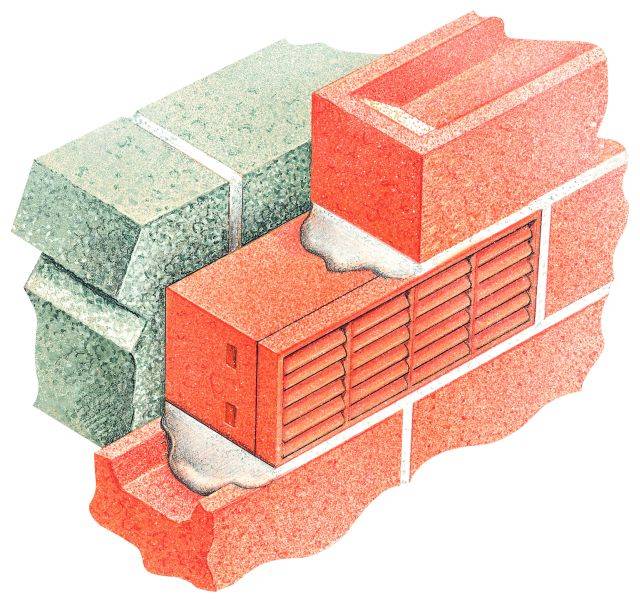

A high performance plastics, louvred grille ventilator for use instead of a conventional airbrick.
Features and benefits:
- Units can be locked together to create larger modules.
- Cavity Trays Ltd claims louvres are spaced to comply with the latest BS requirements.
- Provides insect screening.
- Incorporates crossflow separators, with self draining base, and a water dam back to prevent rain penetration.
- Compatible with Cavity Tray Ltd telescopic and straight duct/ sleeves.
General information
Color | Beige Black Brown White Orange |
Material | Polypropylene |
Shape | Rectangle |
Length | 225 mm |
Width | 60 mm |
Height | 70 mm |
Uniclass | |
CAWS | F30/15 Airbricks in external walling F30/160 Airbricks in external walling |
Specification data - Airbricks
Work sizes | 75 x 225 mm.Guidance for specification option: Single unit. 150 x 225 mm.Guidance for specification option: Two stacked units. 225 x 225 mm.Guidance for specification option: Three stacked units. |
Material | |
Colour | Beige.Black.Brown.Slate.Terracotta.White. |
Free airflow | Up to 7,500 mm² per unit. Manufacturer guidanceFree air provision. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Ventilation Product Guide
Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)
