Cavicloak Rise And Fall Barrier

Verified by manufacturer 6 months ago

Cavity Trays Ltd

Preformed self-supporting horizontal damp proof course (DPC).

Jump to:
+44 (0)1935 474769 Website

Application

  • To protect against dampness and rising land gases within external cavity walls. Cavicloak Rise and Fall Barrier Profiles differ from conventional cavity barriers as their use eliminates the need to support merging protective mediums at a higher course level within the cavity wall.
  • Traditional and timber frame construction compatible.
  • New work applications.
  • Inner skin projection can be extended inwardly to suit various construction configurations.

Description

Preformed self-supporting horizontal damp proof course (DPC).

Conventional cavity barriers rise a minimum of 150 mm within the cavity and are supported by being built-into the nearest/ highest inner skin course.

When the inner skin is constructed of blockwork, the course is regularly higher up, therefore the formation uses additional material. This formation also creates an arrangement where the barrier top must be linked with the oversite membrane, a necessary requirement when protecting the building (and its inhabitants) against contaminated land gases such as Radon.

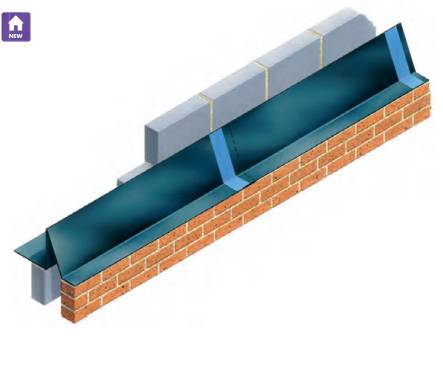

Rise and Fall Barriers are self-supporting and offer the convenience of starting within the outer skin and finishing within (and beyond) the inner skin at the same level. A more easily-managed build sequence and compact protective arrangement is secured. Integration of barrier and oversite membrane is at the lowest possible level.

Supplied in long lengths with internal and external angles and a range of stepped links. Once bedded onto both skins and joined utilizing sealing capping profiles that straddle abutting sections, raising of the cavity wall may continue. Barriers are usually supplied with the inner skin section projecting 150 mm beyond the inner skin internal face.

This permits the membrane and barrier to positively integrate. Important: Overlapping of Rise and Fall Barriers is not possible. Adjoining sections must be butted together and tape linked.


Features and benefits:

  • Self-supporting defined profiles.
  • Higher level inner skin interruption eliminated.
  • Easy interfacing with membrane.
  • Avoids gaps in cavity insulation.
  • Chlorofluorocarbons (CFC) free and has Zero Ozone Depletion Potential (ODP).
  • May be used if cavity insulation is present.
  • Does not extrude or compress under load.

General information

Color

Black

Material

Polypropylene

Size

Guidance for specification option:

As drawing, Insert drawing number.

Length

2400 mm

Width

100 mm

Height

225 mm

Uniclass

Pr_25_57_21_35 Gas-resistant damp-proof coursesPrimary

CAWS

F30/270 Meshwork joint reinforcement

F30/360 Gas-resistant damp-proof courses/ cavity trays

F30/54 Gas-resistant dpcs/ cavity trays

F30/56 Preformed cavity trays

Specification data - Gas-resistant damp-proof courses

Material

Polypropylene.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
