PVC-U cavity closer.
Cavity walls.

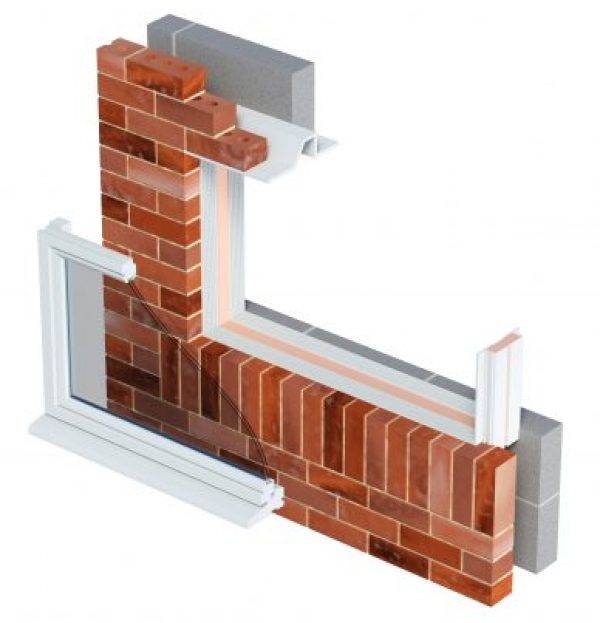

The Mayplas Cavity Closer range is manufactured from an insulant core with a PVC-U rigid extrusion which reduces thermal bridging and forms a damp proof barrier.
Features and benefits:
CHECK REVEAL LOCATIONS
Single flange is primarily produced for check reveal applications. Guidance documents, such as NHBC Standards and The Building Regulations Approved Document C specify locations where check reveal applications are required.
FLUSH REVEAL LOCATIONS
Double flange is more commonly suited to flush reveal applications, which allows a varying window position.
THERMAL PERFORMANCE
Accredited Construction Details and Enhanced Construction Details require a minimum thermal resistance path through the cavity closer of 0.45 m²K/W. All versions of Mayplas Cavity Closer will contribute toward overall compliance.
THERMAL CONDUCTIVITY
Mayplas Cavity Closure XPS 0.033 (W/mK).
WEATHER EXPOSURE
The Mayplas Cavity Closer range provides options for either single or double flange solutions to address check or flush reveal types, respectively.
Color | White |
Material | PVC-U |
Shape | Rectangle |
Length | 2400 mm |
Height | 25 mm Manufacturer guidanceThickness. |
Uniclass | |
CAWS | F30/18 Cavity closers F30/180 Cavity closers |
To fit cavity width | 50 mm. 65 mm. 75 mm. 85 mm. 90 mm. 95 mm. 100 mm. 125 mm. 150 mm. |
Length (effective) | 2400 mm. |
Thickness: | 25 mm. |
Material | PVC-U |
