Application

For indoor and outdoor applications.

Description

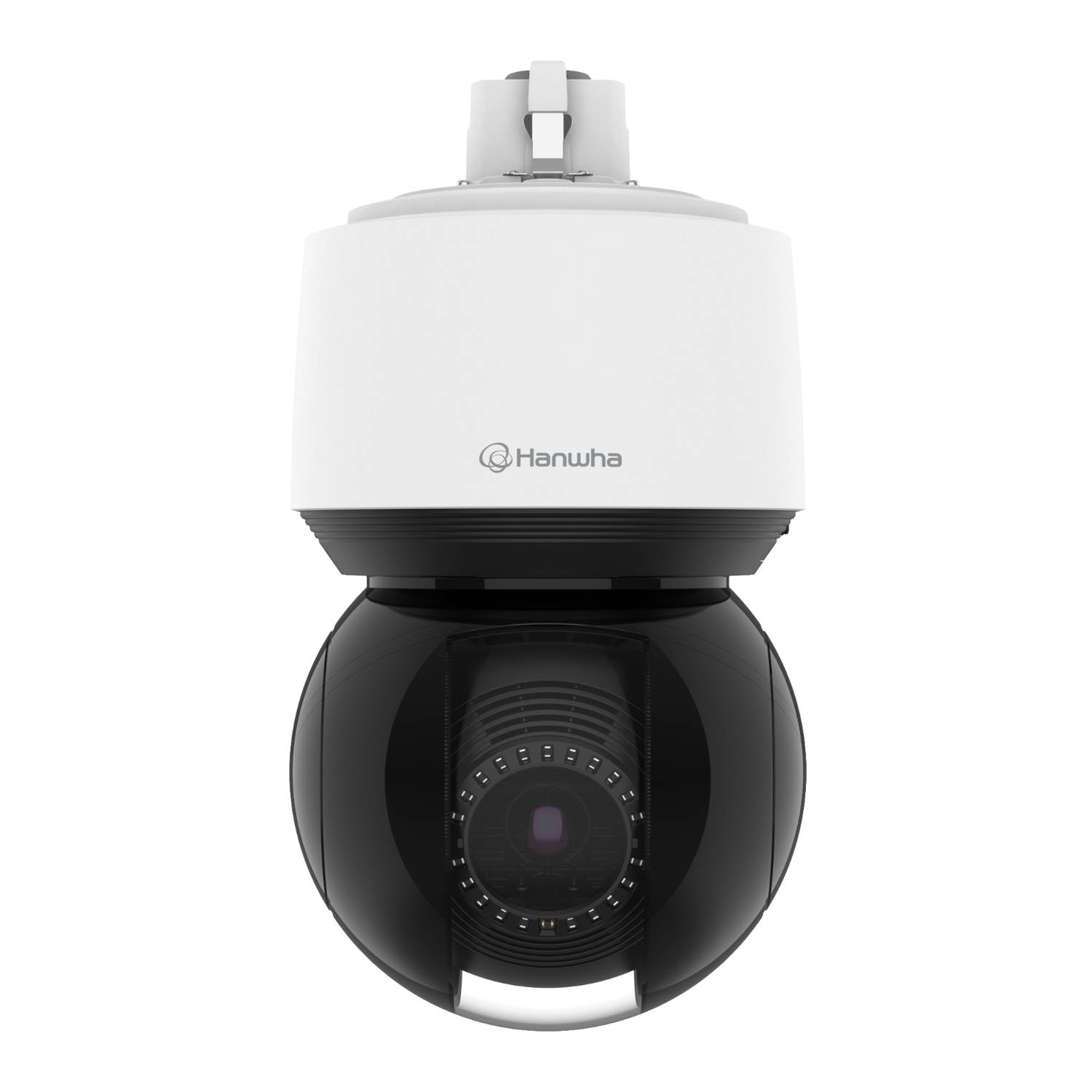

2 MP 25x IR PTZ camera.


Features and benefits:

  • Maximum 2 MP resolution.
  • 4.44–111 mm (25x) lens.
  • Maximum IR viewable length 100 m (328.08 ft).
  • Day and night (ICR), WDR, DIS (built-in gyro sensor).
  • Intelligent analytics.
  • H.264, H.265, MJPEG codec, WiseStreamII.
  • Micro SD/SDHC/SDXC 1 slot 256 GB.
  • IP66, IK10, NEMA4X.

General information

Color

White

Material

Aluminium

Polycarbonate

Shape

Circle

Length

158 mm

Width

158 mm

Height

293.3 mm

Warranty description

Five year

Uniclass

Pr_60_75_86_65 Internet protocol (IP) high-speed pan-tilt-zoom (PTZ) camerasPrimary

CAWS

W90/170 Surveillance CCTV systems

W90/170 Closed-circuit television (CCTV) system

Specification data - Internet protocol (IP) high-speed pan-tilt-zoom (PTZ) cameras

Image sensor

1/2.8-inch CMOS.

Spectrum

Colour/ monochrome.

Resolution (minimum)

1920 x 1080.

1280 x 1024.

1280 x 960.

1280 x 720.

1024 x 768.

800 x 600.

800 x 448.

720 x 576.

720 x 480.

640 x 480.

640 x 360.

320 x 240.

Minimum illumination

Colour 0.05 lux at f1.6 (1/30 s, 30 IRE), black and white 0.005 lux at f1.6 (1/30 s, 30 IRE), 0 lux (IR LED on).

Integrated illumination

Infrared.

Camera functions

-

Focus

Oneshot AF, Focus save.

Iris

Automatic.

Shutter

Minimum/ Maximum/ Anti flicker (2–1/12000 s).

Automatic gain control

Low/ Middle/ High.

White balance control

ATW/ AWC/ Manual/ Indoor/ Outdoor/ Mercury/ Sodium.

Backlight compensation

BLC, HLC, WDR, SSDR.

Wide dynamic range

120 dB.

Day/ night mode switching

Automatic (ICR).

Privacy masks

32, four point quadrangle zones.

Guidance for specification option:

  • Colour: Grey/green/red/blue/black/white.
  • Solid/mosaic.

Display type

Camera title displayed up to 85 characters.

Lens

-

Focal length

4.44–111 mm.

Guidance for specification option:

25x zoom. Digital 32x, total 800x zoom.

Aperture range

F1.6–F3.9.

Angle of view

H: 64.66–2.99°; V: 38.08–1.68°.

Pan-and-tilt function

-

Pan angle

360°.

Pan speed

Preset: 700°/s, Manual: 0.024–250°/s.

Tilt angle

110°.

Guidance for specification option:

90 to -20°.

Tilt speed

Preset: 300°/s, Manual: 0.024–250°/s.

Image flip

Required.

Video motion detection

Eight, eight point polygonal zones.

Power supply

PoE.

Network connectivity

10/100BASE-T via RJ-45.

Guidance for specification option:

Metal shielded.

Network protocols

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), NTCIP1205.

Video compression formats

H.265/H.264: Main/ high, MJPEG.

Video streaming

Unicast (20 users)/ Multicast.
Multiple streaming (up to 10 profiles).

Integral memory storage (minimum)

1 GB RAM, 256 MB flash.

Camera housing

-

Ingress protection (minimum)

To BS EN 60529, IP66.

Impact protection (minimum)

To BS EN 62262, IK10.

Dome colour

Smoked.

Mounting arrangement

Ceiling.

Corner wall.

Pole.

Wall.

Manufacturer guidance

See Accessories for mounts.

Accessories

Not required.

SBP-156HMW.

Guidance for specification option:

Hanging mount (dome).

SBP-156CMW.

Guidance for specification option:

Ceiling mount.

SBP-300CMTS.

Guidance for specification option:

Ceiling mount.

SBP-300CMW1/900CMW.

Guidance for specification option:

Ceiling mount.

Show more

Literature

CCTV camera 2MP 25x IR PTZ (QNP-6250R) data sheet

CCTV camera 2MP 25x IR PTZ (QNP-6250R) data sheet

Similar products from Hanwha Vision Europe Limited

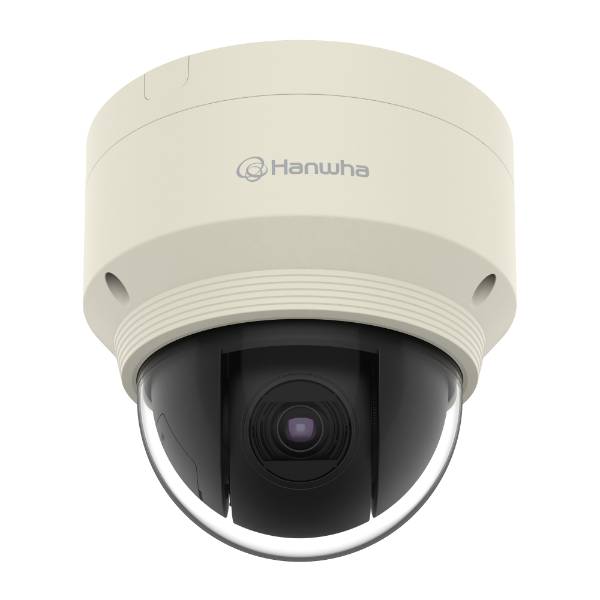

CCTV camera 2MP 12X PTZ (XNP-6120H)
