Application

For indoor and outdoor applications.

Description

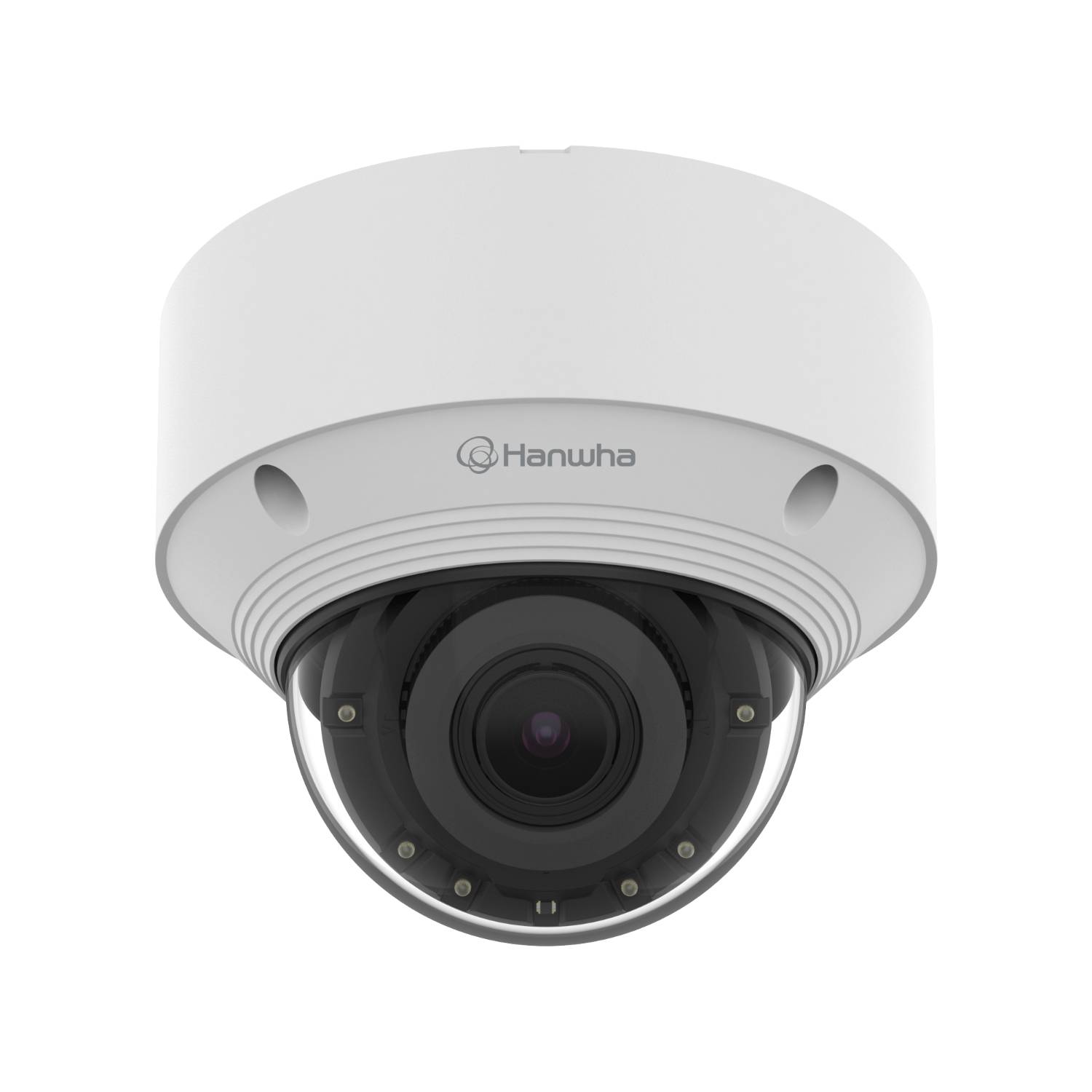

5 MP IR vandal dome camera.


Features and benefits:

  • Maximum 5 MP resolution.
  • Maximum 30 fps.
  • Colour: 0.07 lux (f1.6, 1/30 s), BW: 0.007 lux (f1.6, 1/30 s, 30 IRE).
  • Focal length: 3.2–10.2 mm (3.2x) motorized varifocal.
  • H.265, H.264, MJPEG codec supported.
  • Multiple streaming (up to five profiles).
  • Day and night (ICR), WDR (120 dB).
  • Micro SD/SDHC/SDXC 1 slot 256 GB.
  • IP66, IK10.
  • PoE: maximum 12.95 W.

General information

Color

White

Material

Aluminium

Shape

Circle

Length

140 mm

Width

140 mm

Height

110.2 mm

Uniclass

Pr_60_75_86_31 Internet protocol (IP) fixed dome camerasPrimary

CAWS

W90/170 Surveillance CCTV systems

W90/170 Closed-circuit television (CCTV) system

Specification data - Internet protocol (IP) fixed dome cameras

Image sensor

1/2.8-inch CMOS.

Spectrum

Colour/ monochrome.

Resolution (minimum)

2592 x 1944.

2560 x 1440.

Guidance for specification option:

4 MP mode only.

1920 x 1080.

1280 x 960.

1280 x 720.

800 x 600.

800 x 448.

720 x 576.

720 x 480.

640 x 480.

640 x 360.

320 x 240.

Minimum illumination

Colour 0.07 lux at f1.6 (1/30 s, 30 IRE), monochrome 0.007 lux at f1.6, (1/30 s, 30 IRE), 0 lux (IR LED on).

Integrated illumination

Infrared.

Camera functions

-

Focus

Simple focus.

Shutter

Minimum/ Maximum/ Anti flicker (1/5–1/12000 s).

Automatic gain control

Low/ Middle/ High.

White balance control

ATW/ AWC/ Manual/ Indoor/ Outdoor.

Backlight compensation

BLC, WDR, SSDR.

Wide dynamic range

120 dB.

Day/ night mode switching

Automatic (ICR).

Audio facility

Selectable (mic in/line in).

Guidance for specification option:

Line out maximum output level: 0.5 Vrms.

Privacy masks

32, four point quadrangle zones.

Display type

Camera title displayed up to 85 characters.

Lens

-

Format

Varifocal.

Iris

Automatic, d.c. drive.

Guidance for specification option:

IR corrected.

Focal length

3.2–10.2 mm.

Guidance for specification option:

3.2x motorized varifocal.

Aperture range

F1.6–F3.1.

Angle of view

H: 95–29°, V: 69–21°, D: 126–36°.

Video motion detection

Eight, eight point polygonal zones.

Power supply

PoE.

Network connectivity

10/100BASE-T via RJ-45.

Network protocols

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast).

Video compression formats

H.264/H.265, MJPEG.

Guidance for specification option:

H.265/H.264: Main/High.

Video streaming

Unicast (20 users)/ Multicast.
Multiple streaming (up to five profiles).

Integral memory storage (minimum)

2 GB RAM, 1 GB Flash.

Alarm inputs

One.

Manufacturer guidance

Alarm input is supported through an optional cable (SPP-C7400).

Alarm outputs

One.

Manufacturer guidance

Alarm output is supported through an optional cable (SPP-C7400).

Camera housing

-

Ingress protection (minimum)

To BS EN 60529, IP66.

Impact protection (minimum)

To BS EN 62262, IK10.

Housing colour

White.

Dome colour

Transparent.

Accessories

Not required.

SPP-C7400.

Guidance for specification option:

Optional cable to support alarm input/ output and audio in, audio out.

SBP-140HMW.

Guidance for specification option:

Hanging mount (dome).

SBV-140BW.

Guidance for specification option:

Backbox.
