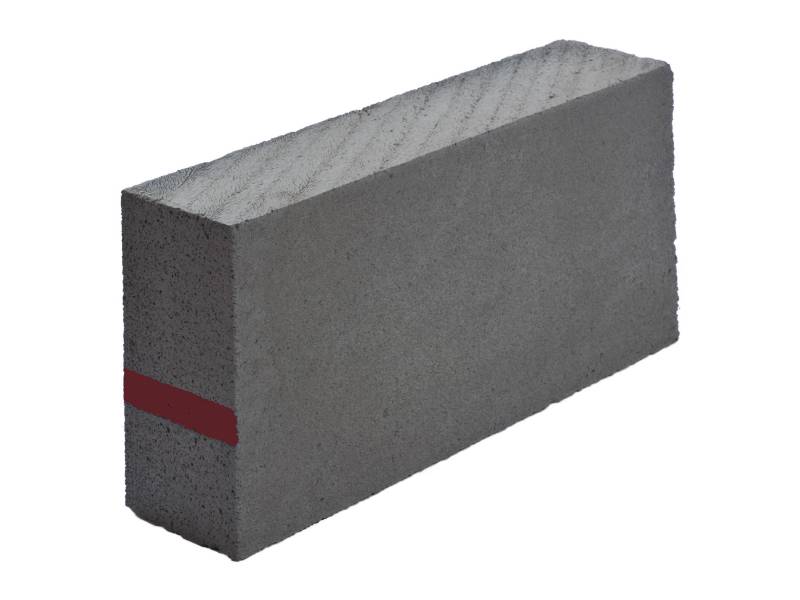

Celcon Plus Blocks Super Strength Grade - Aircrete
Verified by manufacturer 6 months ago
630 x 100 x 215 mm
630 x 100 x 215 mm
BBA Agrément Certificate
Certificate type
Super strength, aerated autoclaved concrete blocks.
Application
Suitable for loadbearing and non‐loadbearing applications in all forms of walling including single leaf, cavity, partitions, retaining and basements.
- Internal and external leaf of cavity walls;
- Solid walls;
- Separating walls;
- Partitions;
- Multi-storey buildings;
- Flanking walls;
- Foundations.
Description
Longer, super strength, aerated autoclaved concrete blocks produced using the latest manufacturing technology.
Features and benefits:
- Ranked amongst the most dimensionally accurate blocks available.
- Ideal for use with H+H’s Thin-Joint System.
- BBA certified.
- Fire resistant.
- Available in a range of thicknesses.
General information
Color | Grey |
Material | Autoclaved aerated concrete (AAC) |
Shape | Rectangle |
Length | 630 mm |
Width | 100 mm 140 mm 150 mm 200 mm |
Height | 215 mm |
Uniclass | |
CAWS | F10/360 Autoclaved aerated concrete (AAC) common blockwork F10/37 Autoclaved aerated concrete (AAC) common blockwork F10/370 Thin-joint autoclaved aerated concrete (AAC) common blockwork F10/39 Thin joint autoclaved aerated concrete (AAC) common blockwork |
Specification data - Autoclaved aerated concrete (AAC) blocks
Standard | To BS EN 771-4. |
Configuration | Group 1. |
Mean compressive strength (minimum) | 8.7 N/mm². |
Category | I. |
Thermal conductivity (maximum) | 0.18 W/m·K. |
Recycled content | 80%. |
Work sizes (length x width x height) | 630 x 100 x 215 mm. |
Tolerance category | TLMA. |
Density | 730 kg/m³. |
Reaction to fire | Euroclass, A1. |
Moisture movement | 0.4 mm/m. |
Shear bond strength | 0.30 N/mm². |
AcousticRating | Unfinished: 41.5 dB; lightweight plaster: 44.1 dB; dense plaster: 47.0 dB. |
Weight | 12 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Yes, at end of life |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Vectorworks | - | 1 |
 IFC | - | 6 |
 ARCHICAD | - | 1 |
 Revit | - | 7 |
 AECOsim | - | 1 |
Third party certifications
Literature
Products and Applications Guide
