Cement rendered concrete block cavity wall with steel frame and partial fill insulation

Verified by manufacturer 27 days ago

NBS

Cement rendered concrete block cavity wall with steel frame and partial fill insulation.

Jump to:
+44 (0)345 4569594 Website

Description

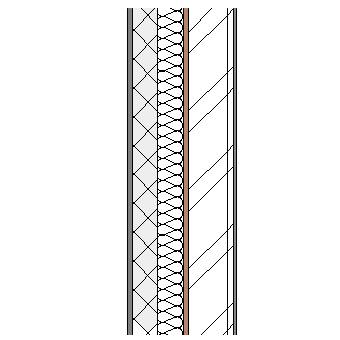

Framed wall system comprising: 20 mm cement render, 100 mm concrete block, 100 mm mineral wool insulation batts, 22 mm cement bonded particleboard, 150 mm steel frame and 12.5 mm gypsum plasterboard lining.

BIM objects

Platform Compatible Version
Revit

Revit 2013

2

IFC

IFC2X3

1
