CEMEX Coloured Mortar
Verified by manufacturer 7 months ago
CEMEX Coloured Mortar uses the latest technology to provide the industry with a convenient mortar batching facility with guaranteed colour and consistency.
Application
Designed for use with all types of brick and block laying applications, and masonry units above and below damp-proof course.
Description
Factory produced dry mortar, available in different strengths and colour options to meet precise requirements.
Yield (using 1 m³ of dry silo mortar):
Will lay approximately:
- 1900 solid bricks;
- 1700 frogged bricks;
- 1200 blocks (nominal size 450 x 225 x 100 mm).
Features and benefits:
- Consistent mortar quality, using a mix of precisely weighted materials.
- Strong and durable, with good resistance to rain penetration.
- Good colour consistency.
- Controlled air content, making the mortar less susceptible to frost attack.
- Workability can be adjusted on site, giving site personnel complete control.
- Chloride-free, and not aggressive towards embedded metallic objects.
- CE marked, and manufactured in accordance with BS EN 998-2:2003, BS 4551-1:1998, BS 4721:1981, and BS 5838-2:1980.
General information
Color | Beige Black Blue White Brown |
Material | Cement Sand |
Length | Bespoke Guidance for specification option: Yield (using 1 m³ of dry silo mortar) will lay approximately:
|
Width | Bespoke Guidance for specification option: Yield (using 1 m³ of dry silo mortar) will lay approximately:
|
Height | Bespoke |
Uniclass | |
CAWS | F10/10 Reclaimed brick facing brickwork F10/110 Clay facing brickwork F10/18 Concrete facing blockwork F10/20 Manufactured stone blockwork F10/230 Reclaimed brick facing brickwork F10/255 Concrete facing blockwork F10/290 Manufactured stone blockwork F10/295 Manufactured stone blockwork F10/5 Facing brickwork M20/130 Cement:sand (air entrained) |
Specification data - Cement-gauged mortars
Standard | To BS EN 998-2:2003, BS 4551-1:1998, BS 4721:1981, and BS 5838-2:1980. |
Mortar type | Dry silo masonry cement:sand. |
Mix | 1:3.Guidance for specification option: M12. 1:3:4.Guidance for specification option: M6. 1:5:6.Guidance for specification option: M4. 1:7:8.Guidance for specification option: M2. |
Colour | Guidance for specification option: Wide range available, consult manufacturer's literature and insert requirements. |
StrengthClass | 1:7:8 (cement:sand). Guidance for specification option: M2 (IV). 1:5:6 (cement:sand). Guidance for specification option: M4 (III). 1:3:4 (cement:sand). Guidance for specification option: M6 (II). 1:3 (cement:sand). Guidance for specification option: M12 (I). |
Particle size | 1–100 µ. |
PHLevel | 9–12. |
Dry density | 1100–1600 kg/m³. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 4 |
 IFC | - | 3 |
Literature
Experts in Mortar

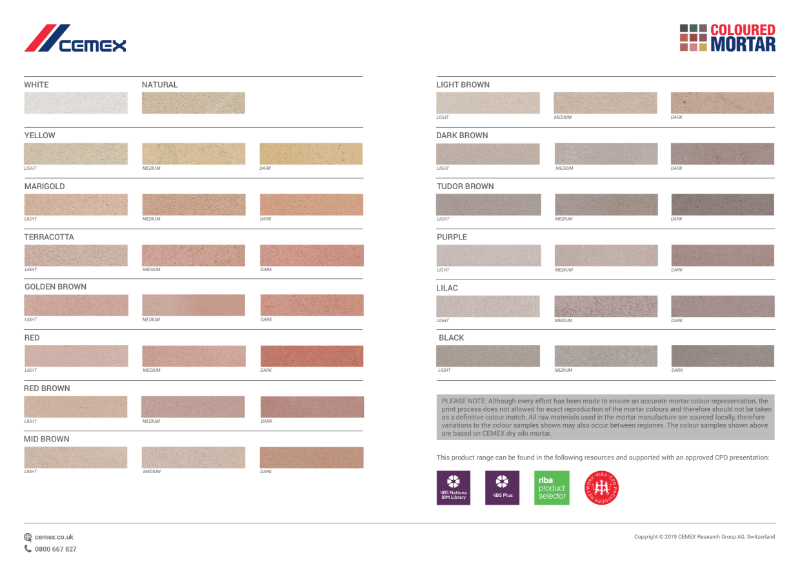

CEMEX Coloured Mortar Guide
