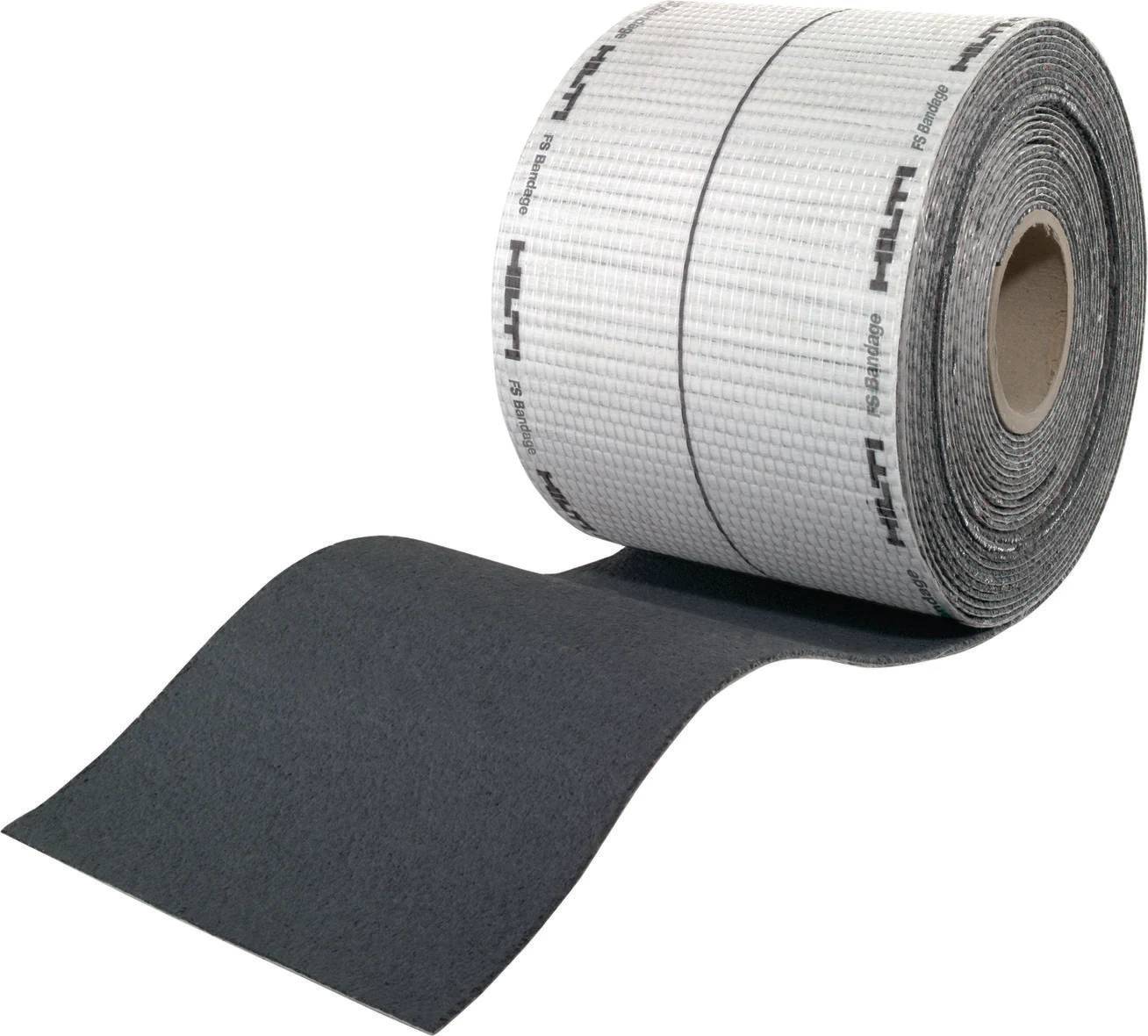

CFS-B Firestop Bandage
Verified by manufacturer 29 days ago
European Technical Approval (ETA)
Certificate type
UK Technical Assessment (UKTA)
Certificate type
Firestop bandage.
Application
- Suitable for use in openings in concrete, masonry block or drywall.
- Can be used around insulated (hot/ cold) non-flammable pipes made of copper, steel and other metals with various types of combustible insulation. Approved for sealing various types of insulated composite pipes such as Uponor, Wavin, Rehau.
- Range of approved applications publicly present in 3rd party documents: 0843-UKTA-22/0038 and ETA-20/0993.
Description
Firestop bandage to help create a fire and smoke barrier around non-combustible pipes with combustible insulation.
Features and benefits:
- Highly versatile - one product for a variety of insulation materials, pipe materials and pipe diameters.
- Quick and easy to install - no drilling or additional tools needed.
- No need to interrupt the pipe insulation material within the wall/ floor penetration.
- Minimal thickness for easy installation in narrow gaps.
- Good elasticity for optimum flexibility.
- Fire resistance rating of up to three hours.
- ETA-10/0212.
General information
Color | White |
Material | Intumescent |
Shape | Rectangle |
Length | 10000 mm Manufacturer guidanceRoll. |
Width | 125 mm |
Height | 2 mm |
Uniclass | |
CAWS | P12/370 Pipe collar P12/43 Pipe collar |
Specification data - Concealed intumescent pipe collars
Sizes | 10 000 x 125 x 2 mm.Manufacturer guidanceRoll. |
Fire performance | Up to four hours. |
Application temperature | -5 to +50°C. |
Temperature resistance | -20 to +100°C. |
Fire classification (EN 13501-1) | Class E. |
Bacteria resistance (to EN846) | Class 0. |
Third party certifications
European Technical Approval (ETA)
ETA-20/0093 for CFS-B Firestop Bandage for Penetrations
UK Technical Assessment (UKTA)
UKTA22 0038 CFS-B
