625 mm-wide platform (300 kg rated load)
ISO 14001 Environmental Management Systems
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type

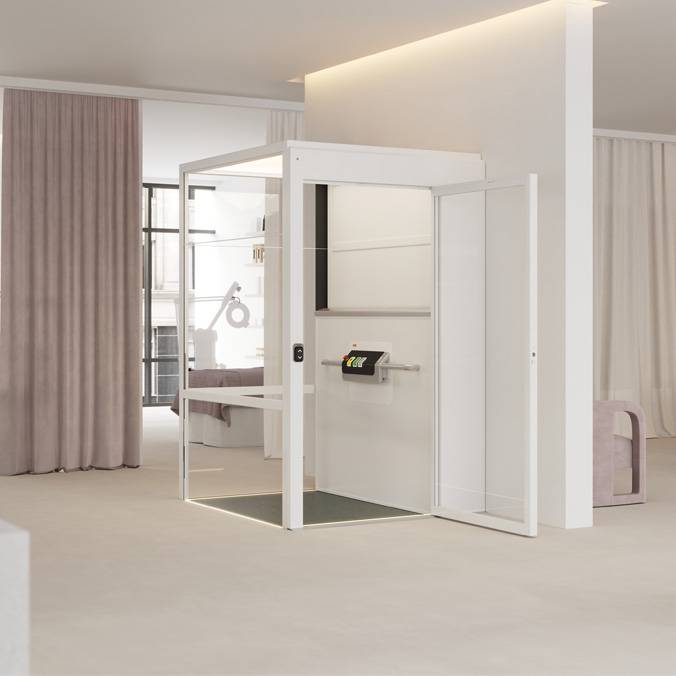

The new Cibes Cloud Plus is part of our next generation of lifts and is made for the future in every sense. A stylish platform lift designed to meet almost any legal and aesthetic requirements.
Public buildings and private home environments. Indoor use only.
The new Cibes Cloud Plus is part of our next generation of lifts, a stylish platform lift designed to meet almost any legal and aesthetic requirements, offering you the accessibility you need and more. This is a perfect example of Scandinavian design, where function, beauty and colour go hand in hand to make the lift integrate seamlessly with any private or public building.
Wide range of sizes:
The Cibes Cloud Plus has one of the widest range of platform sizes on the market, making the lift fit into almost any space.
Easy to update and upgrade over time:
Thanks to the smart and flexible construction, it is easier than ever to extend the lifetime of the lift through continuous updates and upgrades.
Range of exclusive colour choices:
The Cloud Plus is available in seven beautiful colour combinations chosen by Cibes' design experts.
Installation with minimal refurbishment:
Delivered in ready-made elements. No separate machine room, a reduced lift pit of only 50 mm and a headroom of only 2400 mm on the top floor.
The Cibes Cloud Plus Platform Lift goes beyond meeting accessibility requirements; it is designed to elevate the style and experience of any building. When you step into this new lift model, you will discover that all the materials and colours have been carefully selected by our experts.
We keep challenging the lift experience by pushing the limits of functionality and beauty. Travelling in a Cibes Cloud Plus should be easy, simple and comfortable. For example, the lift features a two-directional control panel so you can apply pressure on the buttons from the top or from the front, making it ideal for all passengers.
While Cibes Cloud Plus gives you more options than ever before, the standard version already offers you a high level of comfort to enhance your experience and make every ride a pleasure.
Included as standard:
Additional feature available:
The new, optimised drive system only generates 40 dB a few metres from the lift, making the Cibes Cloud Plus one of the quietest platform lifts of its kind. In addition, the drive system is energy-efficient enough to carry Energy label A.
Color | Other Beige Black Blue Brown |
Finish | Powder-coated |
Material | Steel Glass Aluminium |
Shape | Rectangle Square |
Length | 950 mm 1150 mm 1350 mm 1450 mm |
Width | 625 mm 825 mm 1025 mm 1125 mm |
Height | Bespoke |
Warranty description | Three year One year Five year |
Uniclass | |
CAWS | X12/110 Vertical lifting platform systems X12/110 Vertical lifting platform systems |
Standard | To BS EN 81-41:2010; MD 2006/42/EC; parts of EN 81-20:2020; SIL3 (Safety Integrity Level 3). |
Rated load (minimum) | 300 kg.Manufacturer guidanceMaximum four passengers. |
Drive type | Screw and nut. |
Carriage type | Fully enclosed. |
Carrier | |
Frame material | Low-carbon steel. |
Frame finish | Powder-coated. |
Frame colour | Signal white.Guidance for specification option: Standard colour. Oyster white.Guidance for specification option: Standard colour. Graphite black.Guidance for specification option: Standard colour. Green.Guidance for specification option: Standard colour. Grey.Guidance for specification option: Standard colour. Azure blue.Guidance for specification option: Standard colour. Orange.Guidance for specification option: Standard colour. Other.Guidance for specification option: Consult manufacturer for options and insert requirements. |
Infill material | Laminated and tempered safety glass.Guidance for specification option: 4 mm glass/ 0.76 PVB foil/ 4 mm glass. Consult manufacturer for further details. Steel.Guidance for specification option: Consult manufacturer for further details. Laminated and tempered safety glass/ steel.Guidance for specification option: Refer to drawings/ schedule. 4 mm glass/ 0.76 PVB foil/ 4 mm glass. Consult manufacturer for further details. |
Infill finish | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Insert colour | Guidance for specification option: Consult manufacturer for options and insert requirements or omit. |
Doors | |
Arrangement | Single. |
Type | Panoramic Plus doors.Guidance for specification option: Standard.
Panoramic Plus door(s); Panoramic Plus gate on top floor.Guidance for specification option: Door(s):
Top floor only: 1300 mm-high gate that fits under any ceiling; allows for a slanted ceiling on the top floor or were the preference is to keep the room as open and airy as possible. Panoramic doors.Guidance for specification option: Door(s):
Panoramic door(s); Panoramic gate on top floor.Guidance for specification option: Door(s):
Top floor only: 1300 mm-high gate that fits under any ceiling; allows for a slanted ceiling on the top floor or were the preference is to keep the room as open and airy as possible. Saloon doors.Guidance for specification option: Saves space on every landing. Door(s):
Saloon doors; gate on top floor.Guidance for specification option: Saves space on every landing. Door(s):
Top floor: 1300 mm-high gate that fits under any ceiling; allows for a slanted ceiling on the top floor or were the preference is to keep the room as open and airy as possible. Other.Guidance for specification option: Consult manufacturer for options and insert requirements. Manufacturer guidanceDoors can be upgraded over time; consult manufacturer for details. Standard top height:
Consult manufacturer for further details. |
Clear opening width (minimum) | Manufacturer's standard.Guidance for specification option: Consult manufacturer's literature. Determined by:
|
Fire classification | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Frame material | Manufacturer's standard. |
Frame finish | Powder-coated. |
Frame colour | To match carrier.Signal white.Guidance for specification option: Standard colour. Oyster white.Guidance for specification option: Standard colour. Graphite black.Guidance for specification option: Standard colour. Green.Guidance for specification option: Standard colour. Grey.Guidance for specification option: Standard colour. Azure blue.Guidance for specification option: Standard colour. Orange.Guidance for specification option: Standard colour. Other.Guidance for specification option: Consult manufacturer for options and insert requirements. |
Infill material | To match carrier.Laminated and tempered safety glass.Guidance for specification option: 4 mm glass/ 0.76 PVB foil/ 4 mm glass. Consult manufacturer for further details. Steel.Guidance for specification option: Consult manufacturer for further details. Laminated and tempered safety glass/ steel.Guidance for specification option: Refer to drawings/ schedule. 4 mm glass/ 0.76 PVB foil/ 4 mm glass. Consult manufacturer for further details. |
Infill finish | To match carrier.Other.Guidance for specification option: Consult manufacturer for options and insert requirements. |
Infill colour | To match carrier.Other.Guidance for specification option: Consult manufacturer for options and insert requirements. |
Carrier floor | |
Dimensions | |
Width (minimum) | 625 mm. |
Depth (minimum) | 950 mm.1150 mm. |
Material | Marmoleum Slate.Guidance for specification option: Standard. Embossed texture linoleum with R10 slip resistance. Not required.Guidance for specification option: Can be delivered without flooring for custom builds. Insert alternative flooring required if appropriate. |
Colour | Cornish grey.Guidance for specification option: Light reflectance value: 15%. Welsh slate.Guidance for specification option: Light reflectance value: 9%. Newfoundland slate.Guidance for specification option: Light reflectance value: 11%. Highland black.Guidance for specification option: Light reflectance value: 7%. Not applicable.Guidance for specification option: Where no flooring is required. |
Electrical supply | Single-phase 230 V a.c., 50 Hz, 16 A, 3 × 2.5 mm².Three-phase 230 V a.c., 50 Hz, 16 A, 5 × 2.5 mm².Three-phase 400 V a.c., 50 Hz, 16 A, 5 × 2.5 mm².Manufacturer guidanceRated load vs power supply is dependent on platform size and travel height required; consult manufacturer for details. |
Control device type | Micro-computer based SIL3 (Safety Integrity Level 3) control system. |
Control features | Hold-to-run on platform; one touch on landings.Guidance for specification option: According to European Standards, hold-to-run operation is mandatory on the platform. For markets outside the EU, other standards may apply, contact manufacturer for more information. |
Accessories | None.Landing lights.Guidance for specification option: The light is activated when the lift arrives to the floor and provides an extra light source in dark rooms. Level indicators.Guidance for specification option: Placed above door(s) on the outside, displaying on which floor the lift is. Child safety locks.Door open holders.Remote call buttons.Kick plates.Locking system.Guidance for specification option: Various options available; consult manufacturer and insert requirements. |
Pit depth | Not required. 50 mm. |
Configuration | Guidance for specification option: Insert requirements or refer to drawing/ schedule.
For cut out size see manufacturer's literature. Determined by:
|
Lighting | LED lights (correlated colour temperature: 3000 K; >50 lux on lift control panel). |
Speed | 0.15 m/s (maximum). |
Headroom | 2400 mm (minimum). Guidance for specification option: Standard for 2350 mm doors. Insert requirements if non-standard doors are required. |
Contains Red List materials | No |
Country of material origin | Sweden |
Country of product manufacture | Sweden |
Recyclability | Steel, metal, glass |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 91 % |
