CLAD-LINE CL4 Framing System - Framing System

Verified by manufacturer over a year ago

Clad-Line Framing Solutions

Rainscreen framing system. For panel systems using face fixings or discrete mechanical fixings.

Jump to:
+44 (0)1543 222 500 Website

Application

For panel systems using face fixings or discrete mechanical fixings.

Description

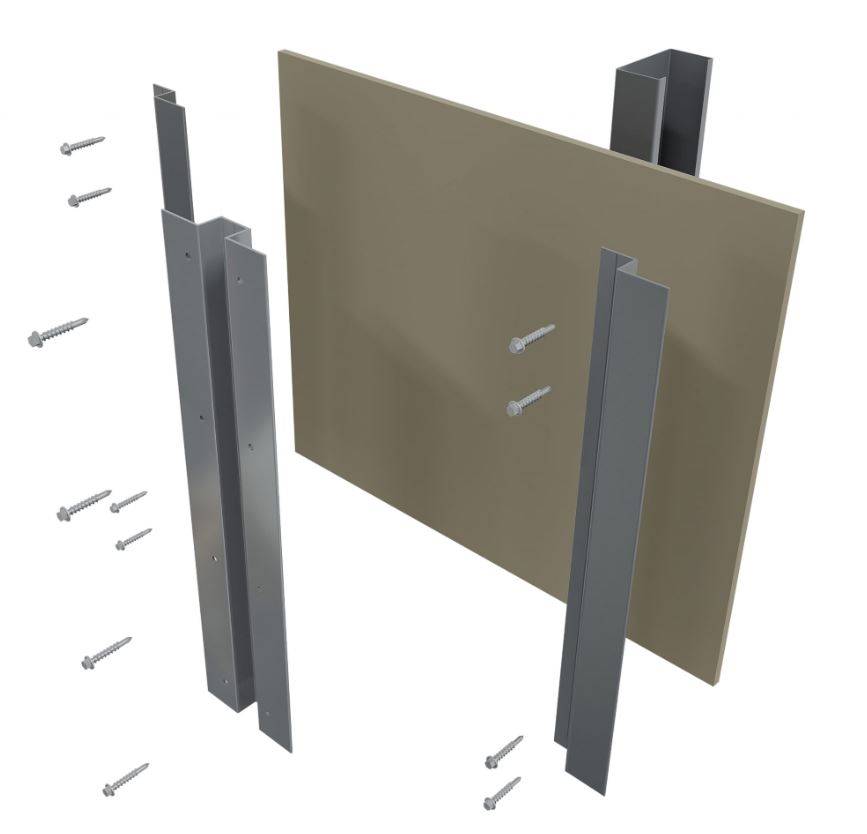

CL4 is CLAD-LINE’s non-combustible alternative to timber battens, comprising of Top-Hat and Zed profiles which can be fixed directly back to the main structure. The CL4 system has been designed with oversized flanges to make fixing easier. Suitable for rainscreens with a shallow cladding zone (25 or 40 mm), this system can be used with a wide range of face fixed cladding panels.


Features and benefits:

  • Lightweight.
  • Durable.
  • Cavity range from 25 to 40 mm .
  • Suitable for use with Rockpanel, aluminium, HPL, ACM and fibre cement.
  • Non-combustible.
  • Suitable for new build and refurbishment.
  • Faced fixed panel installation.
  • Cost effective installation.
  • 100% recyclable aluminium.
  • Powder coated or anodized finishes available on request.

General information

Color

Silver

Finish

Mill

Powder-coated

Guidance for specification option:

Available on request.

Anodized

Guidance for specification option:

Available on request.

Material

Aluminium

Shape

Rectangle

Length

3000 mm

6000 mm

Width

Bespoke

Height

Bespoke

Uniclass

Pr_20_85_20_04 Aluminium carrier railsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Aluminium carrier rails

Rails

Top Hat (120 x 25) 45 x 25 x 35 3000 mm CL4-TH/120X25/3000.

Top Hat (120 x 25) 45 x 25 x 35 6000 mm CL4-TH/120X25/6000.

Top Hat (140 x 40) 55 x 40 x 35 3000 mm CL4-TH/140X40/3000.

Top Hat (140 x 40) 55 x 40 x 35 6000 mm CL4-TH/140X40/6000.

Zed 45 x 25 x 32 3000 mm CL4-ZED/45X25/3000.

Show more

Fixings

-

Manufacturer guidance

Insert requirements. A range of fixings are available. All fixings can be colour matched.

Accessories

Double A2 Isolator Pad [CL-DOUBLEPAD/A2].

Single A2 Isolator Pad [CL-SINGLEPAD/A2].

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Fully recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

65 %

Literature

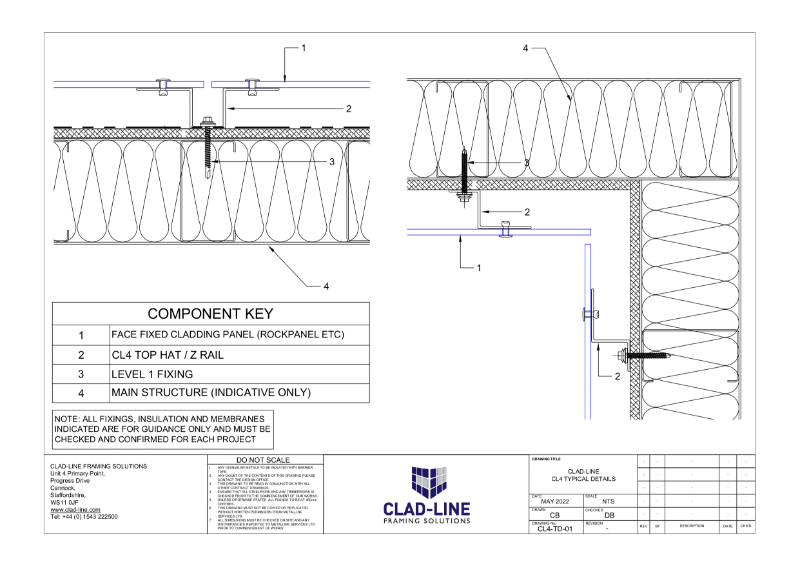

CL4 - Typical Technical Drawing

CL4 - Typical Technical Drawing

Clad-Line Framing Solutions Brochure

Clad-Line Framing Solutions Brochure
