V63 Clasp tie
V63 Clasp tie
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type

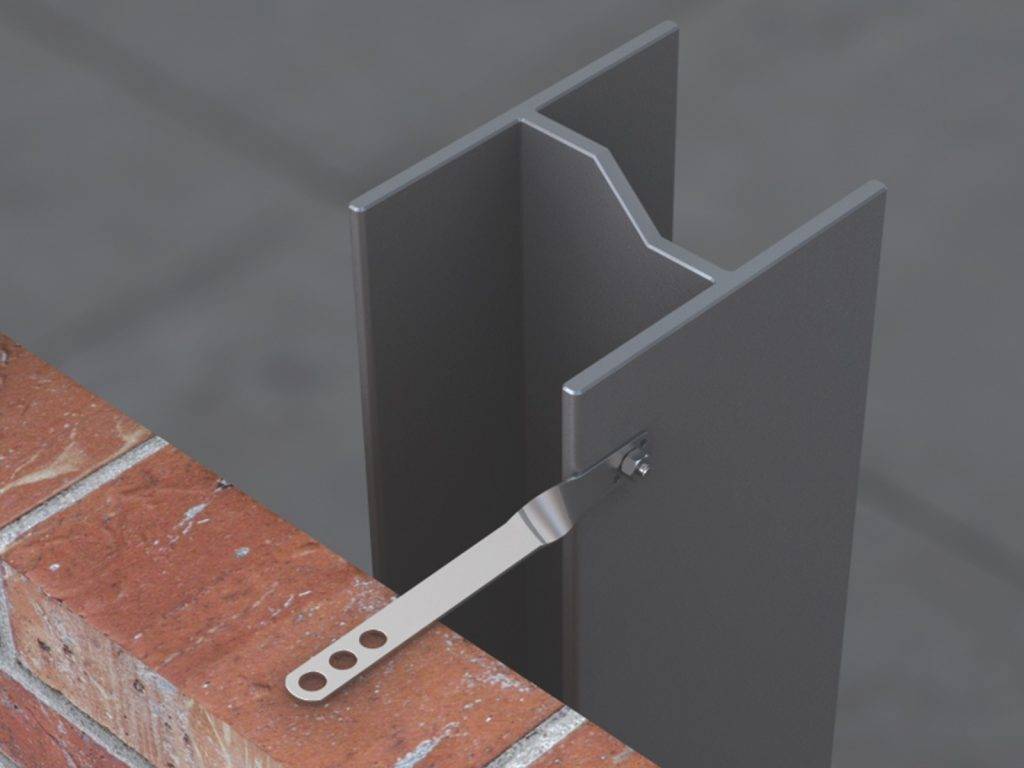

Range of clasp ties fixed to the side of a stanchion.
Application
Brickwork restraint connected to stanchions.
Description
Range of clasp ties fixed to the side of a stanchion.
Features and benefits:
- The V63 clasp tie is used to restrain brickwork.

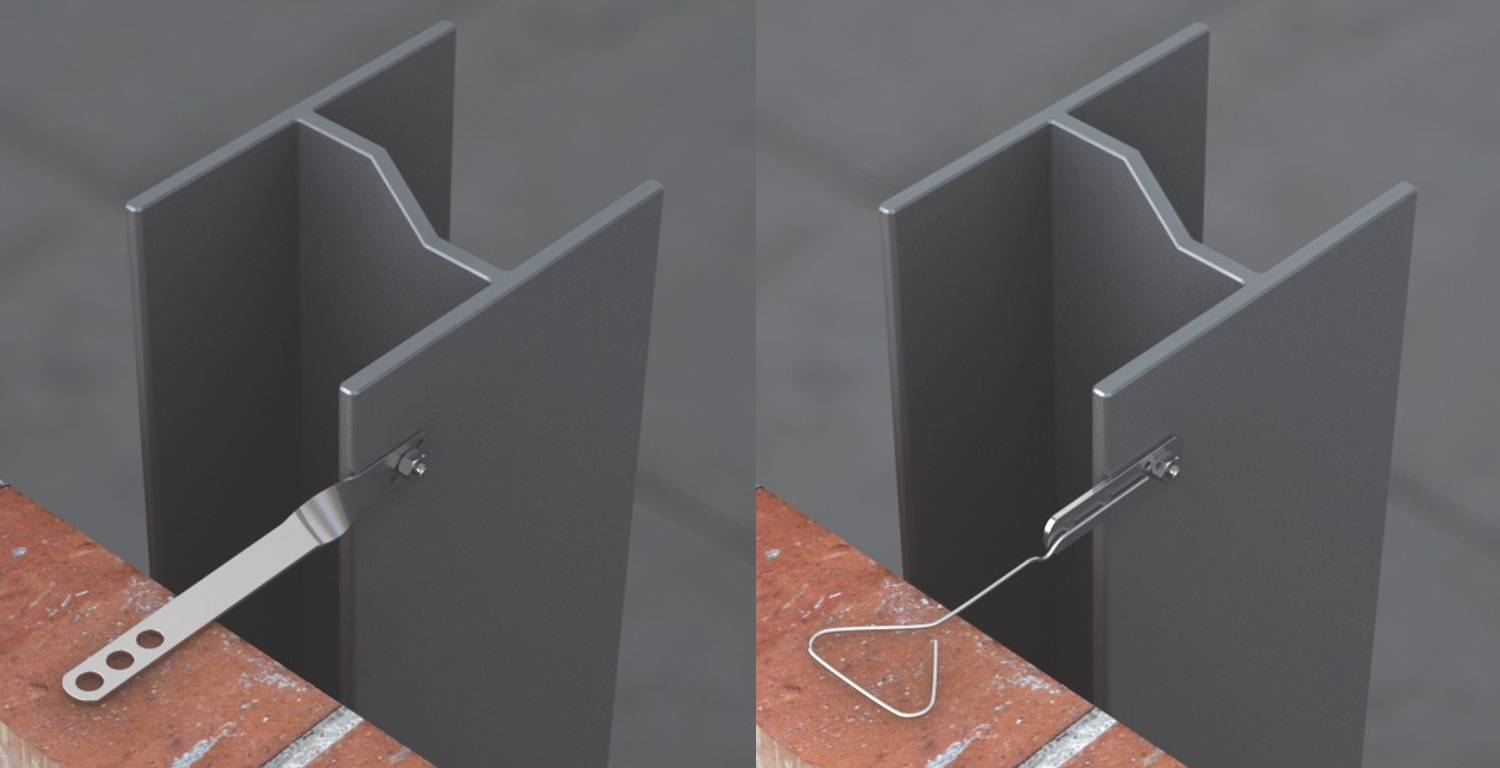

- The V97 wire clasp tie allows extra movement with the flex of the wire section.
- Tested as type B (sound) and Type 2 (strength) to BS EN 845-1.
- Manufactured from grade 304 stainless steel.
General information
Color | Silver |
Material | Stainless steel Guidance for specification option: Grade 304. |
Length | 150 mm 175 mm 200 mm 225 mm 250 mm Guidance for specification option: V63 only. |
Uniclass | |
CAWS | F30/220 Wall ties F30/26 Wall ties F30/218 Shear wall ties |
Specification data - Shear wall ties
Standard | To BS EN 845-1. |
Tie type | Type 2 to BS EN 845-1.Guidance for specification option: Type B (sound). |
Material | Grade 304 stainless steel. |
Length | 150 mm.Guidance for specification option: Supplied in boxes of 250. 175 mm.Guidance for specification option: Supplied in boxes of 250. 200 mm.Guidance for specification option: Supplied in boxes of 250. 225 mm.Guidance for specification option: Supplied in boxes of 250. 250 mm.Guidance for specification option: Supplied in boxes of 250. 275 mm.Guidance for specification option: Supplied in boxes of 200. 300 mm.Guidance for specification option: Supplied in boxes of 200. |
End types | Asymmetrical deformed plate, holed to fix to stanchion.Guidance for specification option: Used to connect new masonry to an existing structure for cavities up to 165 mm. Fixed using a self drill, self tapping screw. |
Design embedment length (minimum) | 62.5 mm. |
Additional requirements | |
Mortar joint thickness (minimum) | 10 mm. |
Compressive load capacity | 1550 N. |
Tensile load capacity | Manufacturer's standard.Guidance for specification option: Tension capacity at mortar/ steel ends. Tested to 7760/ 9420 N (250 mm long tie only; consult manufacturer for details of other sizes). |
Resistance to water crossing cavity | Resistant. |
Third party accreditation | UKCA marked. |
Fixing | SELF Self-tapping screws. Guidance for specification option: Vista offer a range of self-drill screws designed for use when fixing products to steel work. The high quality self-drilling fastener is designed to give very rapid and accurate installation with precision drill points eliminating ‘skip actions’ to prevent damage to the face of the profile. SELF Self-tapping screws with NEO Neoprene washers. Guidance for specification option: Vista offer a range of self-drill screws designed for use when fixing products to steel work. The high quality self-drilling fastener is designed to give very rapid and accurate installation with precision drill points eliminating ‘skip actions’ to prevent damage to the face of the profile. When fixing a stainless steel tie to a mild steel frame, an isolation pad should be used to separate the dissimilar metals and prevent a bimetallic reaction. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
Third party certifications
ISO 14001 Environmental Management Systems
ISO 14001
ISO 9001 Quality Management
ISO 9001
Literature
Wall Ties Brochure

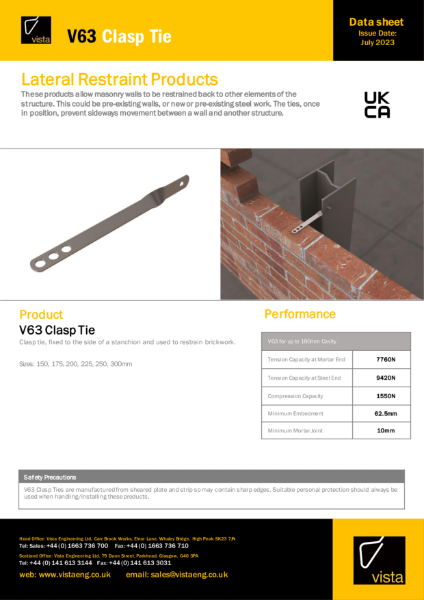

V63 Clasp Tie Data Sheet
