CLD Secureogril Fencing System - Perimeter Fencing

Name: CLD Secureogril Fencing System - Perimeter Fencing
Brand: CLD Physical Security Systems
SKU: kbk5mituhbsK4Ht1MRUfv3

Verified by manufacturer 24 days ago

CLD Physical Security Systems

Grated rigid panel fencing system.

Jump to:

BOS

+44 (0)1270 764751 Website

Application

Secureogril rigid fencing provides a practical and modern boundary solution suitable for a wide range of environments. Its design allows it to complement both contemporary and older structures, making it adaptable to various architectural styles.

Constructed with heavy-duty condensed mesh panels, the system offers a high level of security and durability. The panels are difficult to cut through and are hot dip galvanised and polyester powder coated—including options for marine environments—ensuring resistance to corrosion and weathering.

Secureogril is well-suited for use in:

Hospitals
Hi-tech commercial environments
Utility facilities
Modern industrial sites
Housing estates
Commercial buildings
This makes it a versatile option for settings that require both functional security and a contemporary appearance.

Description

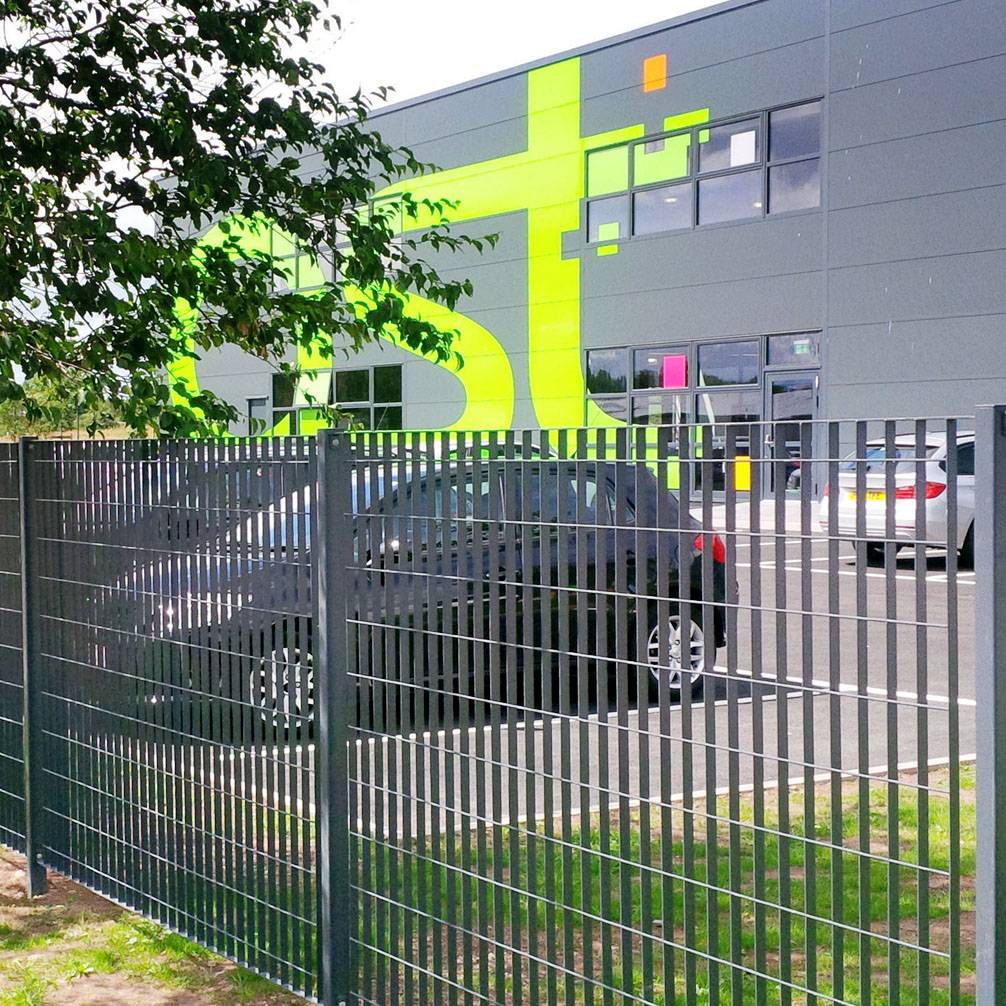

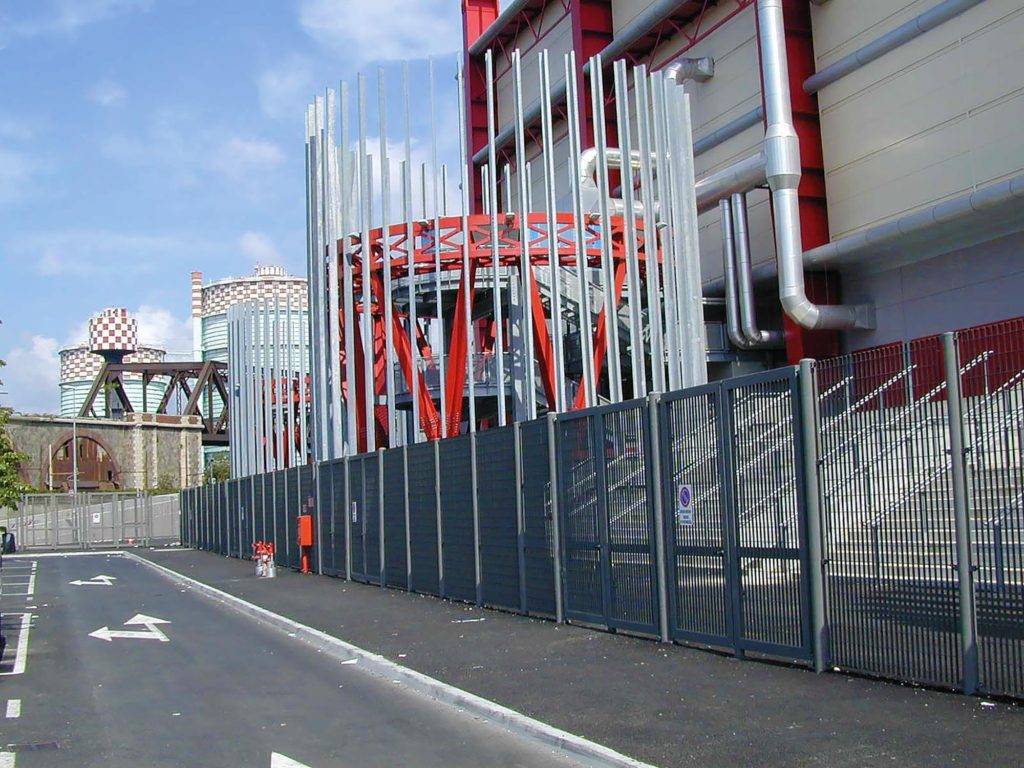

CLD Secureogril offers a perimeter to match modern urban landscapes. Offering good visibility, Secureogril panels are both hard wearing and aesthetically pleasing.

Features and benefits:

Withstands harsh environments.
Good visibility.
Suitable for residential and commercial applications.
Can be used in security applications.
Available in any RAL colour.

General information

Color	Green Other Guidance for specification option: Any RAL colour.
Finish	Powder-coated Galvanized
Material	Steel
Shape	Rectangle
Width	1992 mm
Height	930 mm 1194 mm 1326 mm 1458 mm 1722 mm 1986 mm 2118 mm 2514 mm Bespoke Guidance for specification option: fencing can be made up of any combination of these sizes, contact manufacturer for details. Show more
Warranty description	15 year Guidance for specification option: Minimum of 15 years against manufacturing defects.

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/126 Open mesh steel panel security fencing Q40/27 Open mesh steel panel general-purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Product range	Perimeter Security Systems

Specification data - Metal mesh panel fencing systems

System performance	Anti-intruder and security fencing performance.
Standard	To BS 1722-14:2017, BS EN ISO 1461:2009, BS EN 13438:2013.
Posts	Carbon steel posts. Guidance for specification option: RHS/ SHS dependent on application, contact manufacturer for details. Manufacturer guidance Galvanized after manufacture and polyester powder-coated to match fencing.
Post foundations	Set posts in holes 300 mm diameter x 800 mm deep.
Panels	Electrofused steel grating consisting of vertical flat bars with horizontal wires. Guidance for specification option: Top and bottom flat bars. Galvanised and polyester powder-coated to a minimum of 60 µ.
Site applied finishes	Polyester powder-coated to minimum 80 µ.

Height	930 mm. 1194 mm. 1326 mm. 1458 mm. 1722 mm. 1986 mm. 2118 mm. 2514 mm. Bespoke. Guidance for specification option: fencing can be made up of any combination of these sizes, contact manufacturer and insert requirement. Show more
Colour	Green. Guidance for specification option: As standard. RAL colour. Guidance for specification option: Consult manufacturer and insert requirement.
Width	1992 mm.
Mesh size	62 x 132 mm.
WireDiameter	25 x 2 mm vertical flat bars, 4.5 mm horizontal wires. Tops and bottoms 25 x 4 mm flat bars.
Installation	Bottom of panel approx. 40 mm above ground .
