CLD SlideMaster SR1 Security Gate - Sliding Gate

Verified by manufacturer 3 days ago

CLD Physical Security Systems Product certifications:
  • BRE Certificate

    BRE Certificate

    Certificate type

Open mesh aluminium security gate system with steel mesh infill.

Jump to:
BOS
+44 (0)1270 764751 Website

Application

The CLD SlideMaster SR1 gates are designed to provide high-security solutions across a variety of critical and sensitive sites, seamlessly integrating with CLD Securus fencelines. Their robust construction, LPCB-tested 60-second minimum delay against attacks, and Secured by Design accreditation make them a police-preferred choice for the following applications:

  • Industrial and Retail Parks: Ensures secure access control for commercial facilities, protecting valuable assets and preventing unauthorized entry.
  • Data Centres: Safeguards sensitive IT infrastructure with high-security gates that resist cutting and scaling, maintaining operational integrity.
  • Airports and Seaports: Provides reliable perimeter security for critical transport hubs, meeting stringent safety and security requirements.
  • Ministry of Defence (MOD): Meets the demanding security standards of military installations, offering robust protection against intrusions.
  • Schools, Colleges, and Universities: Enhances campus safety with secure, aesthetically pleasing gates that blend with fencing while deterring unauthorized access.
  • With features like automatic operation, clear drive-through widths up to 8000 mm, a full range of panel infills, and customisable RAL colours, the SlideMaster SR1 gates deliver both functionality and versatility for these diverse applications.

Description

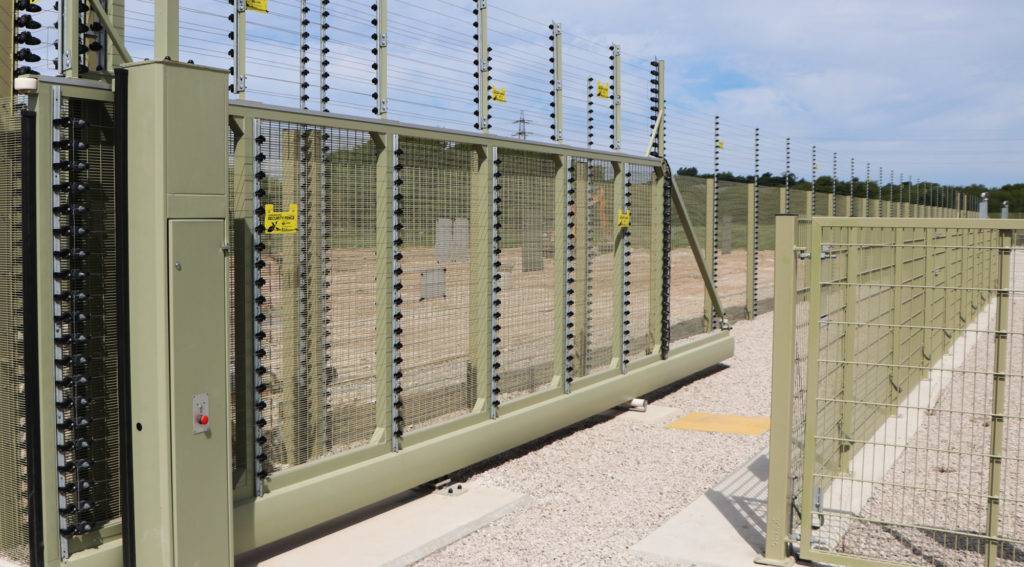

CLD SlideMaster SR1 gates have been developed to blend in with a CLD Securus fenceline. Offering good visibility, they are difficult to cut through and scale. They are tested by the loss prevention certification board (LPCB) to guarantee a minimum delay of 60 seconds against attack, CLD SlideMaster SR1 is also Secured by Design accredited, making it a police preferred specification for security.


Features and benefits:

  • Security rated.
  • Clear drive through widths up to 8000 mm.
  • Automatic operation.
  • Full range of panel infills.
  • Full range of RAL colours.

General information

Color

Green

Other

Guidance for specification option:

Any RAL colour.

Finish

Powder-coated

Zinc plated

Material

Steel

Aluminium

Shape

Rectangle

Width

Bespoke

Guidance for specification option:

1000-8000 mm.

Height

2480 mm

Warranty description

One year

Guidance for specification option:

Auto element.

15 year

Guidance for specification option:

Minimum of 15 years against manufacturing defects.

Uniclass

Pr_30_59_59_79 Sliding vehicular barriersPrimary

CAWS

Q40/45 Proprietary gates

Q40/570 Proprietary gates and posts

Q50/130 Gate

Q50/20 Gate

Product range

Access

Specification data - Sliding vehicular barriers

Format

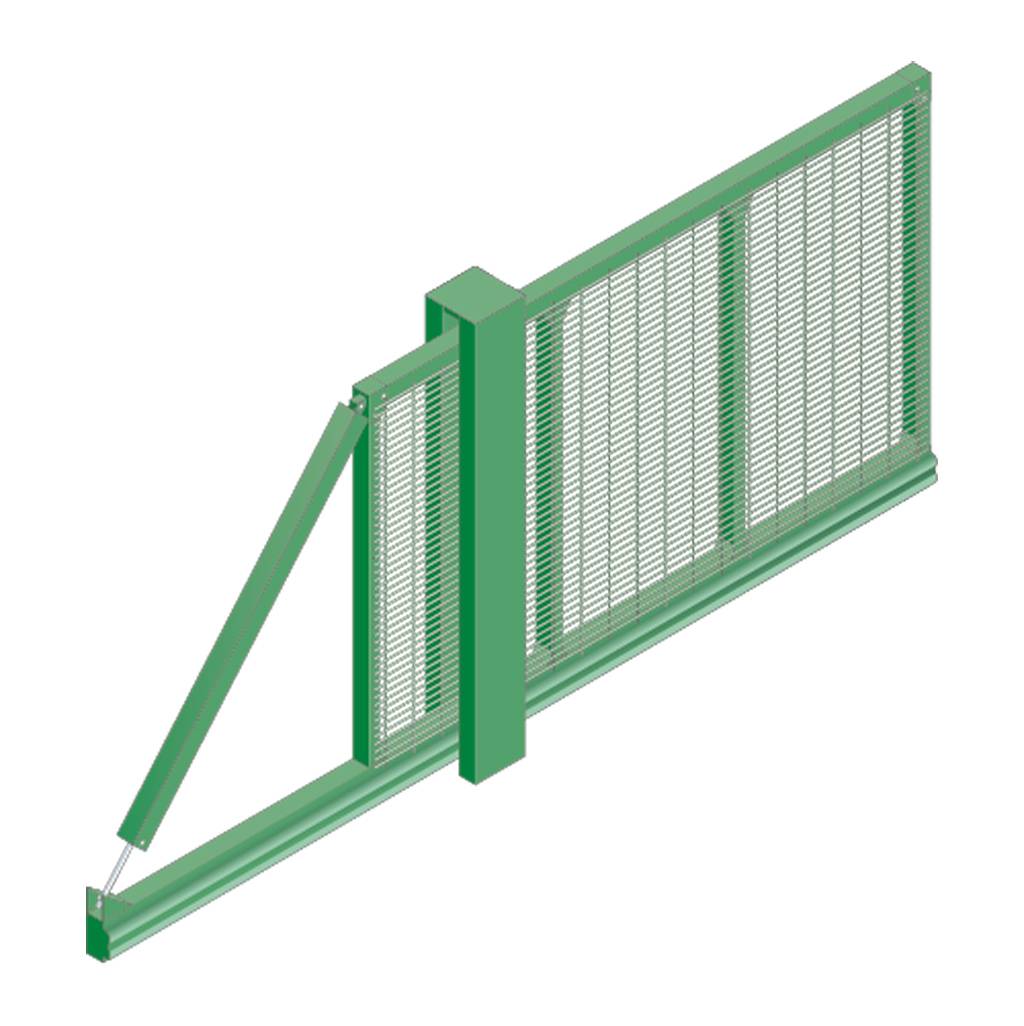

Cantilevered, sliding.

Method of operation

Automatic.

Barrier dimension

-

Height

2480 mm.

Span

-

Manufacturer guidance

Between 1000-8000 mm. Insert requirements.

Barriers

-

Type

Open mesh.

Material

Carbon steel.

Finish as delivered

-

Applied finish

Zinc-plated and polyester powder-coated to 60-80 µ.
Zinc-plated and polyester powder-coated to 160-200 µ.

Manufacturer guidance

With marine grade and metallics.

Colour

Green.

Guidance for specification option:

As standard.

RAL colour.

Guidance for specification option:

Consult manufacturer and insert requirement.

Locking mechanism

Automatic.

Frame

75 x 75 mm aluminium box with mesh infill.

Fixings

Main control tower, park post and support rollers to be rawl-bolted to cast concrete footings.

Post foundations

Concrete slab foundation to suit gate size.

Configuration

Single leaf sliding left.

Single leaf sliding right.

Nominal voltage

230 V single phase power the 100% duty cycle motor.

Opening speed

4 s/m.

Standards

To BS 1722-14:2017.

Panels

CLD Securus.

SecurityRating

LPS 1175 SR1 (Issue 7).

Sustainability data

Country of product manufacture

United Kingdom

Material

Steel
Aluminium

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit

Revit 2016

1

Product certifications

BRE Certificate

BRE Certificate

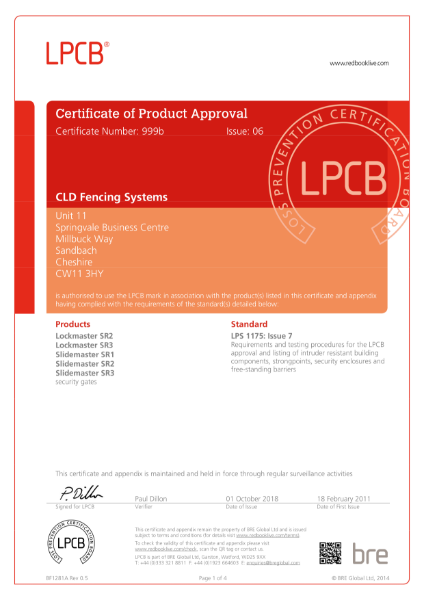

LBCB Certificate C999b

Literature

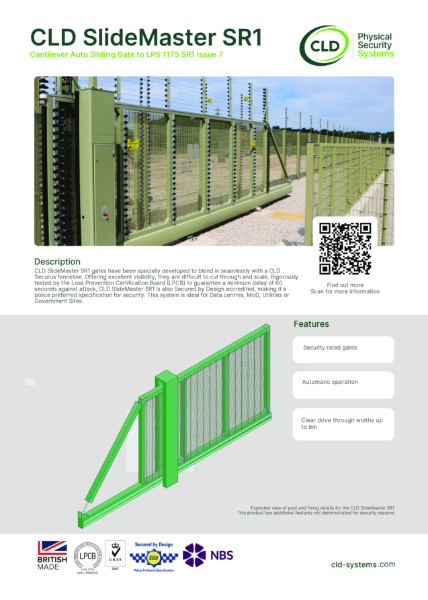

CLD SlideMaster SR1
