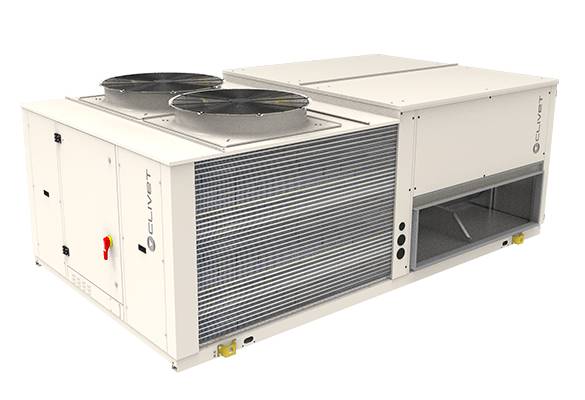

CLIVETPack3i CSNX-iY 20.2-40.4 RANGE

Verified by manufacturer 3 days ago

CSNX-iY 20.2

Clivet UK Variant:

Packaged high efficiency direct expansion rooftop air conditioner for high attendance buildings.

Jump to:
02392381235 Website

Application

Designed for outdoor applications and high attendance applications.

Description

CLIVETPack CSNX-iY units are high performance stand-alone air conditioners designed to treat large volumes of external air, used specifically in high occupancy venues such as: multiplex cinemas, convention rooms, restaurants and performance venues in general. The entire series is characterized by double refrigerant circuit with inverter compressors and REVO thermodynamic recovery.

Features and benefits:

  • Air flow - 4000 to 25 000 m³.
  • Cooling capacity: 49–146 kW.
  • Heating capacity: 45–130 kW.
  • Double independent refrigerant circuit with inverter controlled compressors.
  • Radial fans directly coupled to EC brushless motors (plug fans) providing constant or variable control of supply air.
  • Automatic and variable control of fresh air based on the air quality probe.
  • Innovative and patented REVO thermodynamic recovery.
  • Summer dehumidification function with hot-gas post-heating to increase comfort even with high latent loads.
  • Compatible to alternative heating solutions that can be used together with or instead of the heat pump: electric heaters, hot water coil, modulating gas module with condensation technology.
  • Free cooling function and Humidification systems integrated in the unit.
  • Filtration of air in several stages, from the efficiency class G4 to classes of absolute filtration (electronic filters with iFD technology).
  • UV-C lamps with active germicidal action against fungal spores, bacteria and viruses, for maximum air quality, effective against SARS-CoV-2.
  • Flexible configuration for supply and return air.
  • Modbus communication protocol supplied as standard.
  • Eurovent Certified.
  • ErP Compliant.

General information

Color

Cream

Finish

Galvanized

Powder-coated

Material

Steel

Aluminium

Copper

Shape

Rectangle

Length

2650 mm

3550 mm

3970 mm

Width

2300 mm

Height

1480 mm

1510 mm

1910 mm

Warranty description

One year

Uniclass

Pr_70_60_37_02 Air-to-air heat pumpsPrimary

CAWS

T90/500 Air-to-air heat pumps

SKU Code

CSNX-iY

Specification data - Air-to-air heat pumps

Classification data

Standards

-

Safety and environmental

To BS EN 378-1 and BS EN 378-2.

Test requirements

To BS EN 14511-1, BS EN 14511-2, BS EN 14511-3 and BS EN 14511-4.

Heat pump type

Self-contained.

Mode

Cooling.

Coefficient of performance (minimum)

3.23.

Energy efficiency

3.10.

Integrated services fittings

-

Manufacturer guidance

Consult manufacturer for details.

Output

-

Heating

45.4 kW.

Cooling

49.7 kW.

Fan

-

Type

Supply and exhaust: radial fan, electronically commutated (RAD/EC).
External: axial fan, electronically commutated (AX/EC).

Fan drive

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Electrical supply type

Three-phase.

Guidance for specification option:

Standard power supply: 400 V, three-phase, 50 Hz.

Compressor

-

Type

Rotary vane.

Guidance for specification option:

Number of compressors: two.

Drive

Inverter-driven.

Sound power level

83 dB(A).

Accessories

Thermal FREE-COOLING (standard) - FC.
Enthalpy FREE-COOLING - FCE.
REVO exhaust air thermodynamic energy recovery (standard) - REVO.
Two-rows hot water coil - CHRW2.
3-way modulating valve - 3WM3.
2-way modulating valve - 2WM1.
6 kW electric heaters - EH06.
9 kW electric heaters - EH09.
13.5 kW electric heaters - EH12.
Condensing gas heating module with modulating control 35 kW - GC01X.
Condensing gas heating module with modulating control 44 kW - GC08X.
Rubber antivibration mounts - AMRX.
Rubber antivibration mounts for unit and gas module - AMRMX.
Rubber antivibration mounts for unit and UV-C lamps module - AMRWX.
Roof curb - RCX.
Finned coil protection grill - PGFC.
Anti-hail protection grilles - PGCCH.
Sandwich panels on the handling zone in M0 fire reaction class - PCMO.
Hot gas re-heating coil - CPHG.
Downward air supply - M3.
Upflow air supply - M5.
Sideward supply - ML.
Downward air return - VENH.
Modulating motorized outdoor air damper (standard) - SERMD.
High static pressure fan - PVAR.
Constant supply airflow - PCOSM.
Variable airflow with pressure probe on the unit - PVARDP.
4-20mA signal for supply and exhaust air flow rate modulation - PVW.
Air quality probe for CO₂ rate check - PAQ2.
Air quality sensor for CO₂ and VOC rate check - PAQCV.
Double air quality probe for CO₂ and VOC rate check - PAQCV2.
External CO₂ signal management - PMAG.
High efficiency F7 air filter (ISO 16890 ePM1 55%) - F7.
High efficiency F9 air filter (ISO 16890 ePM1 80%) - F9.
Electronic filter with H7 efficiency (ISO 16890 ePM1 90%) - F9E.
Differential pressure switch for dirty air filters - PSAF.
3 kg/h immersed electrodes steam humidifier - HSE3.
6 kg/h immersed electrodes steam humidifier - HSE6.
9 kg/h immersed electrodes steam humidifier - HSE9.
External humidifier management with 0-10 V signal - PUE.
Application for low outdoor temperature - LTEMP1.
Application in spaces with forced air exhaust at variable flow and exhaust section - EXFLOWK.
UV-C lamp module with germicidal effect - UVCX.
Serial communication module for Modbus TCP/IP, BACnet IP, BACnet MSTP - CMSC13X.
Temperature control with thermostat - CTT.
Temperature and humidity ambient control with built-in probes - CSOND.
Management of ambient temperature probes - MDMTX.
Management of ambient temperature and humidity probes - MDTWX.
Advanced monitoring and management ambient probes - MDMAXX.
IoT industrial module for cloud based interoperability and services - IOTX.
Smoke detector - DESM.
Energy meter - CNET.
Cooling and Heating Capacity Meter - CHM.
Demand Limit - DML.
Set up for shipping via container - PTCO.

Manufacturer guidance

Consult manufacturer's literature for details.

Refrigerant

R32.

Guidance for specification option:

Double independent refrigerant circuit.

Air flow

6000 m³/h.

Manufacturer guidance

Supply air flow rate.

Dimensions

2650 x 2300 x 1480 mm.

Manufacturer guidance

Length x width x height.

Weight

968 kg.

Manufacturer guidance

Operating weight.

Sustainability data

Material

Steel
Aluminium
Copper
