Cloud - Solid Grade Laminate
Verified by manufacturer 27 days ago

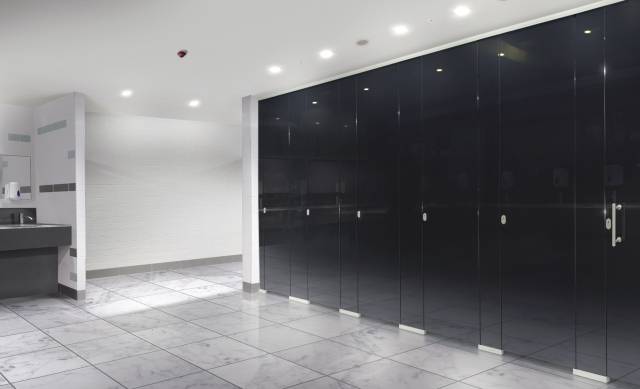

Full height, flush fronted solid grade laminate toilet cubicle system with rebated mating style and hidden fixings.
Application
Suitable for the commercial washroom sector.
Description
A highly engineered, full height, flush fronted toilet cubicle system that has been developed for the commercial washroom sector. Manufactured using solid grade laminate, machined components and aluminium extrusions.
Features and benefits:
- Designed to be full height with a max floor to ceiling height of 2700 mm.
- Unique rebated feature ensuring a flush finish eliminating sight lines.
- Engineered and adjustable self-closing hinges.
- Hinges are spring loaded with automatic opening or closing function.
- Machined lock with concealed fixings and emergency release mechanism.
General information
Color | Silver |
Finish | Satin Guidance for specification option: Satin Silver Anodized. Anodized |
Material | Laminate Guidance for specification option: Solid Grade Laminate. Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | K32/10 Panel cubicles K32/120 Panel cubicles |
Specification data - Panel cubicle systems
Panels | 16 mm Solid Grade Laminate.12 mm Solid Grade Laminate. |
Panel supports | Aluminium extrusions, satin anodized (25 microns), silver.Guidance for specification option: Division panels are attached through hinge/ bracket using aluminium fittings with eccentric adjustment feature. |
Pilasters | 16 mm Solid Grade Laminate.12 mm Solid Grade Laminate. |
Doors | 16 mm Solid Grade Laminate.12 mm Solid Grade Laminate. |
Lippings | All edges polished, exposed corners with small radius. |
Hardware | Satin anodized aluminium hinges, brackets and fittings. |
Curtains | Not required.Required.Guidance for specification option: Available on request. |
Samples required | Not required.Required.Guidance for specification option: Available on request. |
System accessories | Not required.Wet/ dry dividing fin.Towel rail.DDA handle.Bench seating.Aluminium latch.Hydraulic door closers. |
Cubicle height (overall) | 2500 mm. Guidance for specification option: Standard. Bespoke sizes available, consult manufacturer and insert requirement. |
Swing | Inward opening. Outward opening. Guidance for specification option: Includes satin anodized pull-handle. |
DDA/ Ambulant cubicle provision | Not required. DDA compliant handle set with lever-action turn. Horizontal grab rails. Two coat hooks to DDA compliant cubicles. Vertical grab-rails. |
Seats | 12 mm Solid Grade Laminate Bench Seats. 12 mm Post-Formed Solid Grade Laminate Bench Seats. |
Duct system | Not required. Trojan Duct Panel System (Aluminium Framed). Guidance for specification option: To be specified separately. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Manufacturer guidanceEurope mix. |
Country of product manufacture | United Kingdom |
Recyclability | Laminate, Aluminium Manufacturer guidanceMedium. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceSolid Grade Laminate, Aluminium. |
