Club - Wet - Panel Cubicle

Verified by manufacturer 5 months ago

Prospec Ltd

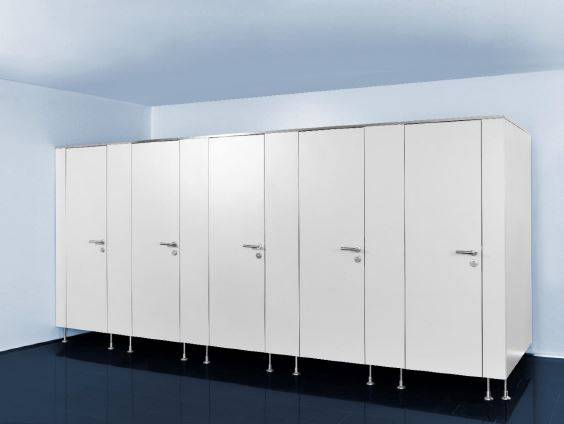

Flush fronted panel cubicle for use in wet environments.

Jump to:
+44 (0)1709 377147 Website

Application

Showering areas.

Description

Flush fronted panel cubicle, manufactured from 30 mm high pressure laminate (HPL) faced polyurethane core.


Features and benefits:

  • Embedded aluminium profiles give a rebated appearance and provide maximum privacy.
  • Laser edge polypropylene (PP) banding creates an invisible bond with increased moisture and dirt resistance.
  • Includes nylon door furniture with stainless steel and aluminium fittings.
  • Available in 25 colours.

General information

Color

Other

Finish

-

Manufacturer guidance

HPL Finish.

Material

Laminate

Guidance for specification option:

High Pressure Laminate.

Aluminium

Chipboard

Particleboard

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Specification data - Panel cubicle systems

Panels

30 mm HPL faced polyurethane (PU) core.

Panel supports

Adjustable aluminium 20 mm support legs with heavy duty nylon rosettes and concealed fixings.

Pilasters

30 mm HPL faced polyurethane (PU) core.

Doors

30 mm HPL faced polyurethane (PU) core.

Lippings

3 mm thick polypropylene (PP) laser edge banding.

Hardware

Concealed nylon indicator door latch, internal door knob with buffer, nylon hook.

System accessories

Not required.

Aluminium hardware package.

Guidance for specification option:

Includes handle, lock indicator, coat hook and buffer.

Headrail

Aluminium, powder-coated.

Cubicle height (overall)

2015 mm (including floor clearance of 150 mm).

Sustainability data

Contains Red List materials

No

Country of material origin

-

Manufacturer guidance

Europe mix.

Country of product manufacture

Germany

Recyclability

Chipboard

Manufacturer guidance

Medium.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Aluminium, Chipboard.
