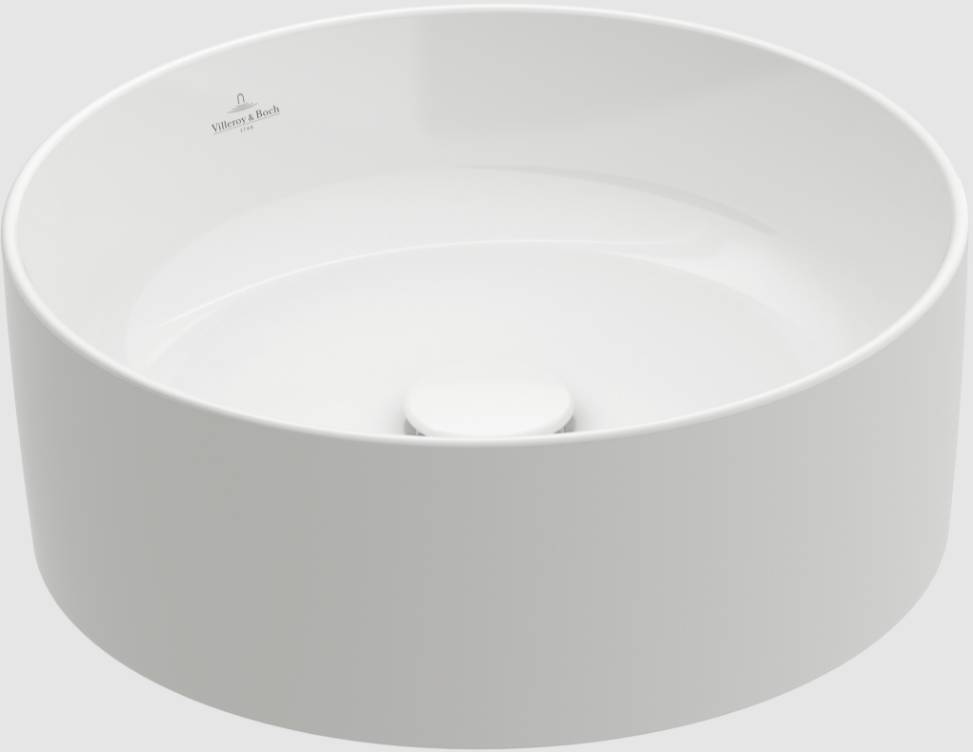

Collaro Surface-mounted Washbasin 4A1840

Verified by manufacturer 9 months ago

4A184001

Villeroy & Boch AG Variant:

Round surface mounted washbasin.

Jump to:
BOS
+49 (0) 6864 81 1500 Website

Application

Surface mounted.

Description

Round surface mounted washbasin.


Features and benefits:

  • TitanCeram.
  • Recommendation: to be installed with a gap of at least 50 mm between the washbasin and the wall.
  • Incl. template, fastening set included.
  • Complies with EN 31 and EN 14688.
  • Please order non-closable drain valve separately.

General information

Color

White

Finish

Gloss

Matt

Material

Ceramic

Shape

Circle

Width

400 mm

Uniclass

Pr_40_20_96_42 Integral washbasins and vanity topsPrimary

CAWS

N13/335 Washbasins

N13/30 Washbasins

Specification data - Integral washbasins and vanity tops

Form

Single bowl.

Materials

-

Basins

-

Body

Sanitary ceramic.

Finish and colour

White Alpin, gloss.

Size

-

Basins

400 mm diameter.

Water supply, overflow and waste holes

-

Water supply

No tap holes.

Guidance for specification option:

For wall-mounted washbasin mixers or tall pillar tap fittings, without tap hole area, when using a wall-mounted tap fitting, we recommend a projection of at least 210 mm.

Overflow

No overflow hole.

Guidance for specification option:

Without overflow, Please note: un-closable outlet valve must be used with models without overflow.

Waste

Pop up, one per basin.

Integral accessories

Not required.

Unclosable outlet valve 6808 00.

Weight

9.3 kg.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

SketchUp
-

1

3Ds Max
-

1

OBJ
-

1

Revit
-

1

ARCHICAD
-

1
