Commercial Access Ladder - Max Floor to Floor Height 5 m
Verified by manufacturer 3 months ago
AL4C - Fixed
AL4C - Fixed

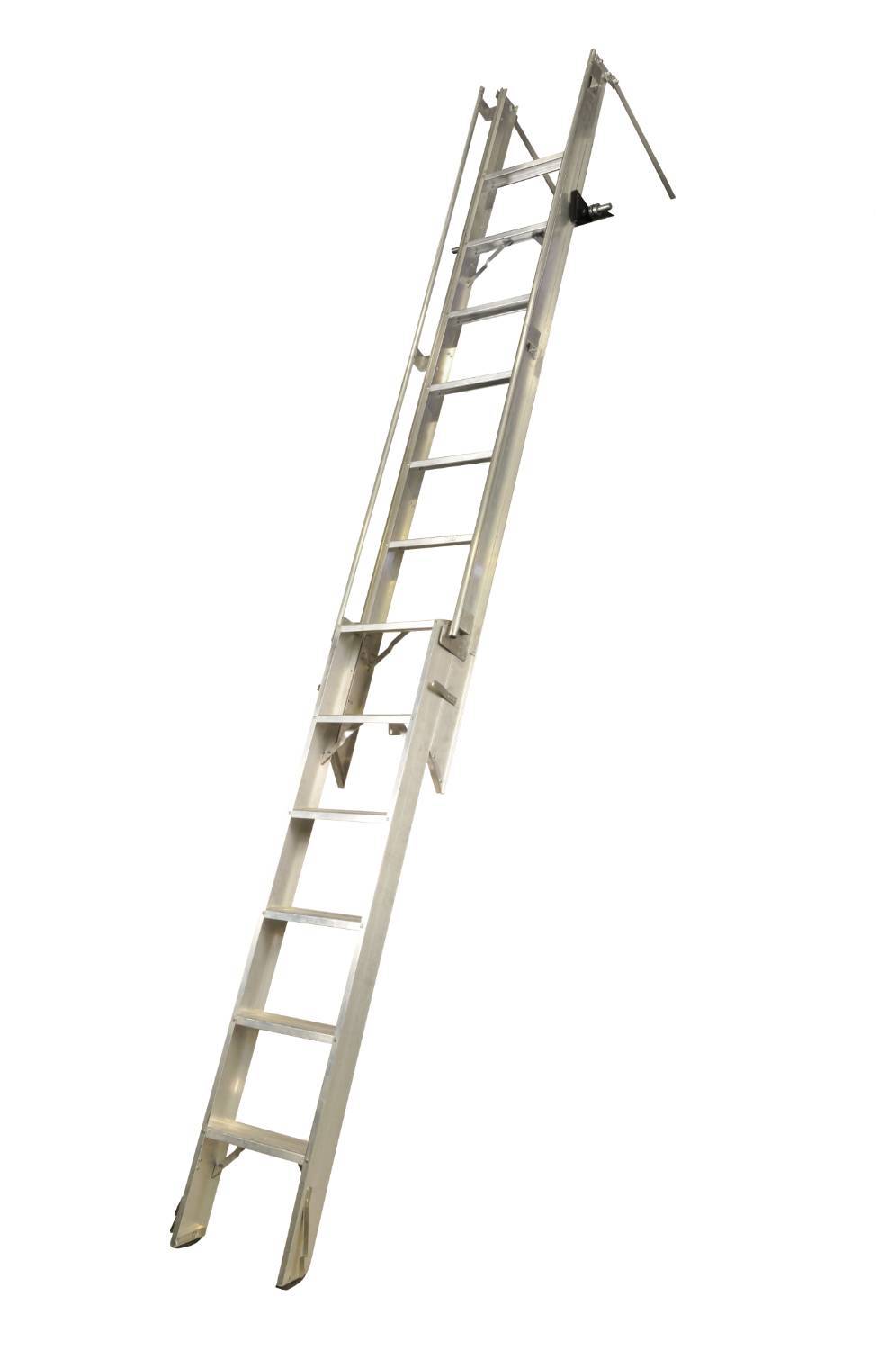

Commercial access ladder for ceiling and roof hatches.
Application
Suitable for ceiling and roof hatches.
Description
Commercial access ladder for ceiling and roof hatches. Made from extruded aluminium to give a high strength to weight ratio and the additional benefit of corrosion resistance.
Features and benefits:
- Dual section ladder rated up to 150 kg, manufactured in accordance with EN 14975: 2006, A1: 2010.
- 75 mm or 100 mm tread depth (each tread has a spur depth of 35 mm).
- Fitted with twin hand rails.
General information
Color | Silver |
Material | Aluminium |
Shape | Other |
Height | Bespoke 5000 mm Guidance for specification option: Maximum. |
Warranty description | Two year |
Uniclass | |
CAWS | L35/130 Ladder system L30/41 Loft ladders L30/421 Loft ladders |
Specification data - Aluminium loft ladders
Standard | To BS EN 14975. |
Format | Pull-out sliding. |
Strings | |
Number of sections | Two. |
Floor-to-ceiling height (minimum) | Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidanceMade to order for floor-to-floor heights up to 5 m. |
Handrails | Top section.Guidance for specification option: Twin handrails. |
Treads | 75 mm.100 mm.Manufacturer guidanceTread depth. Each tread has a spur depth of 35 mm. |
Loft trapdoor | |
Minimum opening size (length x width) | Guidance for specification option: Consult manufacturer and insert requirements. |
Construction | Guidance for specification option: Consult manufacturer and insert requirements. |
Operating mechanism | Guidance for specification option: Consult manufacturer and insert requirements. |
LadderConfiguration | Fixed and stored in the ceiling void. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

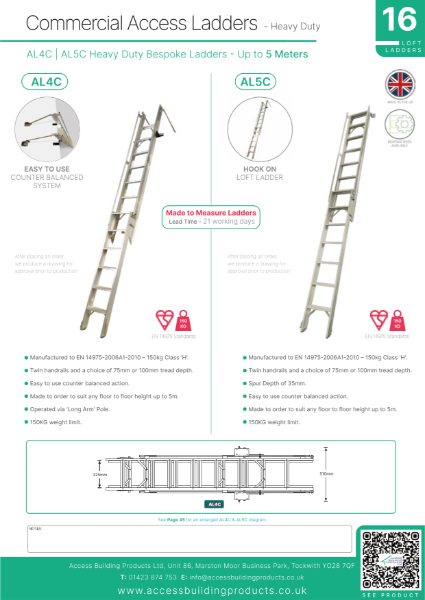

AL4 Commercial Access Ladder
AL5C Commercial Access ladder [Hook on]
AL4C-AL5C
AL5C Technical
