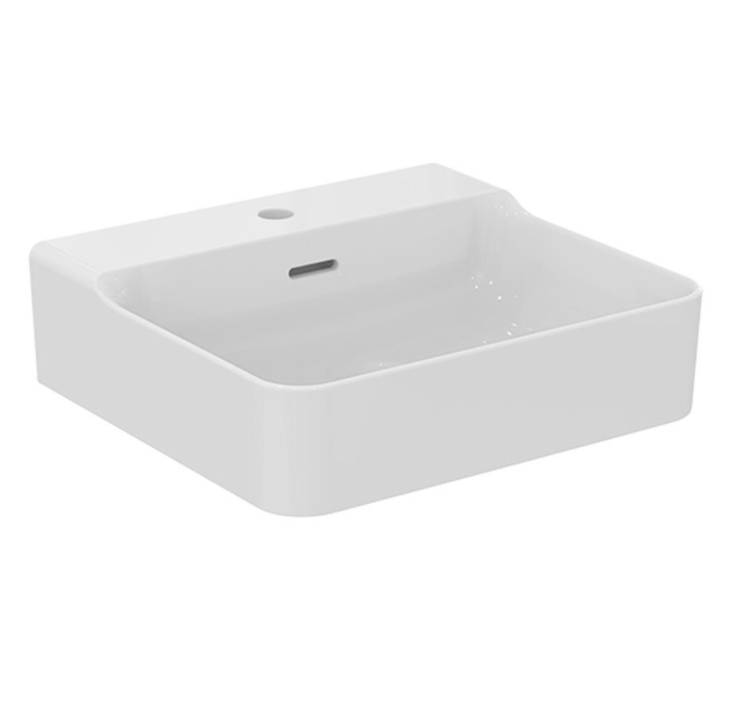

Conca 50 cm Washbasin, Grinded Underneath

Name: Conca 50 cm Washbasin, Grinded Underneath
Brand: Ideal Standard (UK) Ltd
SKU: N3VtB5qAz4NEP7TWAs8vR

Verified by manufacturer over a year ago

Third party certifications:

50 cm, one tap hole washbasin with overflow, grinded underneath.

Jump to:

Application

For use as wall-mounted washbasin. Also suitable for worktop installation (flatness is ensured).

Conca 50 cm, one tap hole washbasin with overflow.

Features and benefits:

Designed by Palomba Serafini Associati.
One, three and no tap hole options.
With or without slotted overflow option.
Ground option for lay-on installation (non-grinded underneath version also available, specified separately).
Wall-mounted installation.
Washbasin wall mounted using E0157 wall fixing set with full pedestal mounted using two screws through the back of the basin (not supplied).

Uniclass	Pr_40_20_96_96 Wall-hung washbasinsPrimary
CAWS	N13/335 Washbasins N13/30 Washbasins

Standard	To BS EN 14688.
Form	Wall-hung wash basin.
Connecting dimensions	To BS EN 31.
Materials	-
Body	Fireclay.
Finish and colour	White (01). Silk White (V1).
Size	500 x 450 x 165 mm. Guidance for specification option: W x D x H.
Water supply, overflow and waste holes	-
Water supply	Single tap hole, centred. No tap holes. Three tap holes.
Overflow	Rear overflow hole. None.
Waste	Bottom waste outlet. No chainstay hole.
