Conceala 2 4.5/6L Cistern Long Lever Flush
Verified by manufacturer 5 months ago

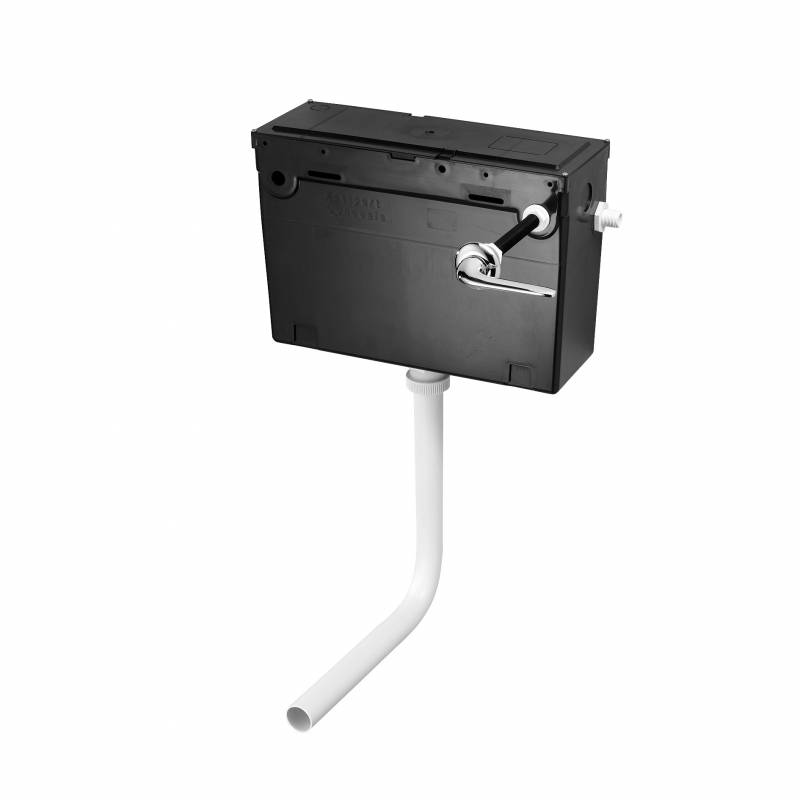

Low level WC cistern with single flush syphon.
Application
WC flushing device.
Description
Armitage Shanks Concela 2 low level, 4.5 litre WC cistern, single flush syphon and side supply.
Features and benefits:
- Chrome plated lever to operate.
- Internal overflow.
- Plastic flushbend.
- 4.5 or 6 litre delay fill.
- Lever supplied with cistern is suitable for 150 mm max wall thickness.
- Longer levers for thicker walls can be purchased.
- Water Regulations Approval Scheme (WRAS)-approved.
General information
Color | Other |
Material | Plastic |
Shape | Rectangle |
Length | 150 mm |
Width | 410 mm |
Height | 285 mm |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC cisterns
Standard | To BS EN 14055. |
Approvals | Water Regulations Approval Scheme (WRAS)-approved. |
Form | Low-level, exposed. |
Operation | Lever handle. |
Materials | |
Body | Plastics. |
Finish and colour | Natural/ no finish. |
Capacity | 4.5 L. |
Water supply, overflow and outlet holes | |
Water supply | Side inlet.Bottom inlet. |
Overflow | None (internal). |
Outlet | Bottom outlet. |
Integral accessories | Not required.S4491 - Lever flushing Conceala 2 extended 250 mm.S4492 - Lever flushing Conceala 2 extended 400 mm. |
Weight | 3 kg. |
