E7295 - Two tap holes

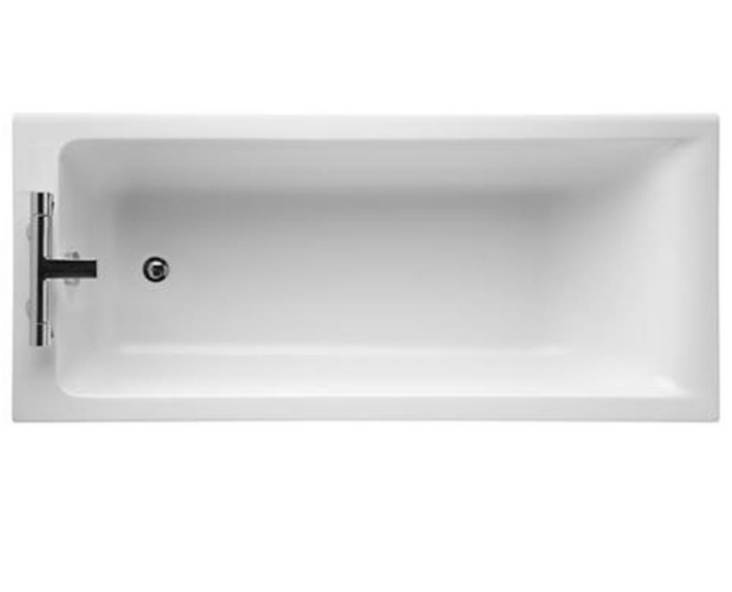

Concept 170 x 75 cm Idealform bath with two or no tapholes.
Suitable for domestic and hotel applications.
The gently sloped ergonomic interior design matched to the extensive contemporary Concept range.
Features and Benefits:
Color | White |
Material | Guidance for specification option: Idealform. |
Shape | Rectangle |
Length | 1695 mm |
Width | 495 mm |
Height | 540 mm |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Form | Rectangle. |
Standards | To BS EN 14516. |
Materials | Idealform. |
Colour | White. |
Size | 1695 x 745 x 540 mm.Manufacturer guidanceLength x width x height. |
Volume to overflow (maximum) | 186.0 L. |
Water supply, overflow and waste holes | |
Water supply | Two tap holes. |
Waste | Bottom waste outlet. |
Integral accessories | Not required.Thermostatic Valve - A5901.Guidance for specification option: TMV thermostatic mixing valve, 22 mm. Brassware - B0730.Guidance for specification option: Tempo 2 hole bath filler. Bath Waste - E1486.Guidance for specification option: Luxury bath pop-up waste and overflow. Bath Front Panel - E3194.Guidance for specification option: Unilux 170 cm front panel. Bath End Panel - E3195.Guidance for specification option: Unilux 75 cm end panel. Trap - S8970.Guidance for specification option: Trap 1½" plastic P with 75 mm seal, multi-purpose outlet suitable for plastic and BS copper pipe. |
Weight | 28.50 kg. |
