E1521 - 180 x 70 cm

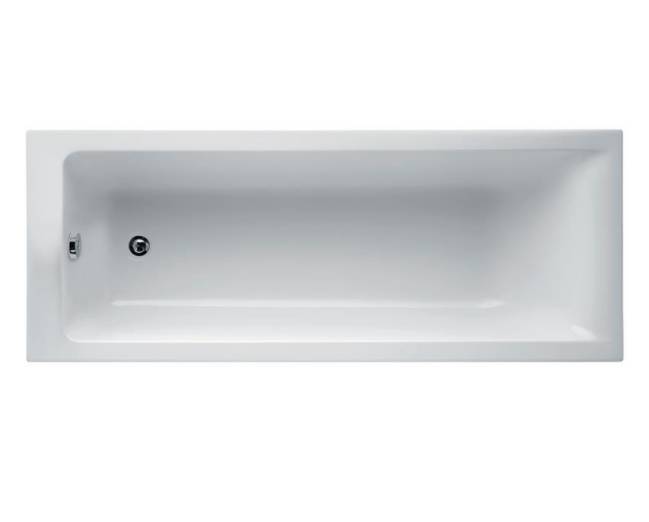

180 x 70 / 80 cm rectangular Idealform bath with no taphole.
Suitable for domestic and hotel applications.
The gently sloped ergonomic interior design matched to the extensive contemporary Concept range. The larger 1800 mm bath has a choice of two widths 70 cm and 80 cm, both without tapholes.
Features and Benefits:
Color | White |
Material | Guidance for specification option: Idealform. |
Shape | Rectangle |
Length | 1795 mm |
Width | 795 mm 695 mm |
Height | 540 mm |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Form | Rectangle. |
Standards | To BS EN 14516. |
Materials | Idealform. |
Colour | White. |
Size | 1795 x 695 x 540 mm.Manufacturer guidanceLength x width x height. |
Volume to overflow (maximum) | 190.0 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Waste | Bottom waste outlet. |
Integral accessories | Not required.Thermostatic Valve - A5901.Guidance for specification option: TMV thermostatic mixing valve, 22 mm. Brassware - A7051.Guidance for specification option: Connect Air single lever 2 tap hole bath filler. Bath Waste - E1486.Guidance for specification option: Luxury bath pop-up waste and overflow. Bath Front Panel - E4798.Guidance for specification option: Unilux Plus+ 180 cm front panel. Trap - S8970.Guidance for specification option: Trap 1½" plastic P with 75 mm seal, multi-purpose outlet suitable for plastic and BS copper pipe. Bath End Panel - E3169.Guidance for specification option: Unilux 70 cm end panel. |
Weight | 22.90 kg. |
