Concrete Pipes - Below Ground Drainage

Verified by manufacturer 3 months ago

0300 mm Flexible Jointed Concrete Pipe: 1250 mm

Marshalls Civils & Drainage Variant:

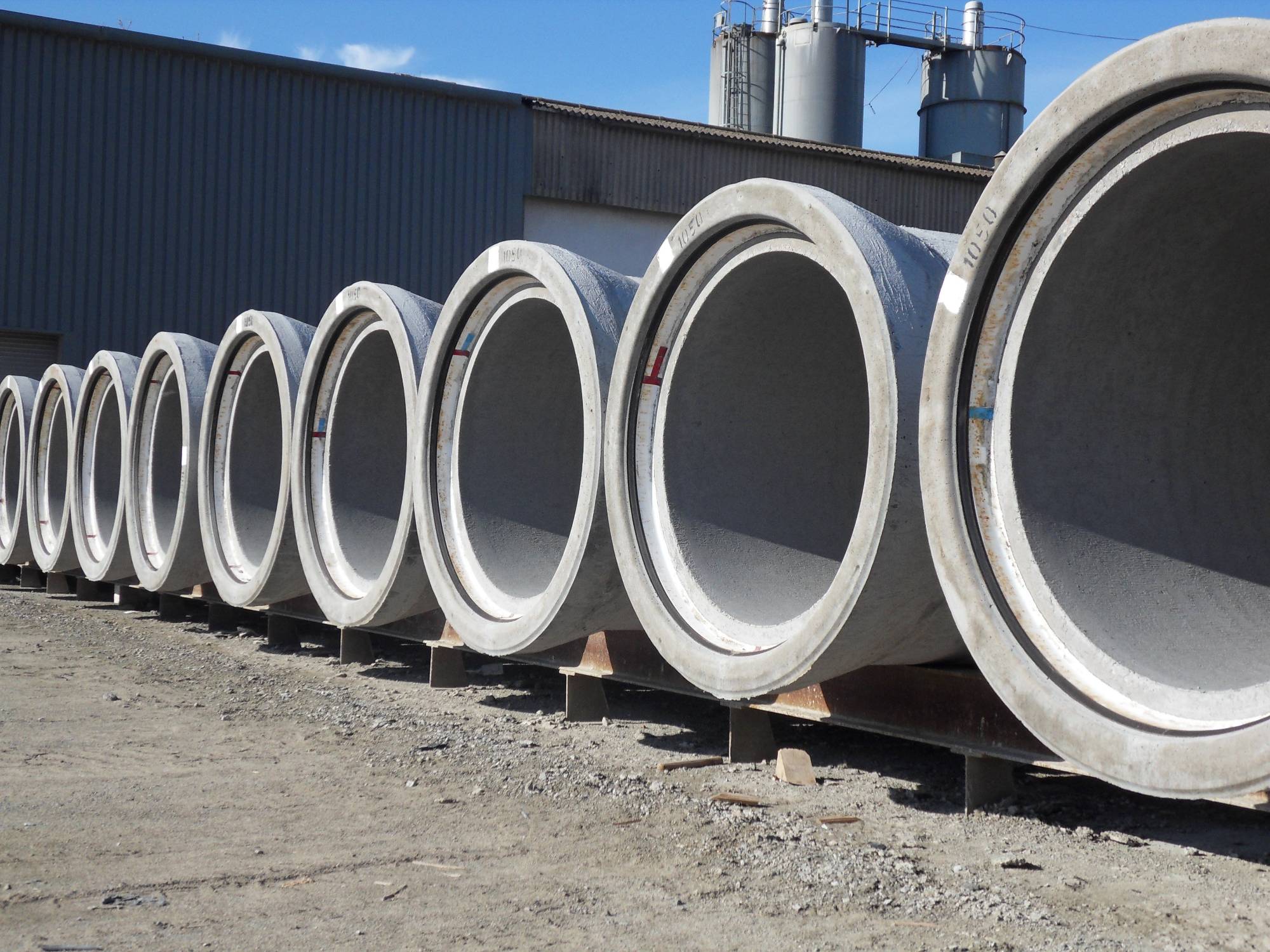

Precast concrete pipes with flexible spigot and socket joints.

Jump to:
+44 1179 814500 Website

Application

For use in both foul and surface water applications

Description

Marshalls Civils & Drainage offer an extensive range of precast concrete pipes with flexible spigot and socket joints from 300 mm to 1800 mm to BS EN 1916:2002 Class 120, ovoid pipes and perforated pipes for use in both foul and surface water applications.


Concrete sewer pipes dating back to Roman times have been discovered in the United Kingdom and users of Marshalls Civils & Drainage precast concrete pipes have the security of a design life of 120 years that ensures lifetime costs are kept to a minimum.


All precast concrete pipes manufactured to class 4 (DC4) sulphate resistance in accordance with the recommendations of BRE Special Digest. With inherent strength and durability, concrete is an environmentally friendly and cost-effective material.


Features and benefits:

  • Increased site cost savings.
  • Fast and easy installation.
  • Lower environmental impact.

General information

Color

Grey

Finish

Cement

Material

Precast concrete

Shape

Circle

Length

2500 mm

Manufacturer guidance

Rocker pipe / Butt pipe length.

Width

300 mm

375 mm

450 mm

525 mm

600 mm

Show more

Manufacturer guidance

Concrete pipes offered in a variety of diameters

Height

300 mm

375 mm

450 mm

525 mm

600 mm

Show more

Manufacturer guidance

Concrete pipes offered in a variety of diameters

Warranty description

120 year

Uniclass

Pr_65_52_07_16 Concrete plain wall below-ground drainage pipes and fittingsPrimary

CAWS

R12/407 Manholes and inspection chambers – concrete

R12/62 Manholes and inspection chambers – concrete

R12/342 Pipes, bends and junctions – concrete

Specification data - Concrete plain wall below-ground drainage pipes and fittings

Standards

To BS 5911-3 and BS EN 1916.

Form

Circular, solid wall.

Integral accessories

Guidance for specification option:

Contact manufacturer and insert requirement.

Certification

CE Marked.

Design chemical class

DC-4.

Length

1250 mm.

Manufacturer guidance

Nominal Dimensions (A) mm.

OuterDiameter

480 mm.

Manufacturer guidance

Nominal Dimensions (B) mm.

Diameter

410 mm.

Manufacturer guidance

Nominal Dimensions (C) mm.

Deflection

2.4°.

Manufacturer guidance

Angular Deflection (Degrees).

Weight

217 kg.

Manufacturer guidance

Approx. weight of pipe.

Length

600 mm.

Manufacturer guidance

Rocker pipe / Butt pipe length.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Precast concrete

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

Dependent on pipe size:

Unreinforced 64 - 302

Reinforced 267 - 1,498
