Continuous Barrel Vault Rooflight B

Name: Continuous Barrel Vault Rooflight B
Brand: Lamilux Rooflights Ltd
SKU: ifmM37yGXr8RtEGrcHRad6

Verified by manufacturer 1 month ago

Opening vents incorporated for daily ventilation

Lamilux Rooflights Ltd

Third party certifications:

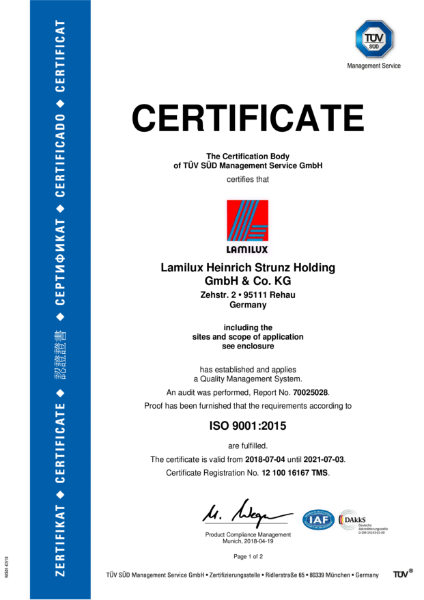

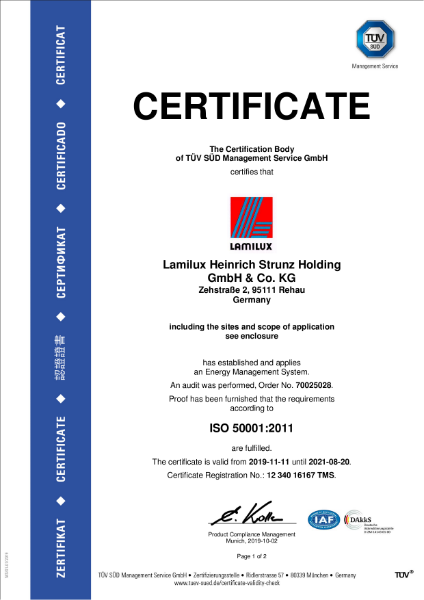

TUV - Safety and Quality Report
Certificate type
EPD
Certificate type

Polycarbonate and aluminium barrel vault rooflight for daylight, natural ventilation and SHEV integration.

Jump to:

01284 749051 Website

Application

Suitable for industrial halls or warehouses.

Description

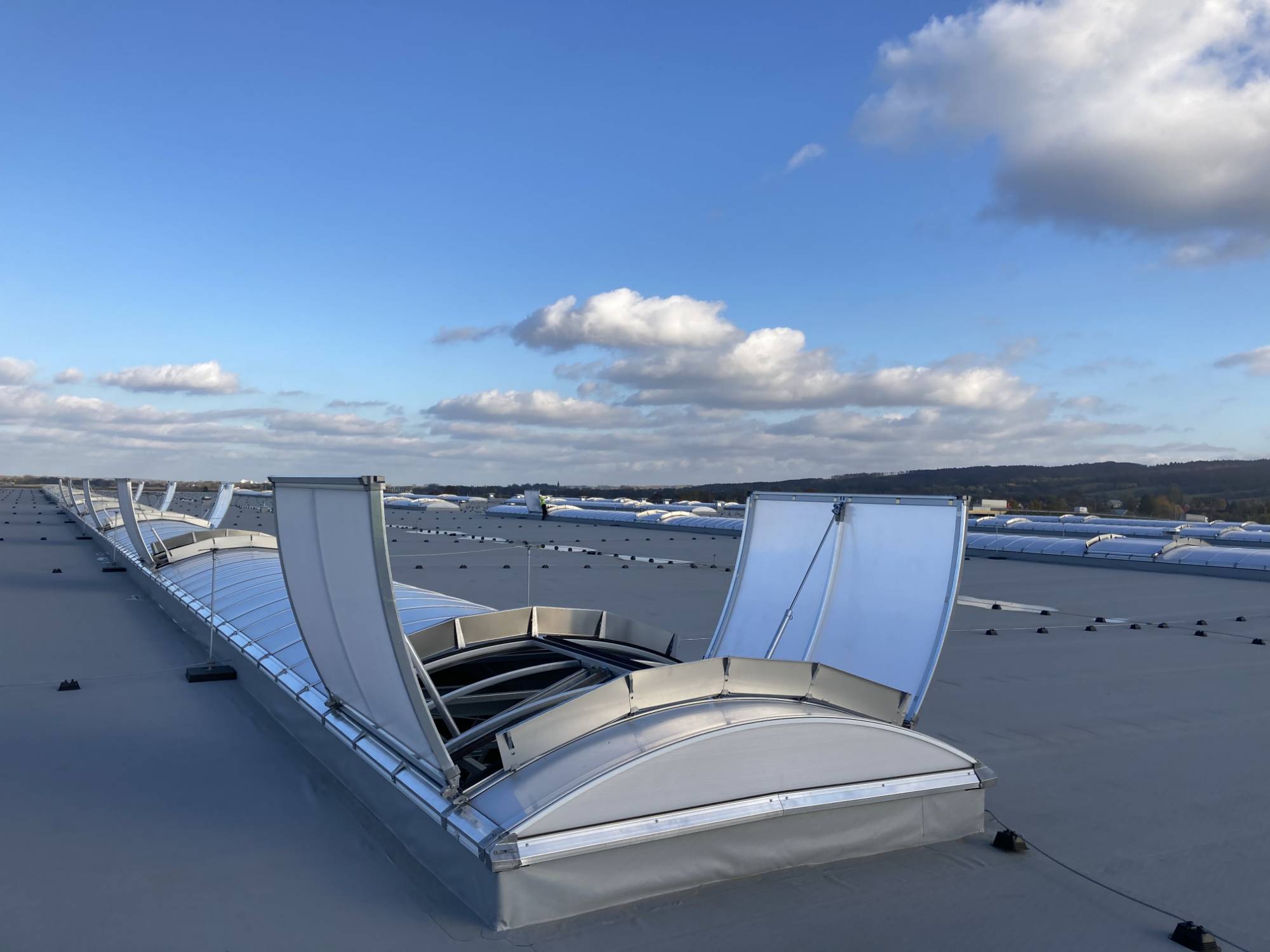

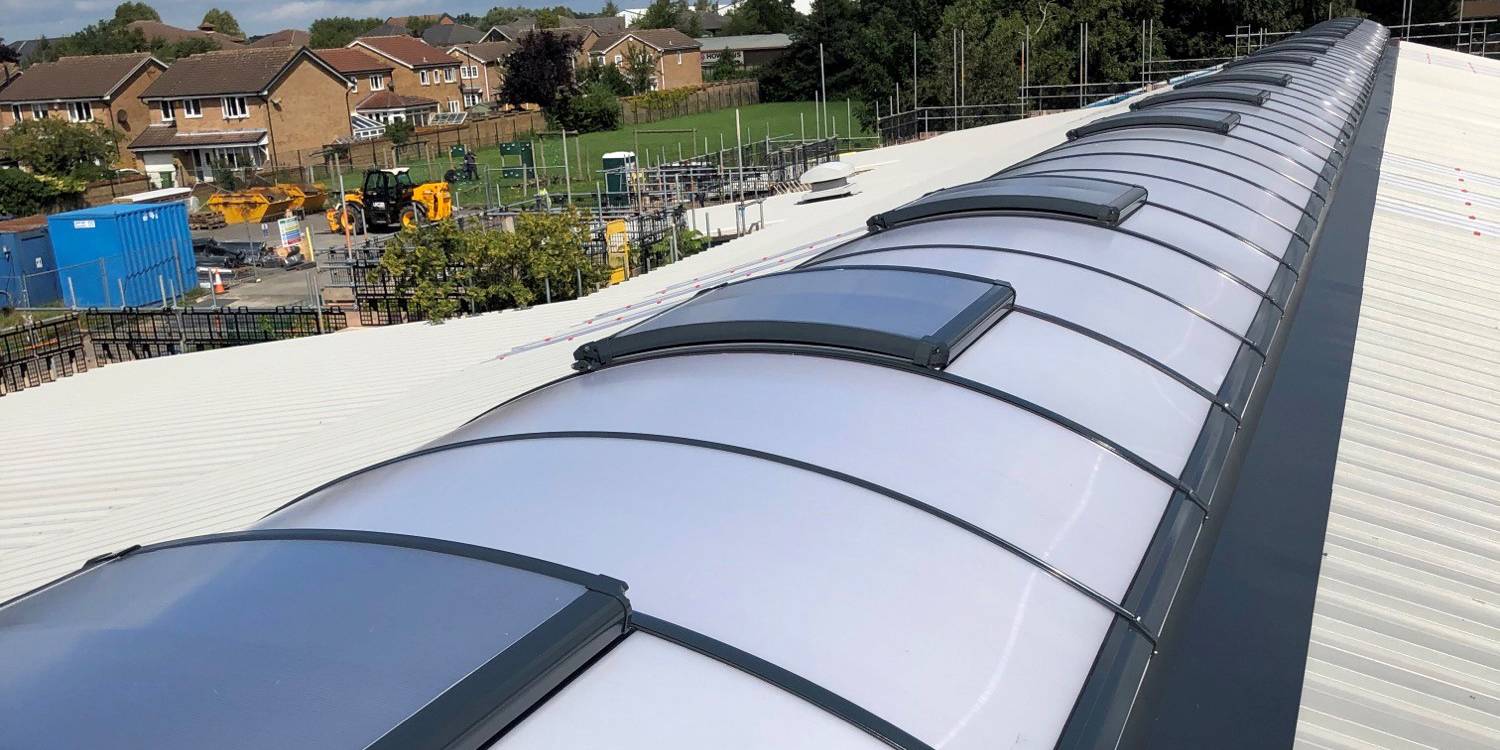

The Continuous Barrel Vault rooflight is the arched design rooflight suitable to improve both natural daylight and ventilation into industrial buildings. The rooflight offers a range of optional integrated vents for both natural and smoke ventilation. Furthermore the continuous rooflight offers high levels of wind and rain resistance and has enhanced isothermal characteristics in the overall construction – this results in no condensation whilst achieving maximum energy efficiency and thermal insulation.

The rooflight construction weighs approximately 15 kg/m² and is available in widths from 0.8 m to 6 m.

Continuous Rooflight Features and benefits:

Innovative and made-to-order solutions to suit project specific rooflight dimensions.
Thermally broken “isothermally balanced” frame free of thermal bridges to minimise condensation.
Optional integrated opening flaps serve both as natural ventilation as well as smoke and heat exhaust ventilation within the rooflight.
High level of stability and safety under wind, driving rain and snow loads.

General information

Color	Other
Finish	Mill
Material	Aluminium Polycarbonate
Shape	Other
Length	Bespoke
Width	Bespoke

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary Pr_30_59_98_03 Aluminium frame roof window units
CAWS	L10/490 Roof ventilators L10/45 Rooflights L10/460 Rooflights

Specification data - Framed rooflights

Form	Opening vents incorporated for daily ventilation.
Size	As drawing. Manufacturer guidance Widths of 800—6000 mm possible.
Product performance	-
Fire performance	-
Fire resistance	ETA-09/0347.
Whole window U-value	1.7 W/m2K.
Frame	-
Finish	-
Coating	PPC coated aluminium frame to mill finish as standard.
Colour	Guidance for specification option: Non-standard framework colours are available on request. Consult manufacturer and insert requirements.
Glazing or infill	-
Type	Glazed with multi-layered polycarbonate profiles PC10-4 fold + PC6-4. Manufacturer guidance Non-standard glazing options are available on request.
Construction	Multi layered.
Colour	Clear. Opal.
Operation	-
Type	Powered, electric.
Accessories	None (standard). Guidance for specification option: Non-standard options are available on request.

Resistance to wind load	Stability against max wind load 0.80 kN/m² to Class C4, EN 12210.
Sound insulation	Guidance for specification option: Varies upon glazing specification. Contact manufacturer for data sheet.
Light transmission	Guidance for specification option: Varies upon glazing specification. Contact manufacturer for data sheet.
SolarTransmittance	Guidance for specification option: Varies upon glazing specification. Contact manufacturer for data sheet.
Pitch	As drawing.
Upstand	Complete rooflight assembly designed to sit on to perimeter fully weathered kerbs (minimum 80 mm wide.) Concrete, timber or steel perimeter support around opening shaped and designed to suit (by others).
Standard	Approved in accordance with European Technical Approval ETA - 09/0347.
Ventilator	None - rigid rooflight. Single flap. Double flap. Asymmetric flap.
Standard	ACRM Class B non-fragile protection.
