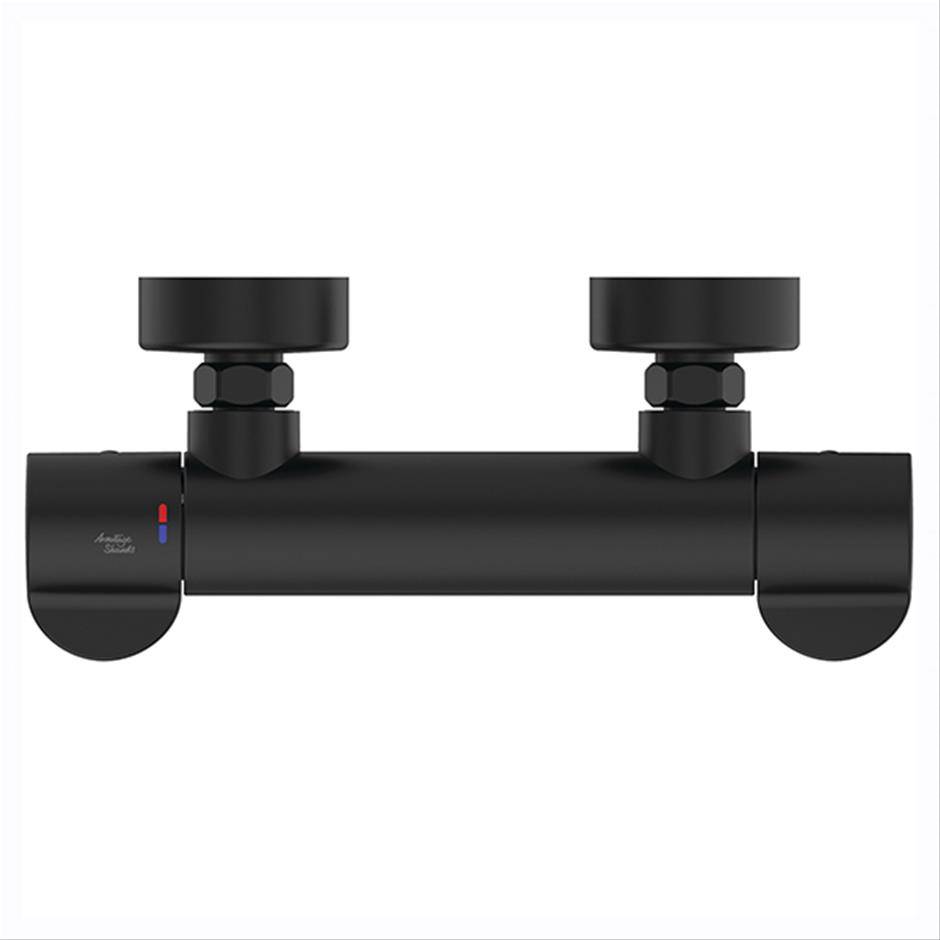

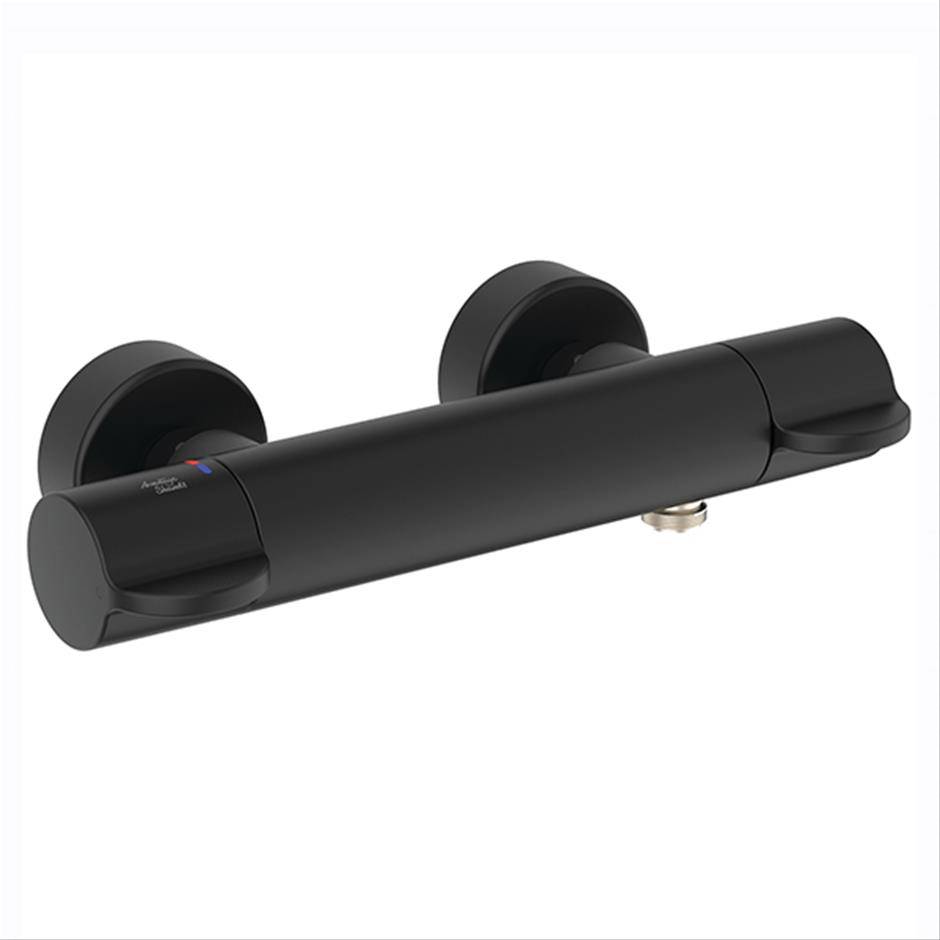

Contour 21+ Thermostatic Exposed Shower Valve
Verified by manufacturer today
XG - Silk black
XG - Silk black
NSF International
Certificate type
EPD
Certificate type
Thermostatic exposed shower valve with fast-fix wall bracket, thermal cleanse feature and available in chrome or matt black finishes.
Application
Specifically designed for applications where regular thermal cleanse to prevent bacterial growth is a product requirement and suitable for both domestic and commercial applications in a range of sectors:
- Healthcare.
- Hospitals.
- Hotels.
- Social housing.
- Sports and leisure.
- Student accommodations.
Description
Thermostatic exposed shower valve with fast-fix wall bracket, thermal cleanse feature and available in chrome or matt black finishes.
Features and benefits.
- Thermal cleanse feature to reduce risk of bacterial growth.
- Cool touch body.
- Fast-fix wall fixings.
- Lever handles.
- Document M and HTM/ HBN compliant.
- Domestic and commercial use.
- Can be used with an Armaglide kit and features easy to operate paddle handles.
General information
Color | Black Silver |
Finish | Matt Chrome |
Material | Brass |
Shape | Other |
Length | 128 mm |
Width | 295 mm |
Height | 70 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units N13/42 Shower mixer valves |
SKU Code | A6876XG |
GTIN/EAN | 4015413358026 |
Specification data - Shower thermostatic valves
Classification data | |
Approvals | NSF Reg4 S3 certified. |
Form | Wall-mounted thermostatic shower mixer valve. |
Materials | |
Body | Brass. |
Finish and colour | XG - matt black. |
Flow rate (maximum) | 19 L/min at 3 bar. |
Water supply temperature (maximum) | User-controlled. |
Integral accessories | Tow escutcheons. |
Dimensions | 70 x 295 x 128 mm. Manufacturer guidanceHeight x width x depth. |
Net weight | 2.14 kg. |
ConnectionType | G ½. Manufacturer guidanceShower hose connection thread. |
Handles | Two, lateral rotary knob handles. |
Compliance | Complies to HTM 04 01. |
Sustainability data
Material | Brass |
Product certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 DWG | - | 1 |
Product certifications
NSF International
NFS - A687AA, A6876XG Thermostatic Shower Mixers
EPD
EPD - Dual control and thermostatic fittings
Literature
Contour 21+ Thermostatic Exposed Shower Valve - Data Sheet
