Cover Plates - Aluminium Floor Cover Strips
Verified by manufacturer 2 months ago
AC38 DHC
AC38 DHC
Range of aluminium floor cover plates, part of the Designer Home Collection.
Application
Medium contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Description
Range of aluminium floor cover plates, part of the Designer Home Collection.
Features and benefits:
- 38 mm visible width (when installed).

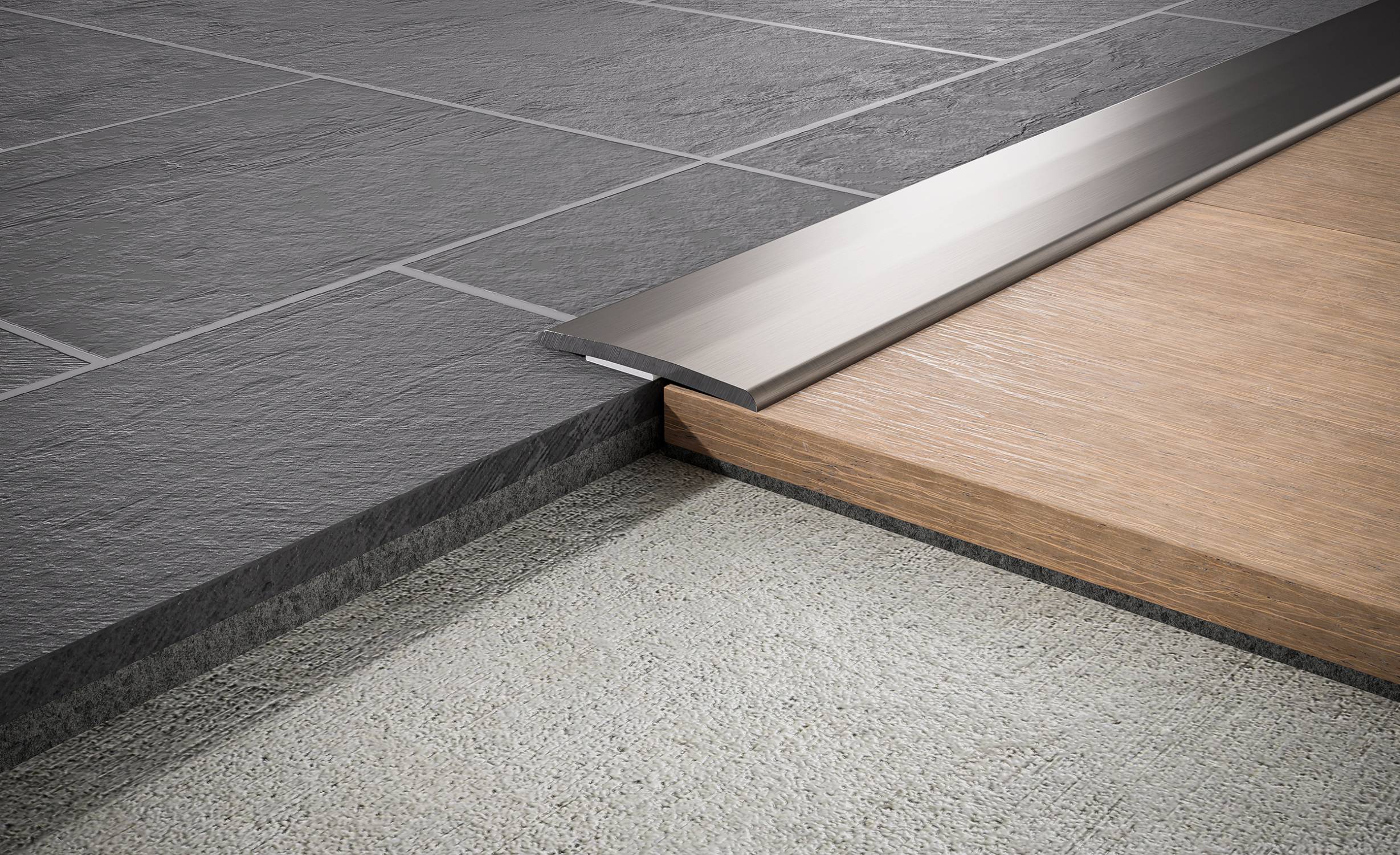

- AC38 DHC: Screw-fix cover plate for finishing carpet to carpet, carpet to hard floor and hard floor to hard floor junctions at the same level to protect the edges of the flooring materials.

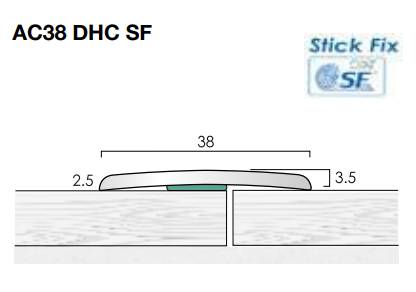

- AC38 DHC SF: Self-adhesive cover plate for hard floor to hard floor junctions at the same level to protect the edges of the flooring materials.
General information
Color | Silver Bronze Black Grey |
Finish | Bright Brushed Satin |
Material | Aluminium |
Shape | Rectangle |
Length | 2715 mm 1800 mm 900 mm |
Width | 38 mm |
Height | 3.5 mm |
Uniclass | |
CAWS | M51/510 Edgings and cover strips M50/740 Edgings and cover strips M50/70 Edgings and cover strips M51/510 Edgings and cover strips |
Product range |
Specification data - Floor cover strips
Configuration | One part. |
Dimensions | 38 x 2715 mm.38 x 1800 mm.38 x 900 mm.Manufacturer guidanceWidth (visible surface when installed) x length. |
Profile | Rounded edges. |
Material | Aluminium Alloy 6063 T6. |
Finish | As Colour where exposed to view. |
Colour | Bright.Bronze.Brushed stainless.Designer satin.Light bronze.Onyx.Guidance for specification option: Black. Pewter.Piano black. |
Matching fasteners | Required.Not required. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 100% recyclable at suitable disposal centres |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
AC38 BRIGHT TDS
AC38 BRONZE TDS
AC38 BRUSHED STAINLESS TDS
AC38 DESIGNER SATIN TDS
AC38 LIGHT BRONZE TDS
AC38 ONYX TDS
AC38 PEWTER TDS
