CS Louvres - Architectural Line Louvres - Double-Bank Architectural Louvres

Name: CS Louvres - Architectural Line Louvres - Double-Bank Architectural Louvres
Brand: Construction Specialties (UK) Ltd
SKU: 2j1mFMdN895BojGaGdVqmo

Verified by manufacturer over a year ago

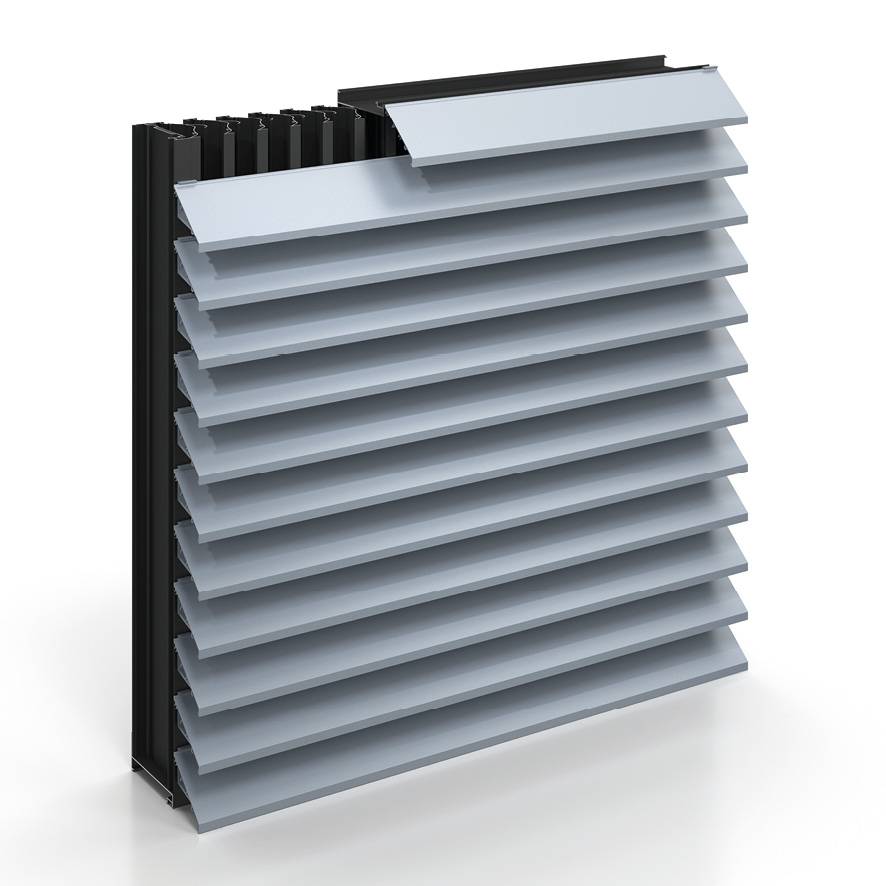

RS-8715 ventilation louvres with RSV-5700 rain defence louvres to the rear

Construction Specialties (UK) Ltd

Double-bank architectural louvres with a continuous blade appearance across a façade, offering a high level of rain defence.

Jump to:

+44 (0)1296 652800 Website

Application

Suitable for applications where a continuous blade appearance is required across a facade and a high level of rain defence needs to be maintained.

Description

Double-bank architectural louvres with a continuous blade appearance across a facade, offering a high level of rain defence.

Features and benefits:

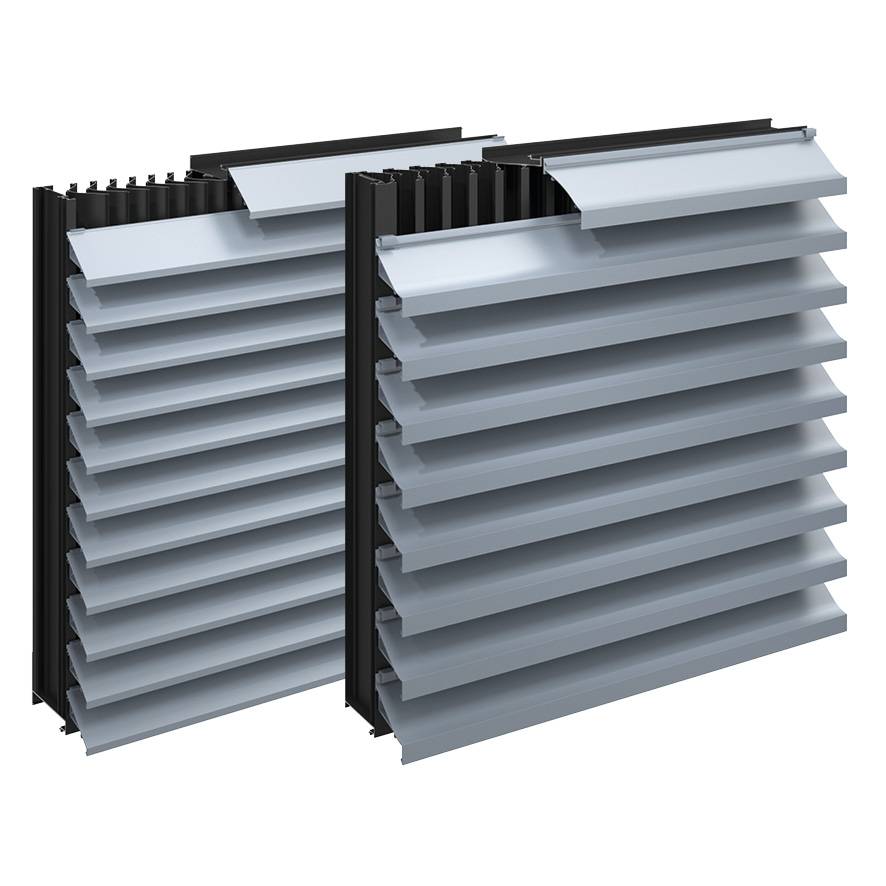

Front ventilation louvre, with a choice of 75 or 100 mm blade pitch for continuous blade appearance on the façade.
Choice of vertical blade rain defence units to the rear to provide excellent protection from wind-driven rain ingress.
The back modules are powder-coated black as standard to conceal their appearance.
Front blades are clipped on-site into the blade braces, which are pre-attached to the back modules.
Where only parts of the façade are functionally active and require rain defence solution, blanking panels are used behind the ventilation louvres in non-active zones, keeping costs down.
All double bank configurations have been tested for combined airflow performance.

General information

Color	Silver Guidance for specification option: Unfinished (aluminium). Other Guidance for specification option: Any RAL Classic colour available.
Finish	Powder-coated Mill Anodized
Material	Aluminium
Shape	Rectangle
Length	- Manufacturer guidance Double bank louvre depth. Varies depending on combination of front/back models selected.
Width	Bespoke
Height	Bespoke
Warranty description	Two year Guidance for specification option: Product warranty. Warranty for finishes (powder-coated or anodised) is up to 30-years.

Uniclass	Pr_30_59_48_04 Aluminium louvre panel unitsPrimary Ss_25_10_20/540 Custom-made louvres
CAWS	L10/54 Louvres H11/140 Louvres L10/650 Metal louvres

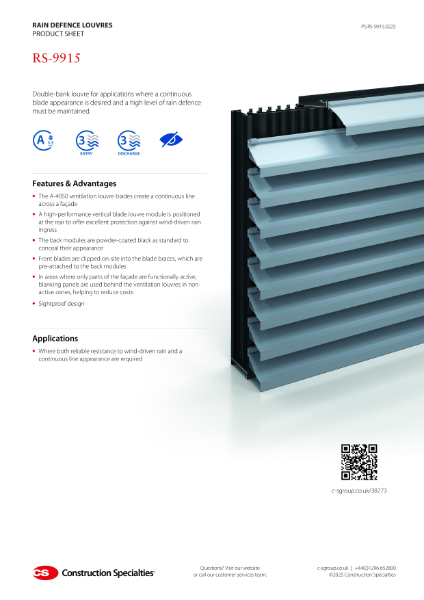

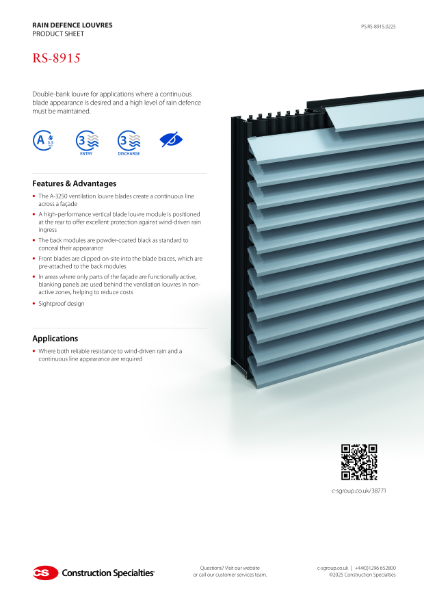

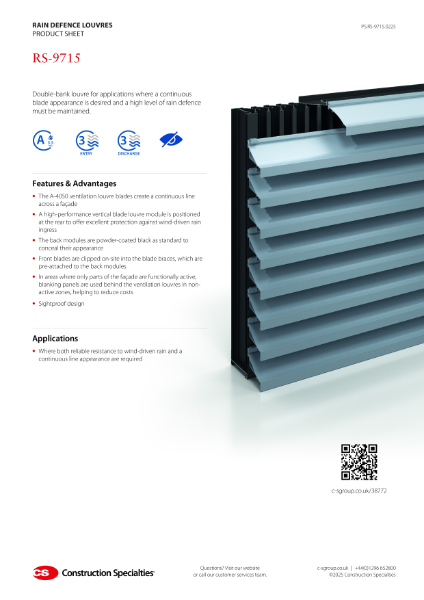

SKU Code	RS-8715, RS-8915, RS-9715, RS-9915

Product range	CS Architectural Louvres - Rain Defence

Specification data - Aluminium louvre panel units

Size (l x w x d)	- Manufacturer guidance Insert requirements (height x width) or insert As drawing or As schedule. Back modules, featuring interlocking mullions, are supplied pre-fabricated with pre-attached blade braces. Front blades are supplied in standard lengths for clipping into blade braces on-site. Dimensions (based on 1.5 kPa wind load) Back modules: maximum height: 3600 mm; maximum width: 3600 mm* Front blades: standard width: 3000 mm. *For manual handling purposes, a maximum of 80 kg per unit is recommended. Typical unit depth (front blades are fitted to back louvre with braces): 208 mm.
Material	Aluminium.
Finish	Mill finish front louvre/ matt black rain defence module. Guidance for specification option: Standard. Anodized (clear) front louvre/ matt black rain defence module. Anodized (colour) front louvre/ matt black rain defence module. Guidance for specification option: Insert colour requirements (front louvre). PPC, matt, colour front louvre/ matt black rain defence module. Guidance for specification option: Insert colour requirements (front louvre only). Standard for polyester powder-coated finishes. 30 gloss units. PPC, gloss, colour front louvre/ matt black rain defence module. Guidance for specification option: Insert colour requirements (front louvre only). 70 gloss units. Manufacturer guidance Rain defence is polyester powder-coated (PPC).
Colour	As Finish.
Construction	Front louvre blades fitted to rear bank units using blade braces, for continuous blade appearance.
Weather performance	-
Water penetration class (minimum)	To BS EN 13030, class A up to 3.5 m/s. Guidance for specification option: Consult manufacturer's literature for further details.
Discharge loss coefficient (minimum)	To BS EN 13030, class 3: Airflow coefficient Ce (entry): 0.260; Cd (discharge): 0.232.
Louvre configuration	-
Number of banks	Two.
Blade orientation	Horizontal (horizontal); vertical (rear rain defence module).
Blade pitch	75 mm (front louvre - horizontal); 51 mm (rear rain defence module - vertical).
Blade angle	40°. Guidance for specification option: Front blades only.
Accessories	None. Bird/ vermin guard, galvanized steel welded mesh. Guidance for specification option: Standard bird/ vermin guard. Pre-fitted welded aluminium frame included. Stainless steel mesh available on request. As guards of any type create additional resistance to airflow and reduce flow rate, louvre sizes should be adjusted to allow for this. Bird/ vermin guard, expanded aluminium welded mesh. Guidance for specification option: Mill finish as standard, can be powder-coated in RAL colours to match louvre. Pre-fitted welded aluminium frame included. As guards of any type create additional resistance to airflow and reduce flow rate, louvre sizes should be adjusted to allow for this. Insect mesh, PVC-coated fibreglass. Guidance for specification option: As standard; stainless steel mesh available on request. As guards of any type create additional resistance to airflow and reduce flow rate, louvre sizes should be adjusted to allow for this. Louvred door(s). Guidance for specification option: Insert requirements. Manufactured to bespoke sizes and specifications. Maximum size of a single door leaf is 2400 x 1200 mm (may vary per model type). Single and double door configurations are available. Door leaf frames filled with louvre blades to match the rest of the louvred facade. Typically supplied with a door frame and pre-fitted hinges. Other hardware, including locks, door closers etc. can be supplied.

Blanking panels	Not required. Single-skin aluminium panels, standard powder-coated black to one face only. Guidance for specification option: Standard. 1.2 mm thick aluminium sheet. Powder-coated face is on the louvre side, facing the exterior. Single-skin aluminium panels, powder-coated black to both sides. Guidance for specification option: On request. 1.2 mm thick aluminium sheet. Single-skin aluminium panels, powder-coated to match louvre. Guidance for specification option: On request; specify colour/ finish required. 1.2 mm thick aluminium sheet. Single-skin aluminium panels, mill finish. Guidance for specification option: On request. 1.2 mm thick aluminium sheet. Insulated panels incorporating A1-classified non-combustible stone wool core. Guidance for specification option: Insulation core material encapsulated in two trays made of 1.5 mm-thick aluminium sheet. Supplied pre-fabricated and factory-fitted to the rear of louvre units using fixing angles. Contact manufacturer for further details, including U-value information. Insulated panels, extruded polystyrene core. Guidance for specification option: Insulation core material encapsulated in two trays made of 1.5 mm-thick aluminium sheet. Supplied pre-fabricated and factory-fitted to the rear of louvre units using fixing angles. Contact manufacturer for further details, including U-value information. Show more Manufacturer guidance For placement behind ventilation louvres in non-active areas, keeping costs down.

Sustainability data

Contains Red List materials	No
Material	Aluminium
Recycled content As defined in clause 7.8 of BS EN ISO 14021	55 % Guidance for specification option: Aluminium components are manufactured using minimum 55% recycled content (mix of pre- and post-consumer scrap). Other aluminium options can be offered subject to minimum quantities, contact manufacturer to discuss your requirements.
