CTVB/T-N MAX TEMP | Vertical Discharge Roof Fan Series

Verified by manufacturer 5 months ago

CTVB/4-180N

S&P UK Ventilation Systems Ltd Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Centrifugal roof mounted fans

Jump to:
BOS
+44 (0)1473 276890 Website

Application

Suitable for car parks, industrial and commercial kitchens, while 180N, 200N and 225N models can also be used for smoke extraction from fireplaces.

Description

Range of centrifugal roof mounted fans in vertical discharge format, designed for smoke extraction in fire conditions and certified F400-120 (not 180 and 200 models).


Suitable for air stream temperature up to 120ºC.

  • Base manufactured from galvanized sheet steel.
  • High efficiency centrifugal backward curved impeller manufactured from galvanized sheet steel.
  • Cowl manufactured from spun aluminium.
  • All models incorporate bird-proof guard.
  • Available, depending on the model, in 4, 6 or 4/8 poles.


Motors:

  • Single-phase, single-speed motor 220- 240V 50Hz (CTVB), IP55, class F, with safety thermal overload protection. Speed controllable by voltage.
  • Three-phase single-speed motor 220-240/400-415V-50Hz (CTVT), IP55, class F, with safety thermal overload protection. Speed controllable by frequency inverter and by voltage.
  • Three-phase two-speed motor 380- 415V50Hz, 4/8 poles, IP55, class F, with safety thermal overload protection.


Consult technical literature for information on performance values including airflow, speed and sound pressure level.


Features and benefits:

  • Easy to install.
  • Self cooling system.
  • Bird-proof guard.
  • EN 12101-3 F400-120 Certified.

General information

Color

Grey

Finish

Galvanized

Material

Aluminium

Steel

Warranty description

Two year

Uniclass

Pr_65_67_29_72 Roof-mounted fansPrimary

Specification data - Roof-mounted fans

Standards

-

Configuration category

To BS EN ISO 5801.

Dimensions

431 mm (diameter) x 378 mm

Duty

-

Air volume

Up to 1.6 m³/s.

Operating conditions

-

Environment

-20°C to 120°C.

Fan

Centrifugal.

Accessories

JMS.

Guidance for specification option:

Sealing frame – For mounting a roof fan on an up stand or base. – Supplied with screws and gasket for a complete weatherproof seal

JBS.

Guidance for specification option:

Flat roof up stand For mounting a fan on a flat roof without up stands. – For use on horizontal roofs. – Internal insulation to prevent condensation. – Supplied with screws and gasket for a complete weather seal.

JPA.

Guidance for specification option:

Accessory adapter plate – Used when mounting the accessories (JCA, JBR, JAE). – Allows the fan to be disconnected from the upstand without having to remove the duct.

JCA.

Guidance for specification option:

Backdraft shutter – Prevents backdraft when the fan is not operating. – To be mounted at the fan inlet with the JPA plate.

JCA N.

Guidance for specification option:

Backdraft shutter – Prevents backdraft when the fan is not operating. – To be mounted at the fan inlet with the JPA plate.

JBR N.

Guidance for specification option:

Flange – For use when circular connection is required directly to the fan. – To be mounted at the fan inlet with the JPA plate or fixed directly to the fan base (rivets or screws not supplied).

JAE N.

Guidance for specification option:

Flexible coupling – Reduces the transmission of vibrations when the duct is connected directly to the fan. – To be mounted at the fan inlet with JPA plate.

JCC.

Guidance for specification option:

Adapter for circular duct – For use when fitting the models up to 400, directly to a spirally wound circular duct.

BI.

Guidance for specification option:

Support base for inclined curb mounted installations – To ensure a proper installation of the MAXTEMP roof fan it is essential to specify the roof pitch angle and the distance between the roof beam profiles.

JAA.

Guidance for specification option:

Support base for inclined curb mounted installations – To ensure a proper installation of the MAXTEMP roof fan it is essential to specify the roof pitch angle and the distance between the roof beam profiles.

On/ Off Electrical isolation switch.

Guidance for specification option:

– Switch On/ Off 5P (1 speed motor) – Switch On/ Off 8P (2 speed motor).

REB-1N.

Guidance for specification option:

Single phase electronic speed controllers. – For use with the single phase roof fans.

REB-2.5N.

Guidance for specification option:

Single phase electronic speed controllers. – For use with the single phase roof fans.

REB-5.

Guidance for specification option:

Single phase electronic speed controllers. – For use with the single phase roof fans.

REB-10.

Guidance for specification option:

Single phase electronic speed controllers. – For use with the single phase roof fans.

RMB.

Guidance for specification option:

Auto transformer speed controllers. – For single phase and three phase roof fans models.

RMT.

Guidance for specification option:

Auto transformer speed controllers. – For single phase and three phase roof fans models.

VAPZ.

Guidance for specification option:

Electronic single phase regulator that controls the fan speed with a simple contact (presence detector) or an analogical input 0-10 V or 4-20 mA (from CO2 probe or relative humidity sensor).

VRPU.

Guidance for specification option:

Electronic control with display for single phase 230V-50/60Hz fans. Analogical input 0-10V or 4-20mA: Operating regulation, either with setting value or external signal (current or voltage).

VFTM IP21.

Guidance for specification option:

Adjustable frequency drives for three phase motors from 0,37 to 15 kW. DIN rail mounting.

VFTM IP54.

Guidance for specification option:

Adjustable frequency drives for three phase motors from 0,37 to 15 kW.

VFKB IP65.

Guidance for specification option:

Adjustable frequency drive for three phase motors from 0,37 to 4 kW.

DEMZ DA.

Guidance for specification option:

Switch for two-speed motors with Dahlander.

PREP/COOK Switch (IP66).

VFTM320 (IP66).

Weight

11.7 kg.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

QA Certificate

QA Certificate

0370-CPR-6214. - Tested to EN 12101-3:2015 (APPLUS - CTVB/T MAX TEMP)

Literature

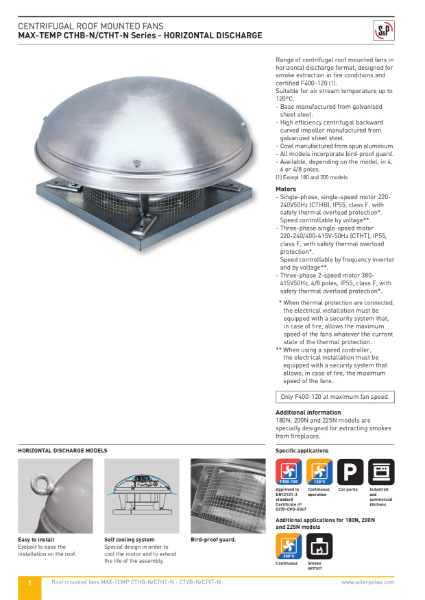

CTVB/T-N MAX TEMP Catalogue

CTVB/T-N MAX TEMP Catalogue

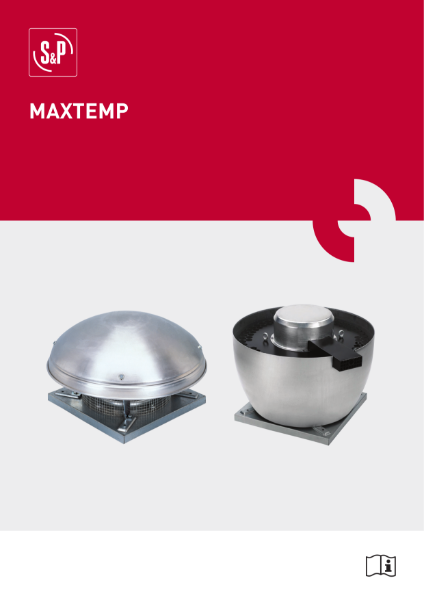

CTVB/T-N MAX TEMP | Installation, Operation & Maintenance Manual
