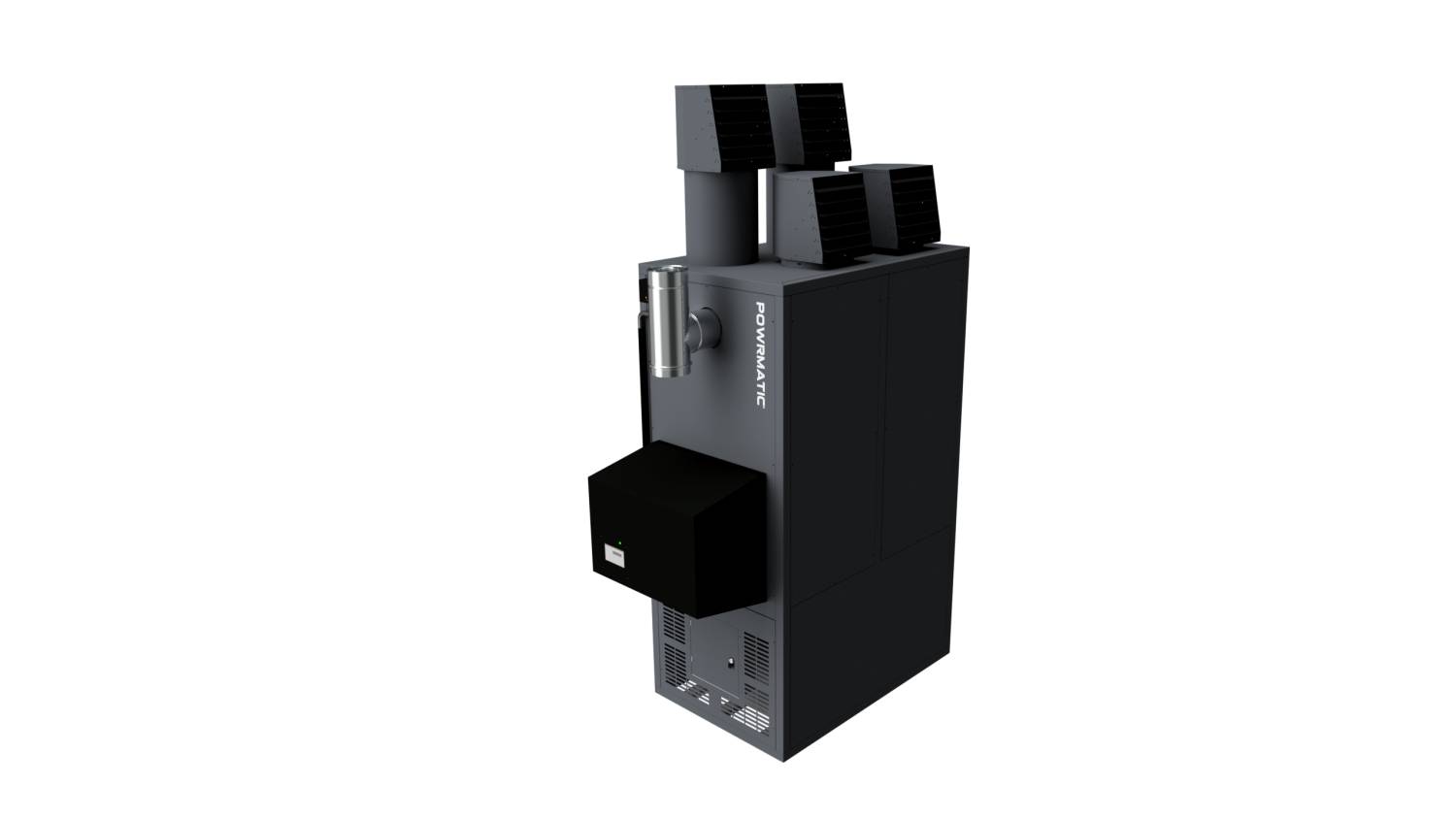

CX Gas Floor Standing Cabinet Heater

Verified by manufacturer 4 months ago

CX 30

Powrmatic Ltd Variant:

Gas cabinet heater with direct airflow or ducted output.

Jump to:
+44 (0)1460 53535 Website

Application

Suitable for free-blowing and ducted heating applications.

Description

Ultra low NOx cabinet heater offering high performance and efficiency for heating applications.


Features and benefits:

  • Ten outputs ranging from 30 kW through to 300 kW.
  • Adjustable heat distribution.
  • Availability of horizontal types for applications where space and air direction is specific.
  • Burner technology and access cover.
  • All CX are supplied with a fitted and tested burner.
  • ErP 2021 reduced NOx emissions.
  • CX is available as upright (UF or UD) versions.
  • CX is available as horizontal (HF or HD) versions.

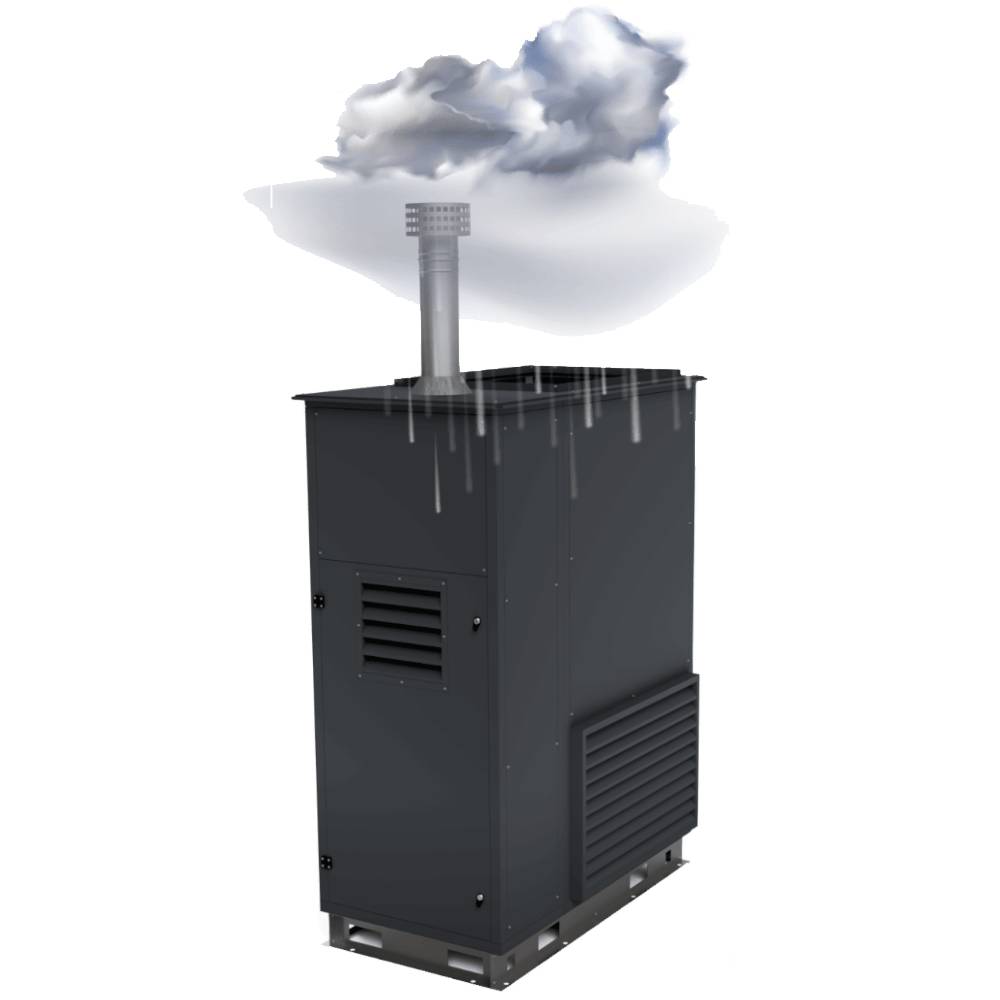

  • CX is available as an external (EA) version.
  • CX heaters are type tested and CE approved.

General information

Color

Grey

Finish

Painted

Material

Stainless steel

Shape

Rectangle

Length

732 mm

927 mm

1200 mm

1399 mm

1599 mm

Show more

Width

668 mm

732 mm

744 mm

904 mm

927 mm

Show more

Height

819 mm

894 mm

1054 mm

1254 mm

1767 mm

Show more

Warranty description

Two year

Uniclass

Pr_70_60_36_08 Cabinet indirect heatersPrimary

CAWS

T90/110 Heating system

T90/110 Heating system

Specification data - Cabinet indirect heaters

Output

High fire: 30.3 kW (maximum).
Low fire: 10.6 kW (minimum).

Air volume

0.6 m³/s.

Arrangement

Horizontal.

Upright.

Position

External.

Internal.

Outlets

Free-blowing.

Ducted.

Fuel

Natural gas.

Burner

Inverterjet burner.

Controls

Heating controller.

Guidance for specification option:

  • MC200V3 or MC200 fuel saver controls fitted as standard for internal upright cabinets.
  • Horizontal and external models have controls supplied loose; optional controls can be accommodated when required: consult manufacturer for details.

Flues and chimneys

Supplied with 90° flue tee.

Manufacturer guidance

Consult manufacturer's literature for flue requirements.

Accessories

Side and rear inlet spigots.

Filters.

Dampers.

Execution

-

Manufacturer guidance

Consult manufacturer's literature for execution specification.

Input

High fire: 32.7 kW (maximum).
Low fire: 10.8 kW (minimum).

Model

CX UF - Upright, freeblowing.

CX UD - Upright, ducted.

CX HF - Horizontal, freeblowing.

CX HD - Horizontal, ducted.

CX EA - External.

Dimensions

-

Manufacturer guidance

Consult manufacturer's literature for individual model dimensions.

Diameter

Flue: Ø130 mm.
Combustion air spigot: Ø130 mm.

Net weight

168 kg.

HeatingEfficiency

78.3%.

Connection

½" BSP.

Manufacturer guidance

Fuel connection.

InputPressure

17.5 mbar.

Noise

55 dB(A).

Manufacturer guidance

Noise level.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom
