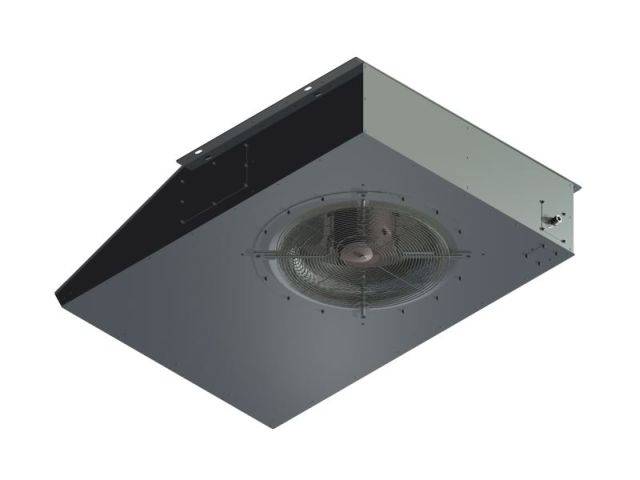

Cyclone Centrifugal Induction Fan

Verified by manufacturer 5 months ago

Cyclone 100N

Colt International Ltd Variant:

Car park fans designed to reduce the concentrations of polluted air and to assist with the extraction of smoke trapped in car parks, in the event of a fire.

Jump to:
+44 (0)23 9245 1111 Website

Application

Car park fans designed to reduce the concentrations of polluted air and to assist with the extraction of smoke trapped in car parks, in the event of a fire.

Description

Car park fans designed to reduce the concentrations of polluted air and to assist with the extraction of smoke trapped in car parks, in the event of a fire.



Fans are manufactured to the ISO 9001 quality standard. It incorporates a backward curve centrifugal impeller with a high temperature external rotor motor rated at 300°C for one hour.


Features and benefits:

  • Slimline design, only 308 or 252 mm deep. This reduces the required headroom in car parks and thus lowers excavation costs.
  • Certified performance - exhaustively tested and certified to EN 12101-3 in accredited third party test laboratories and is CE marked.
  • Durable construction: manufactured from hot-dipped galvanized steel casing with the option of a polyester powder coating to any RAL colour.
  • All fans are manufactured to the ISO 9001 quality standard.
  • Low maintenance, no ductwork to clean.
  • High thrust: each fan can ventilate a significantly higher floor area, meaning fewer units are required than with conventional impulse units. Requires lower cabling and control requirements as well as lower installation and maintenance costs.
  • Speed options: Suitable for either two-speed or variable-speed operation, depending on the application. Where the unit is inverter (variably) controlled, the amount of power consumed is reduced.

General information

Color

Silver

Other

Finish

Galvanized

Powder-coated

Material

Steel

Shape

Rectangle

Size

-

Manufacturer guidance

Length x width x height (depth).

Length

1206 mm

1457 mm

Width

830 mm

1000 mm

Height

252 mm

308 mm

Uniclass

Pr_65_67_29_44 Jet fansPrimary

Product range

Mechanical Smoke Ventilators

Specification data - Jet fans

Standard

To EN 12101-3.

Guidance for specification option:

CE marked.

Duty

-

Air volume

2.45/ 1.21 m³/s.

Fan speed

Single speed DOL motor.

Guidance for specification option:

Suitable for inverter speed control, IP55 protection.

Two speed dahlander motor.

Guidance for specification option:

Full and half speed, IP55 protection

Manufacturer guidance

  • Motor power (full/ half speed): 2.2/ 0.55 kW.
  • Full load current: 5.6/ 2.0 A.
  • Thrust: 98/ 24 N.
  • Discharge velocity: 32.6/ 16.1 m/s.

Sound power level spectrum

71.3/ 55.5 dB(A).

Guidance for specification option:

LpA at 3 m free field (full/ half speed).

Colour

Pre-galvanized sheet.

Guidance for specification option:

Standard.

Polyester powder coating, RAL.

Guidance for specification option:

Insert colour requirement.

Fire performance

Class F300 to EN 12101-3.
