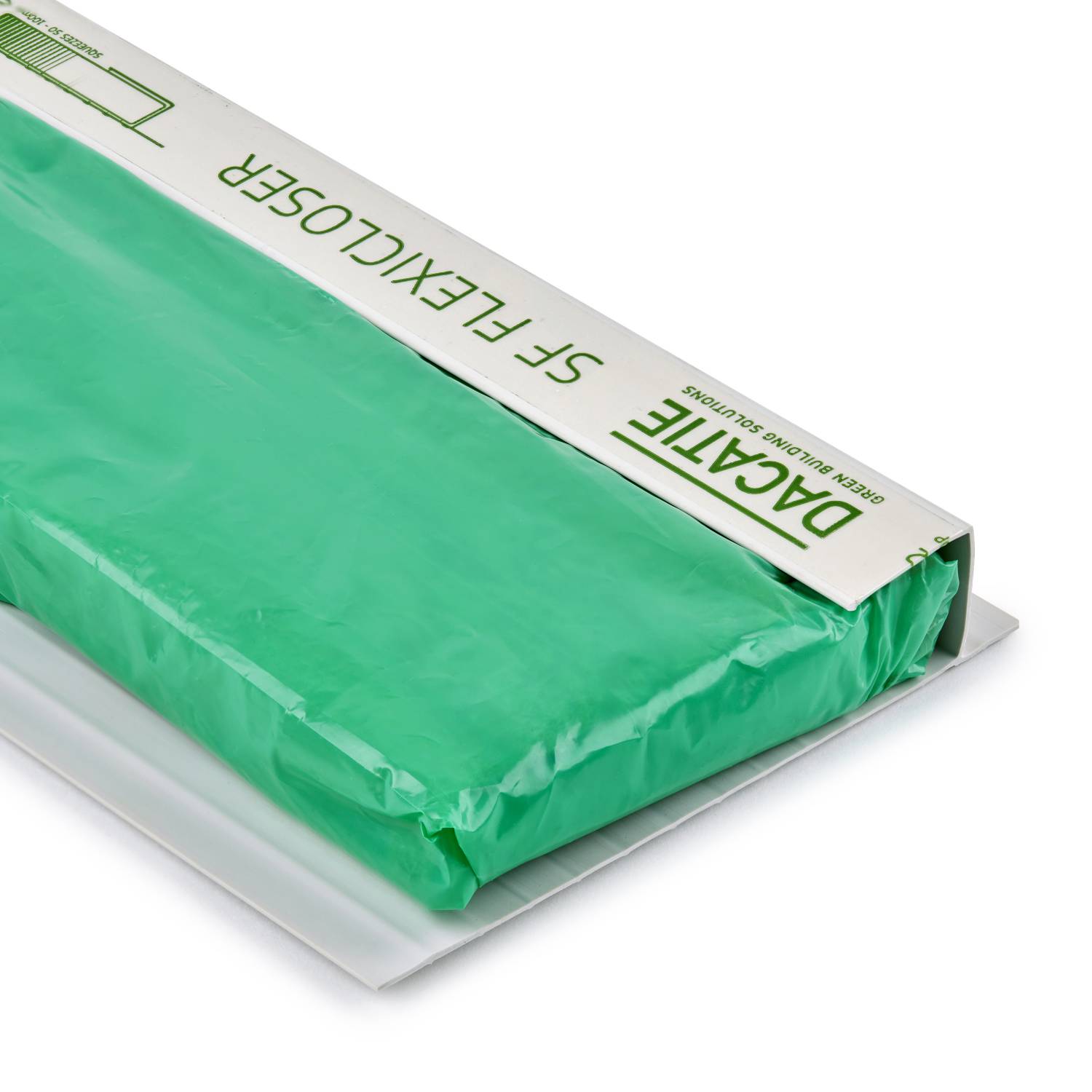

Dacatie Supafix Compression Fit Flexicloser Cavity Closer For Window And Door Reveals
Verified by manufacturer 3 months ago
Supafix Flexicloser standard 50-100mm
Supafix Flexicloser standard 50-100mm
UKAS
Certificate type
BBA Agrément Certificate
Certificate type
Insulated flexible cavity closer, able to fit any cavity between 50 and 100 mm.
Application
- Suitable as flexible cavity closer where cavity widths are unknown or vary on site.
- Suitable as a second fix application where a frame former is not required.
Description
An easy to use flexible cavity closer where cavity widths are unknown or vary on site. Useful as a second fix application where a frame former is not required.
All Dacatie products are manufactured to BS ISO 9001 Quality Management and ISO 14001 Environmental standards. All Dacatie products are chlorofluorocarbon (CFC) hydrochlorofluorocarbon (HCFC) free, have zero ozone depletion potential (ODP) and low global warming potential (GWP).
Features and benefits:
- 100% made in Britain.
- Insulation with Ecose technology – Green Guide Rating A+.
- One size fits all 50–100 mm.
- Compliance with Building Regulations (E&W) Approved Document L (2010).
- Robust Detail BR262.
- National House Building Council (NHBC) approved.
- Prevents water ingress.
- Minimizes thermal bridging around reveals.
- Ten lengths per pack.
General information
Color | White |
Finish | Smooth |
Material | PVC-U Guidance for specification option: Unplasticized polyvinyl chloride (PVC-U) carrier. Wool Guidance for specification option: Fire rated mineral wool insulation. |
Shape | Rectangle |
Length | 2400 mm |
Width | Bespoke |
Height | 25 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | F30/18 Cavity closers F30/180 Cavity closers |
Specification data - Plastics cavity closers
Third party certification | British Board of Agrément, BS ISO 9001, ISO 14001, NHBC approved, Compliance with Building Regulations (E&W) Approved Documents L (2010), Part L (2013 amend) Conservation of fuel and power, Part C (2010) Resistance to contaminants and moisture. |
To fit cavity width | 50–100 mm. |
Length (effective) | 2.4 m (stock length).Guidance for specification option: Ten lengths per pack. |
Material: | Carrier: PVC-U, Insulation: Fire rated mineral wool. |
ThermalConductivity | 0.037 W/m·K. |
Thermal resistance (R-value) | 0.676 m²K/W. |
Global warming potential (GWP) | Low. |
Ozone depletion potential (ODP) | Zero. |
Barrier type | SF Supafix Flexicloser. Guidance for specification option:
|
Green guide rating | A+. |
Weather resistance | Severe weather rating. Guidance for specification option: Standard, with 30 mm set back. |

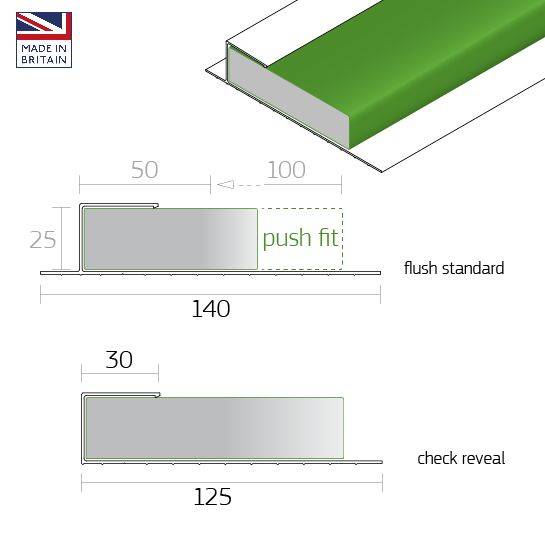

Dimensions | 140 x 25 x 2400 mm. Guidance for specification option: Flush standard. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom Guidance for specification option: Britain. |
Material | PVC-U Guidance for specification option: Unplasticized polyvinyl chloride (PVC-U) carrier. Wool Guidance for specification option: Fire rated mineral wool insulation. |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 30 % |
Third party certifications
UKAS
ISO 9001
UKAS
ISO 14001
BBA Agrément Certificate
BBA Cert: Dacatie Supafix (SF), Supafix Fire Rated (SFR) and Supafix Multicloser Insulated PVC-U Cavity Closers
Literature
Dacatie - Fire cavity barrier, cavity closer, frame former, & DPC Specification Guide - Close that cavity correctly with Dacatie
Dacatie SupaFix Flexicloser - cavity closers - 30 to 100mm cavities - Datasheet
Case studies
Persimmon Homes, Phoenix Wharf, West Bromwich
