DB3905 Dolphin Shower Set with Wall Mounted Head and Handheld
Verified by manufacturer 3 months ago

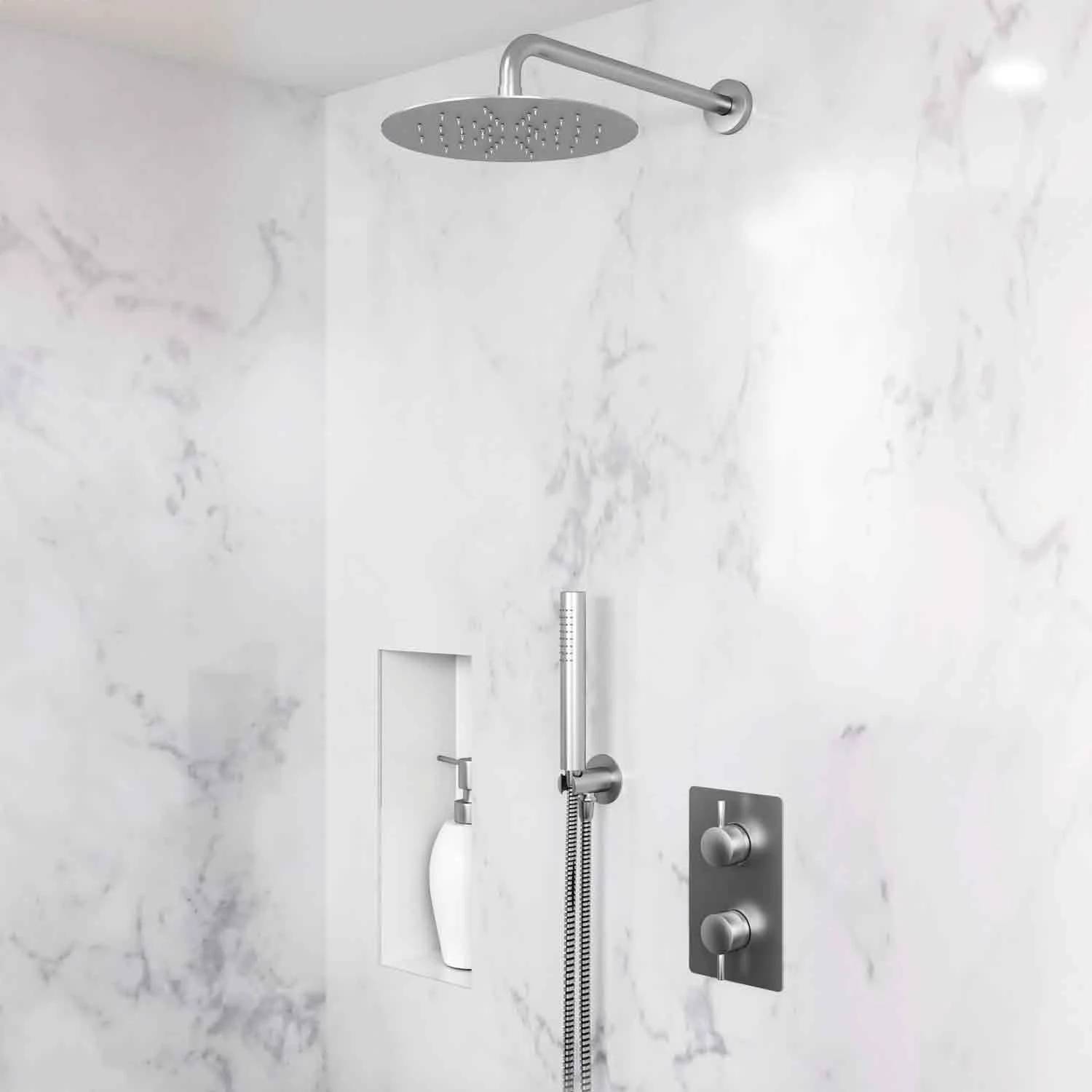

A shower set with wall mounted head, thermostatic shower valve, diverter and wall mounted handheld shower.
Application
Suitable for shower and bath application.
Description
A stainless steel shower set with wall mounted head, thermostatic shower valve, diverter and wall mounted handheld shower.
Features and benefits:
- Two flow regulators included to provide 6 or 9 L per minute at 6 bar.
- Available in polished, satin/brushed and matt black finishes.
- WRAS approved components.
Components:
- Dolphin Blue concealed shower valve with thermostatic temperature control and two-way diverter – outlets for fixed head and handheld.
- Dolphin Blue Ultra-thin square shower head, 250 mm diameter with safety valve.
- Dolphin Blue wall outlet and holder with 1/2" BSP connection.
- Dolphin Blue wall mounted shower arm, 350 mm length.
- Dolphin Blue flexible shower hose, 1500 mm length.
- Dolphin Blue handheld shower head.
General information
Color | Black Silver |
Finish | Matt Satin Polished |
Material | Stainless steel |
Shape | Circle Guidance for specification option: Shower head. |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units |
Specification data - Shower fittings package
Approval | Water Regulations Advisory Scheme (WRAS)-approved.Guidance for specification option: WRAS approved components: DB3100 – WRAS No. 1911347, DB3001 – WRAS No. 2003342, DB3061 – WRAS No. 2003371, DB3071 – WRAS No. 2003357, DB3030 - WRAS No. 1904081, DB3020 – WRAS No. N/A. |
Form | Concealed wall-mounted shower mixer valve and diverter, wall mounted shower head, wall outlet and holder, flexible shower hose and handheld shower head. |
Materials | |
Body | Stainless steel. |
Finish and colour | Satin.Matt black.Mirror polish. |
Flow rate (maximum) | 9 L/min at 6 bar.Guidance for specification option: Two flow regulators included to provide 6 or 9 L/min at 6 bar. |
Shower head | 250 mm. Manufacturer guidanceDiameter. |
Length | 350 mm. Guidance for specification option: Shower arm. 1500 mm. Guidance for specification option: Shower hose. |
