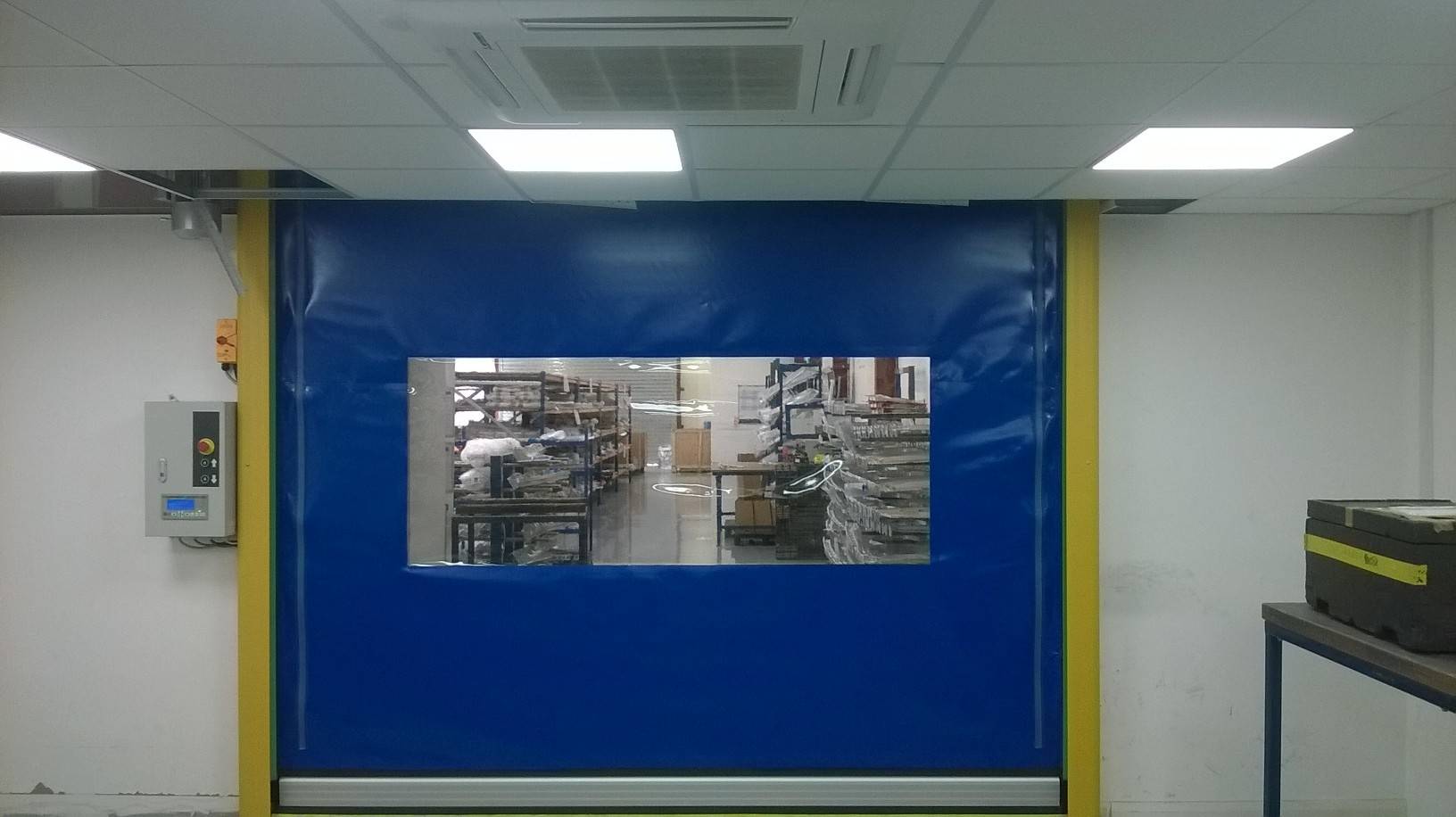

Name: DB601 Rolling Speed Door
Brand: Fortress SEFA
SKU: eJfdhTwHWRZGEkACGE4he

Standard	To BS EN 12604, BS EN 12453, BS EN 12424.
Opening sizes	- Manufacturer guidance Under standard construction dimensions up to 4000 x 4000 mm. Larger sizes by specification. Please consult Fortress SEFA for advice.
Arrangement	Vertical stacking PVC curtain for face fixing.
Performance	-
Resistance to wind load	To BS EN 12424, Classification 2 (3000 x 3000 mm).
Acoustic performance	Weighted Level Difference Dw value 22 dB.
Shutter curtain	-
Lath material	BS EN 12424 960 mg/m² dark blue PVC curtain panels, 500 mm in depth, with integrated 40mm profile aluminium extrusions to provide curtain rigidity and resistance to wind pressure. Guidance for specification option: One section of curtain panel is fabricated from transparent PVC to provide a vision panel detail. BS EN 12453 Self-checking safety edge will stop and reverse the door movement immediately upon contact with an obstacle. BS EN 12453 Photocell light through beam sensor for non-contact safety system.
Finish and colour	Dark blue.
Frame and guides	-
Material	BS EN 12424 Fortress DB600 G-channel™ 2 mm steel with concealed fixing. 125 x 131 mm guide assembly and cover plate (Yellow). The assembly incorporates a nylon insert with which a heavy-duty zip system runs on both sides to reduce noise in operation, prevent air infiltration and provide a weather seal. Guidance for specification option: NB. Structure requires a minimum head room of 500 mm above opening height and a minimum side room of 125 mm with an additional 180 mm to the operator side.
Finish	Galvanized to BS EN ISO 1461.
Colour	BS 00A05. BS 04E53. BS 08B29. BS 12B27. BS 18B25. BS 18E53. RAL 1015. RAL 1021. RAL 3005. RAL 3020. RAL 5003. RAL 5005. RAL 5010. RAL 5013. RAL 5015. RAL 6005. RAL 6029. RAL 7016. RAL 7021. RAL 7031. RAL 7035. RAL 7037. RAL 8016. RAL 9001. RAL 9005 (BLACK). RAL 9006 (SILVER). RAL 9007. RAL 9010 (WHITE). RAL 9910. Manufacturer guidance Door frame structure can be supplied BS EN 12206-1 DuPont^®polyester powder coated (PPC) to the Fortress Pro-Tec range of 29 BS and RAL colours. Matt PPC finishes only. All finishes are applied in-house using an electrostatic process. Under normal circumstances average film thickness of 60-80 μm (microns) is applied. Non-standard colours are available on request - this may increase lead times. Please consult Fortress SEFA for advice.
Operation	-
Mode	BS EN 12453 Fortress DB501 Drive System™ 415 Volt 3-phase operator withlow voltage controls and safety brake system. Standard door activation is by push button controls. BS EN 12453 Automated safety control system operated through a photocell light through beam sensor and a self-checking safety edge. Automatic closing is a feature of this door - increments set to specification. An interlock facility is available inside the panel allowing a security shutter to combine in operation with the DB501 SMART. BS EN 12453 Fortress DB501 Drive System™ has a manual override for use in the event of power failure.
Accessories	Motor hood Additional transparent PVC vision panels for increase light. 2.5 m high light beam sensor. Guidance for specification option: Will detect the presence of a person or object that interrupts the light beam providing a non-contact safety system. Remote control receiver and transmitters. Pull cord. Traffic Lights. Induction loop card. Radar sensors.

Barrel	Carbon steel tube finished with one coat rust inhibitive primer.
Speed	Opening/closing speed 2 m/s opening and 0.75 m/s closing variable via inverter panel.
End plate	Size: 4 x 350 mm (depending on curtain size/weight) carbon steel plates finished with one coat rust inhibitive primer.

Color	Blue
Finish	Galvanized
Material	PVC Steel
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_30_59_84_73 Roller shuttersPrimary
CAWS	L20/610 Roller shutters/ curtains L20/60 Doors L20/570 High-speed doors

Platform	Compatible	Version
Revit	-	1
IFC	-	1

DB601 Rolling Speed Door

Application

Description

General information

Color

Finish

Material

Length

Width

Height

Uniclass

CAWS

Specification data - Roller shutters

Standard

To BS EN 12604, BS EN 12453, BS EN 12424.

Opening sizes

Manufacturer guidance

Arrangement

Vertical stacking PVC curtain for face fixing.

Performance

Resistance to wind load

To BS EN 12424, Classification 2 (3000 x 3000 mm).

Acoustic performance

Weighted Level Difference Dw value 22 dB.

Shutter curtain

Lath material

BS EN 12424 960 mg/m² dark blue PVC curtain panels, 500 mm in depth, with integrated 40mm profile aluminium extrusions to provide curtain rigidity and resistance to wind pressure.

Finish and colour

Dark blue.

Frame and guides

Material

Finish

Galvanized to BS EN ISO 1461.

Colour

BS 00A05.

BS 04E53.

BS 08B29.

BS 12B27.

BS 18B25.

BS 18E53.

RAL 1015.

RAL 1021.

RAL 3005.

RAL 3020.

RAL 5003.

RAL 5005.

RAL 5010.

RAL 5013.

RAL 5015.

RAL 6005.

RAL 6029.

RAL 7016.

RAL 7021.

RAL 7031.

RAL 7035.

RAL 7037.

RAL 8016.

RAL 9001.

RAL 9005 (BLACK).

RAL 9006 (SILVER).

RAL 9007.

RAL 9010 (WHITE).

RAL 9910.

Manufacturer guidance

Operation

Mode

Accessories

Motor hood

Additional transparent PVC vision panels for increase light.

2.5 m high light beam sensor.

Remote control receiver and transmitters.

Pull cord.

Traffic Lights.

Induction loop card.

Radar sensors.

Barrel

Speed

End plate

Sustainability data

Material
