DB795 Dolphin Waste Trap

Verified by manufacturer 4 months ago

DB795S

Dolphin Solutions Variant:

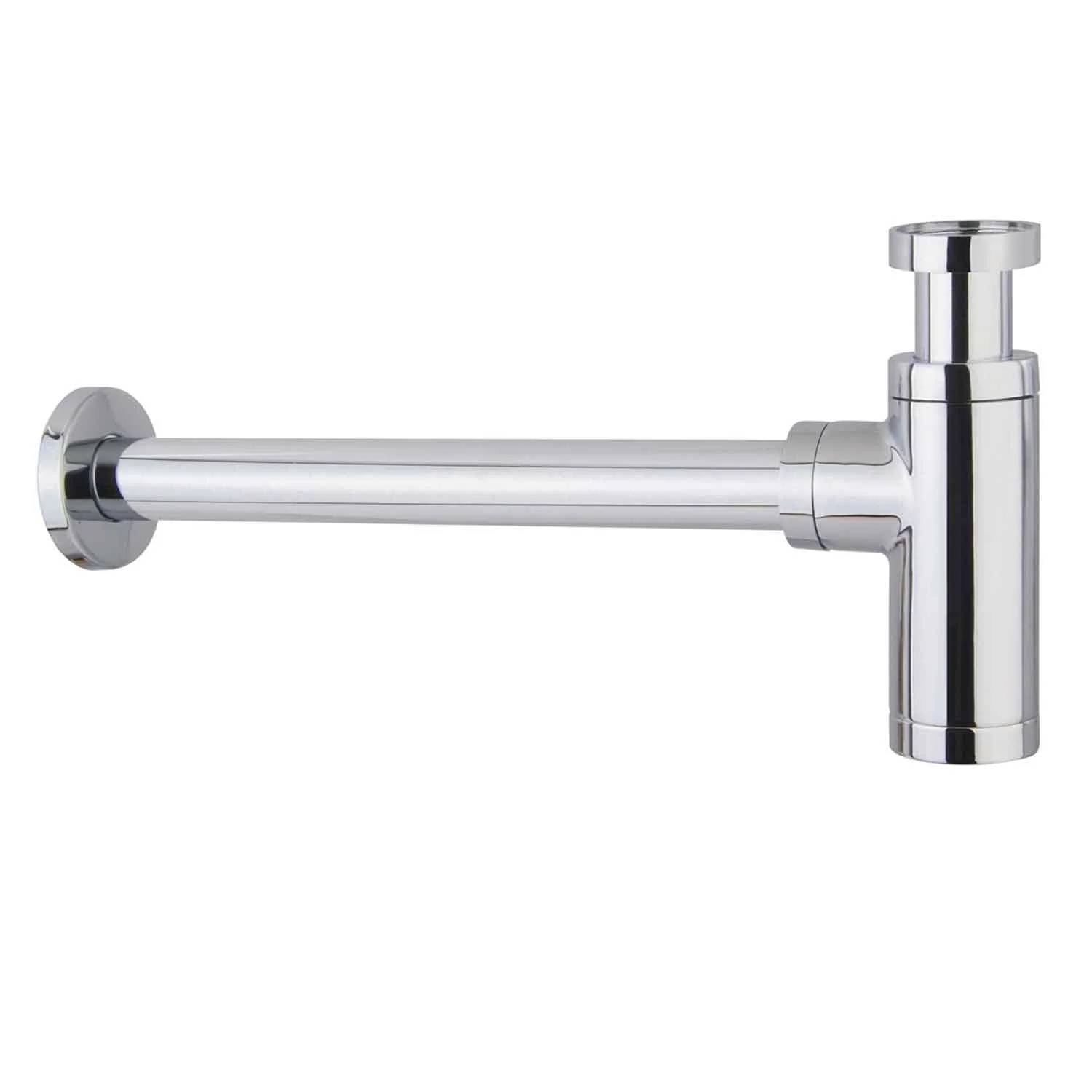

A high quality, chrome plated brass, waste bottle trap.

Jump to:
+44 (0)1424 202224 Website

Application

Suitable for use in commercial sinks and basin.

Description

A high quality, chrome plated brass, waste bottle trap.


Features and benefits:

  • 32 mm, G 1¼”.
  • Telescopic, with a 70 mm wall seal and minimalist 75 mm deep trap.
  • Satin chrome or polished chrome finish available.

General information

Color

Silver

Finish

Satin

Polished

Material

Brass

Chrome

Shape

Other

Uniclass

Pr_65_52_25_75 Sanitary appliance trapsPrimary

CAWS

N13/25 Sinks

N13/30 Washbasins

N13/331 Sinks

N13/335 Washbasins

Product range

Washroom Accessories / Waste Trap

Specification data - Sanitary appliance traps

Trap

Bottle trap.

Material

Brass, chrome plated.

Colour

Self colour.

Size

DN 32.

Guidance for specification option:

G 1¼”.

Depth of water seal (minimum)

70 mm.

Height

-

Manufacturer guidance

Telescopic height. 148–218 mm, specifier to detail.

Projection

320 mm.

Guidance for specification option:

From centre of trap.

Manufacturer guidance

Waste outlet length.

Diameter

60 mm.

Manufacturer guidance

Bottle diameter.

Colour and finish

Polished chrome.

BIM objects

Platform Compatible Version
IFC
-

1

Revit
-

1
