Verified by manufacturer 1 month ago

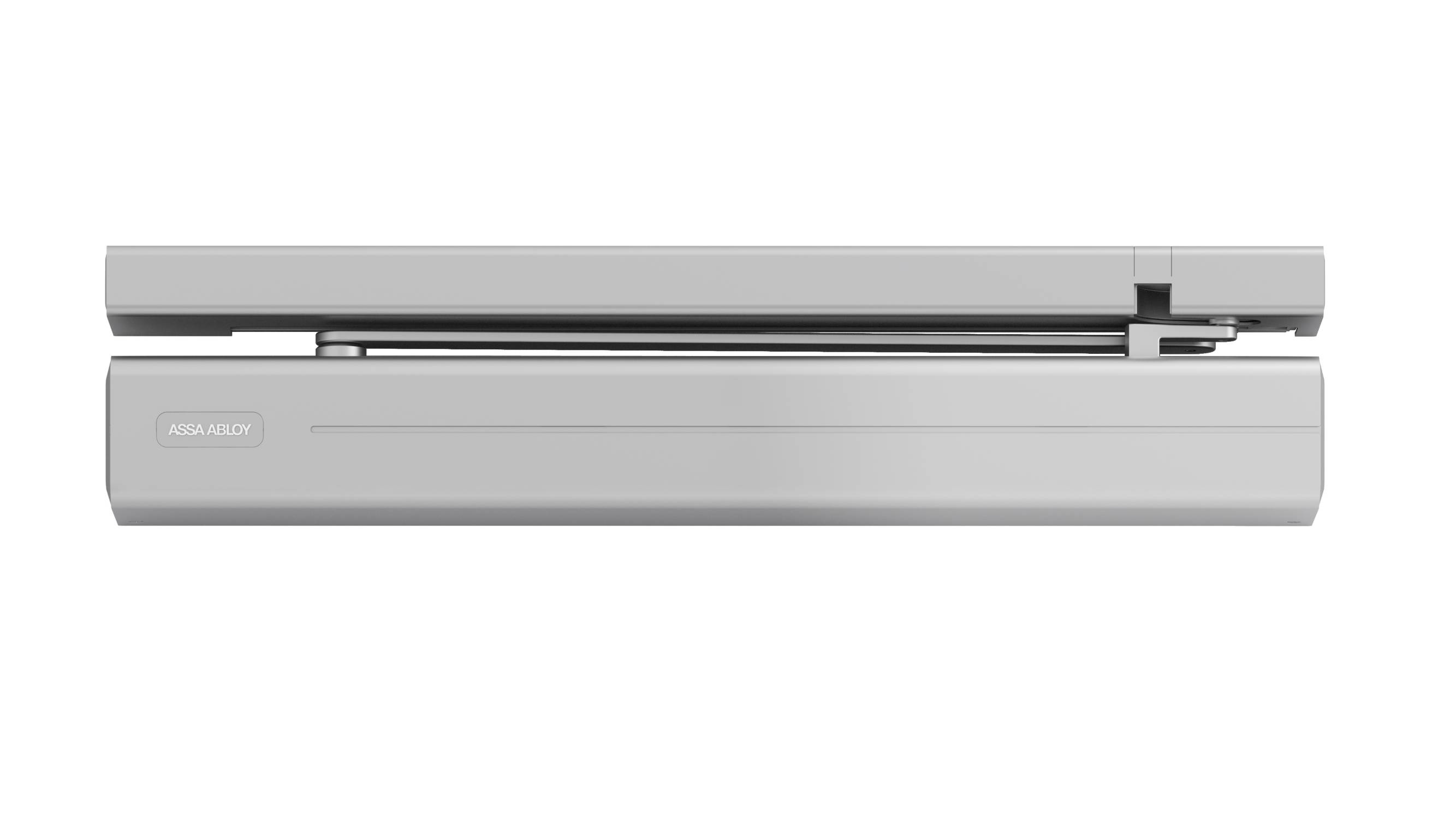

DC700G-CM - Close Motion Body Only
An integrated damping device to close doors.
An integrated damping device to close doors at the speed you want by controllably slowing the swing during the last few degrees of closing.
The door is pulled quietly and securely into the frame, allowing the locking system to latch the door into position. Close-Motion® also minimises problems from draughts and differences in air pressure.
Color | Silver Guidance for specification option: Stainless steel. |
Material | Stainless steel |
Shape | Rectangle |
Length | 66 mm |
Width | 528 mm |
Height | 66 mm |
Warranty description | Two year Ten year |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
Standard | To BS EN 1154. |
Classification grades (minimum) | |
Category of use | 3. |
Durability | 8. |
Door closer power size | Adjustable 3–6. |
Suitability for use on fire and smoke doors | 1. |
Safety | 1. |
Corrosion resistance | 3. |
Form | Overhead, face fixed. |
Closer functions | Back check.Controlled closing.Latching. |
Materials and finishes | |
Colour | Stainless steel.Guidance for specification option: Silver. |
Execution | Adjusting controlled door closers. |
Contains Red List materials | No |
Country of material origin | Finland |
Country of product manufacture | Finland |
Material | Stainless steel |
Recyclability | 75% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 65 % |
