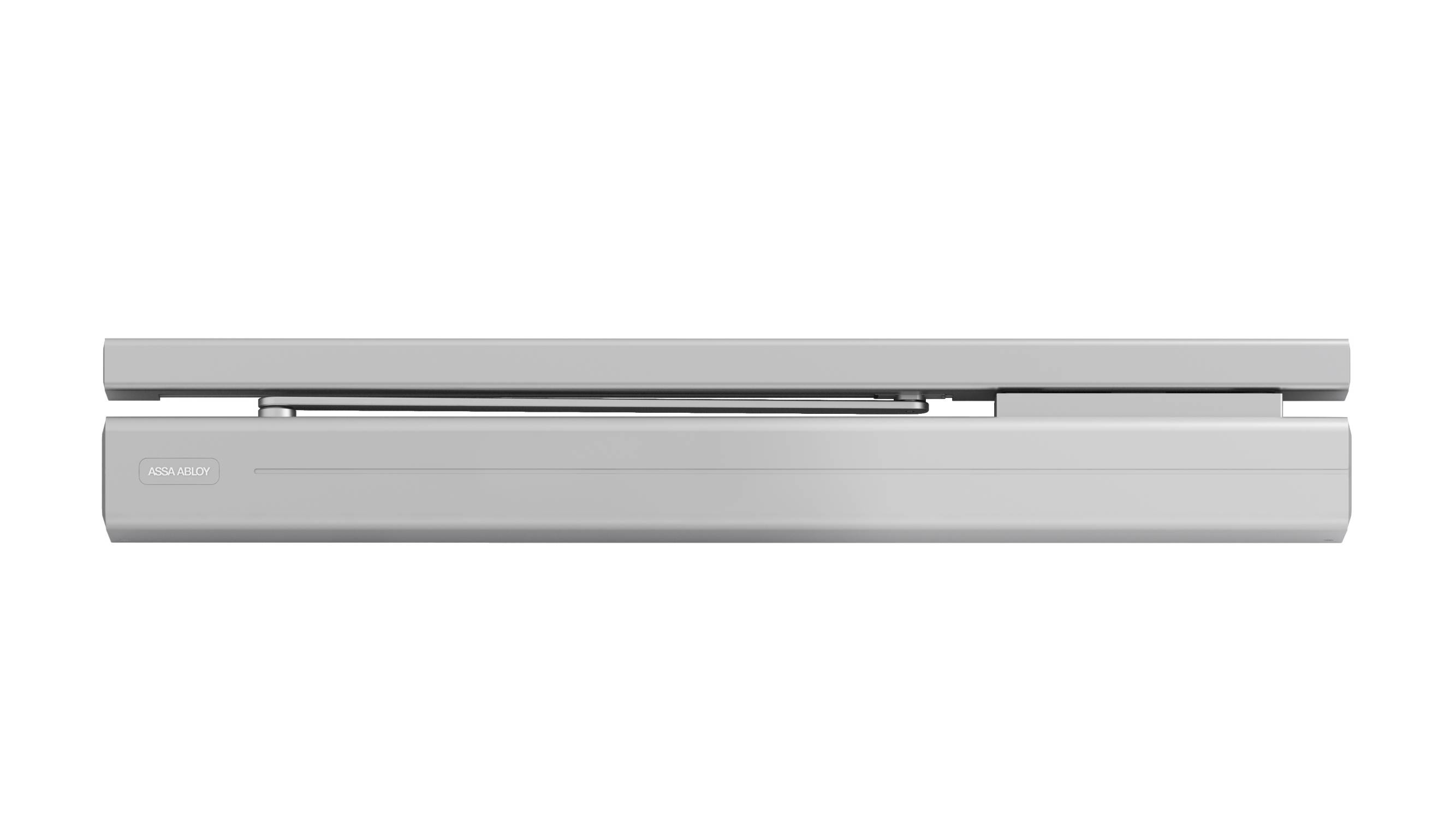

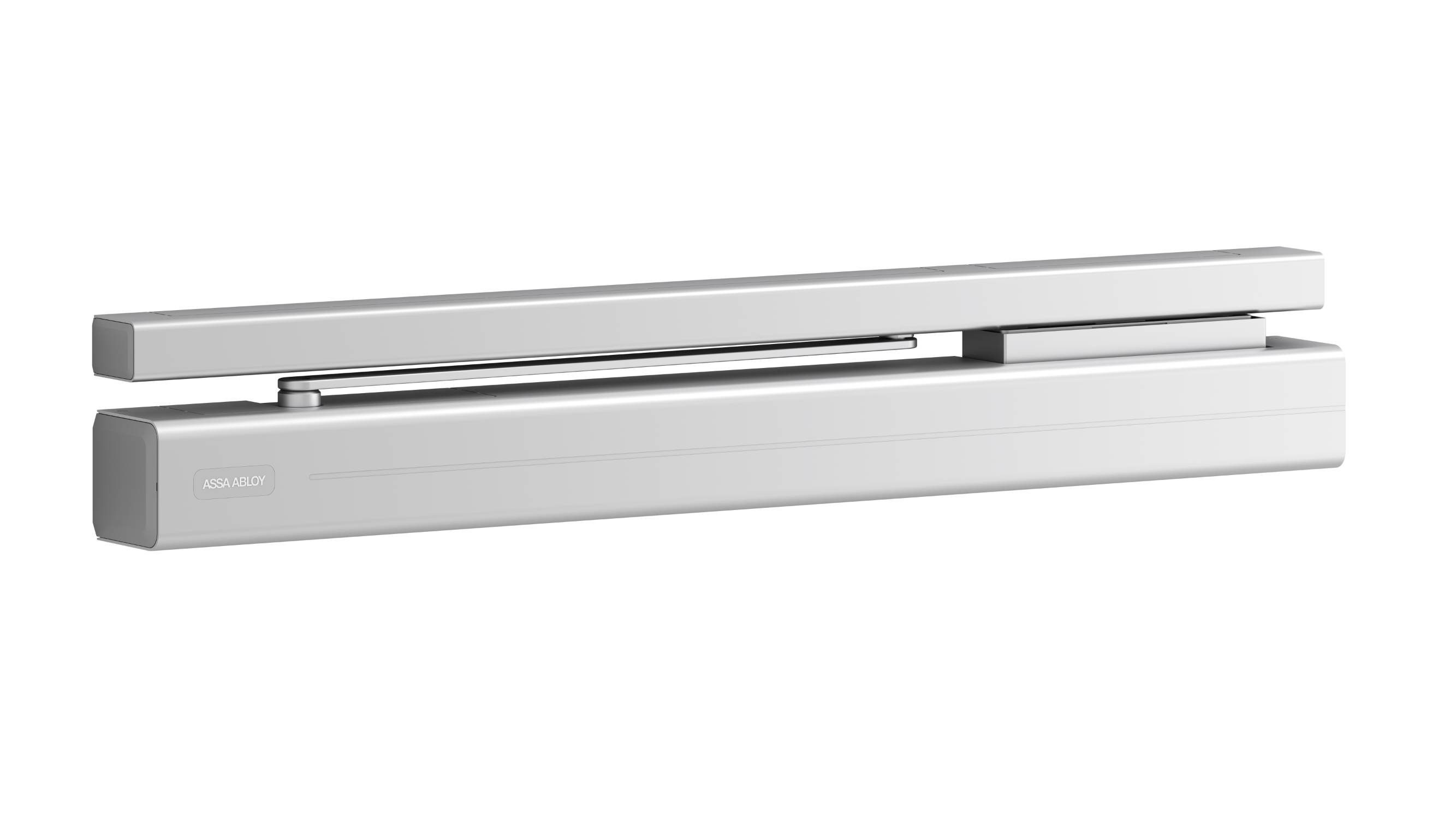

DC700G-FT - Security Door Closer

Name: DC700G-FT - Security Door Closer
Brand: ASSA ABLOY Opening Solutions UK & Ireland
SKU: bmqmdFe6QGzWJ4Hy6hthar

Verified by manufacturer 5 months ago

DC700GFT/BGS OS 12 - DC700GFT Security Door Closer Push Side 12VDC Silver

ASSA ABLOY Opening Solutions UK & Ireland

Security Door Closer with Cam¬Motion® technology.

Jump to:

0845 223 2124 Website

Application

Suitable for retrofit to fire doors with guide rail door closers and fastening using drilling template according to DIN EN 1154.
Suitable for fire and smoke protection doors.

Description

Slide arm closer for single leaf doors 85-1200 mm wide. The product features an extended mounting plate and integrated latch bolt, extended guide rail and an integrated escape door locking system - the DC700 closer and eff 332 electric lock and strike.

General information

Color	Silver Black
Finish	Stainless steel
Material	Stainless steel
Shape	Rectangle
Length	66 mm
Width	727 mm
Height	66 mm
Warranty description	Two year

Uniclass	Pr_30_36_59_15 Controlled door closersPrimary
CAWS	P21/12 Controlled door closers P21/410 Controlled door closers

Specification data - Controlled door closers

Standard	To BS EN 1154.
Classification grades (minimum)	-
Category of use	3.
Durability	8.
Door closer power size	Adjustable 3–6.
Suitability for use on fire and smoke doors	1.
Safety	1.
Corrosion resistance	4.
Form	Overhead, face fixed.
Closer functions	Controlled closing. Latching. Back check.
Materials and finishes	-
Colour	Silver.
Execution	Adjusting controlled door closers.

Sustainability data

Contains Red List materials	No
Country of product manufacture	Germany
Recyclability	70 Manufacturer guidance Metals widely recycled.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	70 %
