DCM-PRO System - Underfloor Heating

Verified by manufacturer 3 months ago

Warmup plc Third party certifications:
  • BEAB

    BEAB

    Certificate type

Electric underfloor heating designed for use over a subfloor prepared for tiling.

Jump to:
+44 345 345 2288 Website

Application

The Warmup DCM-PRO System is designed for use over a subfloor prepared for tiling. The system can be used as a waterproofing layer through the addition of the DCM-PRO waterproofing tape, for installations such as wetrooms or where there will be significant exposure to water.

Description

The electric underfloor heating mat has a strong self-adhesive layer to secure it directly to Warmup insulation boards. Alternatively, it can be affixed to a clean dry subfloor, which has been primed using a styrene-butadiene rubber (SBR) primer (ratio 1:4). The mat is available in 1 m² sheets or 15 x 1 m rolls, which makes installation quick and easy whilst ensuring precision is maintained. The mat can be easily trimmed using a utility knife.


The 4.5 mm multi-strand, dual-core heating cable, is insulated with an advanced fluoropolymer making it exceptionally tough and easy to tile over. It is easily clipped into the DCM-PRO mat by gently pressing it in between the castellations. The cable can be spaced at 60 mm, 90 mm and 120 mm depending on power requirements.

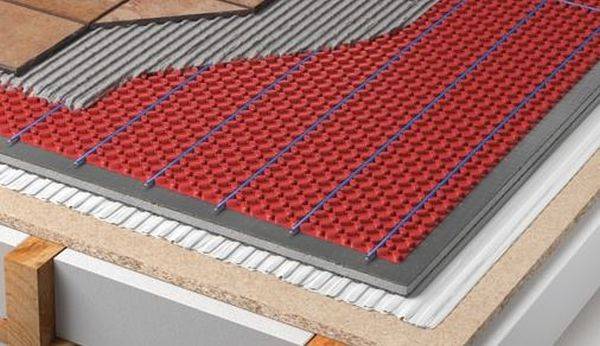

System build-up:

  • Floor finish.
  • Tile adhesive or levelling compound.
  • Warmup DCM-PRO mat.
  • Warmup DCM-PRO cable.
  • Warmup coated insulation board.
  • Flexible tile adhesive.
  • Subfloor.


Features and benefits:

  • 4.5 mm multi-strand, dual-core heating cable with an advanced fluoropolymer inner insulation making it exceptionally tough and easy to tile over.
  • Patented self-healing decoupling layer is proven to protect tiled floors from cracking.
  • Reduced installation costs, by comparison to similar products.
  • Pressure-sensitive adhesive securely binds the mats to the floor keeping them flat for fast and secure installation.
  • BEAB Approved and CE marked meeting the highest safety standards for ultimate peace of mind.
  • Can use the 4iE Smart WiFi thermostat (see separate product).
  • Lifetime warranty and SafetyNet installation guarantee.

General information

Color

Red

Material

Polypropylene

Shape

Rectangle

Length

14250 mm

Guidance for specification option:

Roll - 14250mm

985 mm

Guidance for specification option:

Mat - 985mm

Width

985 mm

Guidance for specification option:

Roll - 985mm

741 mm

Guidance for specification option:

Mat - 741mm

Height

5.8 mm

Guidance for specification option:

Peel and Stick - 5.8mm

6.1 mm

Guidance for specification option:

Fleece - 6.1mm

Warranty description

Lifetime

Uniclass

Ss_60_40_92_27 Electric underfloor heating systemsPrimary

CAWS

T90/478 Underfloor electric heating cables

T90/479 Underfloor electric heating mat

Specification data - Electric underfloor heating systems

Heating elements

Cable.

Guidance for specification option:

  • Operating voltage 230 V AC: 50Hz.
  • IP rating: IPX7.
  • Colour: Blue.
  • Output rating: 150 W/m² (three castellations - 91.8 mm).
  • Inner insulation: Ethylene tetrafluoroethylene (ETFE), Outer insulation: Polyvinyl chloride (PVC).
  • Installation temperature: 5°C (minimum).
  • Connection: 3 m long 'coldtail' connection.

Mat.

Guidance for specification option:

  • Thickness 5.5 mm.
  • Composition: Polypropylene membrane with self-adhesive backing.
  • Colour: Red.

Controls

-

Controllers

6iE Smart WI-Fi Thermostat.

Guidance for specification option:

The 6iE Smart WiFi Thermostat is the world’s first underfloor heating controller with a Smartphone touchscreen. It features advanced technology to maximise on the energy-efficiency of a Warmup system – helping to reduce energy bills.

Size

DCM-M-1 (1 m² sheet).

DCM-M-15 (15 x 1 m roll).

Cable

Guidance for specification option:

DCM-PRO Cable:

  • DCM-C-1: Power: 150 W. Load: 0.6 A. Cable length: 10.9 m.
  • DCM-C-1.5: Power: 225 W. Load: 0.9 A. Cable length: 16.3 m.
  • DCM-C-2: Power: 300 W. Load: 1.3 A. Cable length: 21.8 m.
  • DCM-C-2.5: Power: 375 W. Load: 1.6 A. Cable length: 27.2 m.
  • DCM-C-3: Power: 450 W. Load: 1.9 A. Cable length: 32.7 m.
  • DCM-C-3.5: Power: 525 W. Load: 2.2 A. Cable length: 38.1 m.
  • DCM-C-4: Power: 600 W. Load: 2.5 A. Cable length: 43.5 m.
  • DCM-C-4.5: Power: 675 W. Load: 2.8 A. Cable length: 49.0 m.
  • DCM-C-5: Power: 750 W. Load: 3.2 A. Cable length: 54.4 m.
  • DCM-C-6: Power: 900 W. Load: 3.8 A. Cable length: 65.3 m.
  • DCM-C-7: Power: 1050 W. Load: 4.4 A. Cable length: 76.2 m.
  • DCM-C-8: Power: 1200 W. Load: 5.0 A. Cable length: 87.1 m.
  • DCM-C-9: Power: 1350 W. Load: 5.7 A. Cable length: 98.0 m.
  • DCM-C-10: Power: 1500 W. Load: 6.3 A. Cable length: 108.8 m.
  • DCM-C-12: Power: 1800 W. Load: 7.6 A. Cable length: 130.6 m.
  • DCM-C-14: Power: 2100 W. Load: 8.8 A. Cable length: 152.4 m.
  • DCM-C-16: Power: 2400 W. Load: 10.1 A. Cable length: 174.1 m.

For information on resistance and heated area at different spacings (m²) consult technical literature.

Insulation board

INSBOARD6MM.

Guidance for specification option:

Thickness: 6 mm. R-value: 0.16 m²K/W.

INSBOARD(PK1).

Guidance for specification option:

Thickness: 10 mm. R-value: 0.28 m²K/W.

INSBOARD20MM.

Guidance for specification option:

Thickness: 20 mm. R-value: 0.58 m²K/W.

INSBOARD30MM.

Guidance for specification option:

Thickness: 30 mm. R-value: 0.88 m²K/W.

INSBOARD40MM.

Guidance for specification option:

Thickness: 40 mm. R-value: 1.20 m²K/W.

Show more

Manufacturer guidance

  • Size (w x h): 600 x 1250 mm.
  • Warmup® Insulation Boards are water resistant, insulated tile backer board made of extruded polystyrene, faced on both sides with a fibreglass mesh embedded into a thin cement polymer mortar.
  • They have high thermal insulation properties for energy efficiency and an added benefit of sound absorption.
  • Warmup Insulation Boards have zero Ozone Depletion Potential (ODP) and a Global Warming Potential (GWP) of less than 5.


Accessories

DCM-E-25 perimeter strip.

DCM-T-50 waterproofing tape.

DCM-R-I internal corner.

DCM-R-E external corner.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

N/A - Measured internally under greenhouse protocol guidance.

Recyclability

Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

BEAB

BEAB

Intertek BEAB Mark Certificate

Literature

DCM-PRO Technical Specification

DCM-PRO Technical Specification
