Debonding Sleeves - For Use With Movement Ties
Verified by manufacturer 24 days ago
V36-100-PDBS (20 x 100 mm)
V36-100-PDBS (20 x 100 mm)

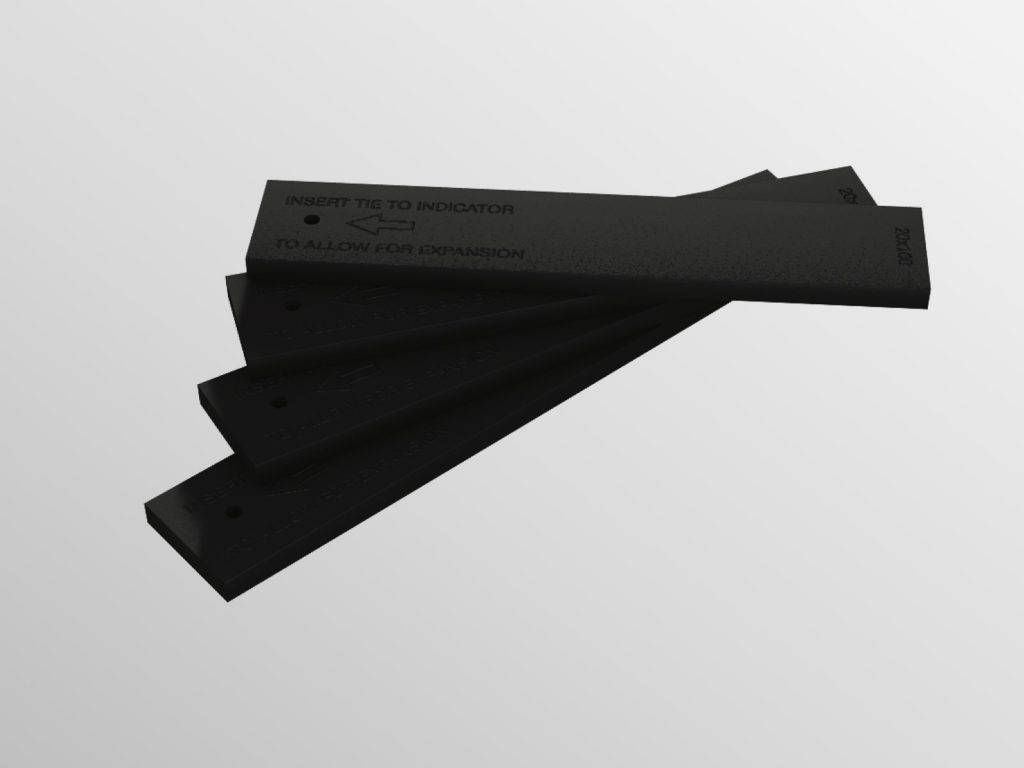

Debonding sleeves to allow for movement of ties.
Application

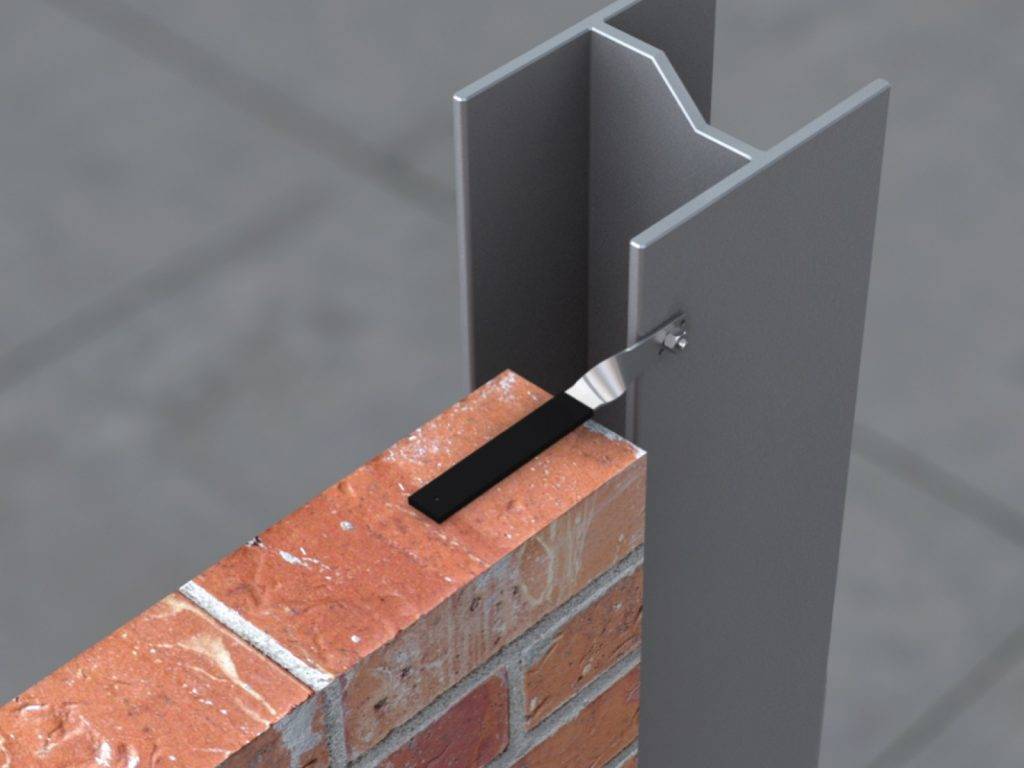

- Allows masonry walls to be tied back to other structures, (steelwork or masonry) providing restraint in one direction but allowing movement in the other.
- Also used in movement joints where they occur in long runs of brickwork, the ties span over a vertical joint preventing vertical movement but allowing horizontal expansion and contraction.
Description
Debonding sleeves to allow for movement of ties.
Features and benefits:
- Compatible with Vista movement ties.
- Sleeves should have a 10 mm gap left at end to allow for movement once installed.
- 20, 25 and 30 mm-wide options.
- Note that a 25 mm-wide sleeve is required for channel ties.
- Ties to be specified separately.
General information
Color | Black |
Length | 100 mm 120 mm 150 mm |
Width | 20 mm 25 mm 30 mm |
Uniclass | |
CAWS | F30/245 Channel/ slot ties F30/41 Channel/ slot ties F30/282 Slip ties |
Specification data - General-purpose slip ties
Additional requirements | |
Shear load capacity | Manufacturer's standard. |
Debonding sleeves | V36-100-PDBS: 20 x 100 mm. Manufacturer guidanceSupplied in bags of 250. |
Fixing | All 10 mm gap at the end to allow for movement once installed. |
Purpose | Movement ties. Guidance for specification option: To be specified separately. |
Sustainability data
Country of material origin | United Kingdom |
Literature
Wall Ties Brochure
